Straining to hear the TV dialog over booming bass.
Cringing at shrill, echoey surround effects.
Does your home theater sound make you turn down the volume?
Proper acoustic treatment transforms audio quality for an immersive listening experience.
Discover the ideal placement and materials for optimizing your space.
Room acoustics often get overlooked when designing home theaters.
But uncontrolled sound reflections create a myriad of issues like standing waves, flutter echo, and excessive reverb.
Strategically placed acoustic panels absorb problematic frequencies and scatter sound for balanced audio.
Follow acoustic design fundamentals, and your home theater will become an incredible sounding sanctuary for films and music.
Let’s dive into where to place acoustic panels in a home theater to achieve superb sound quality.
Why Is Acoustic Panel Placement Important for Home Theaters?
Having proper acoustic treatment in a dedicated home theater room is extremely important for creating the most immersive and enjoyable listening experience possible.
Acoustic panels, bass traps, and diffusion panels help control several issues like standing waves, flutter echo, room modes, and bass buildup that can negatively impact sound quality if left untreated.
When soundwaves interact with hard, reflective surfaces like walls and ceilings, it creates messy audio reflections and exaggerated reverberation that muddies the clarity and realism of your home theater sound.
Strategically placed acoustic treatment absorbs and diffuses sound energy to reduce these negative effects for a smooth, balanced listening environment.
Treating your home theater’s acoustics allows you to get the most out of your surround sound system and audio-visual equipment investments.
An optimized acoustic space minimizes distortion and helps achieve clear, detailed sound across frequency ranges for both movies and music playback.
This enhances critical elements like dialog intelligibility, stereo imaging, bass impact, and surround sound immersion.
What Are the Main Acoustic Issues in Home Theaters?
Several problematic acoustic phenomena can occur in a home theater due to soundwave interactions within the enclosed room space.
Here are some of the main issues:
Standing Waves:
Standing waves, also known as stationary waves, are caused by sound waves reflecting off the room’s surfaces and interfering with each other in fixed patterns.
This creates spikes and dips in the frequency response at certain locations, along with uneven bass distribution and a degraded soundstage.
Standing waves mostly impact lower frequencies and can make bass sound boomy, muddy, or ill-defined.
Flutter Echo:
Flutter echo refers to a rapid repeating echo that happens when sound bounces back and forth between parallel reflective surfaces like walls or between the ceiling and floor.
Hard surfaces that are directly parallel create strong flutter echo effects.
It manifests as a distracting fast echo heard after original sounds.
This makes audio sound excessively bright and harsh.
Room Modes:
Room modes are natural resonances that occur based on the room’s physical dimensions and shape.
They cause peaks and valleys at certain low frequencies related to the room’s geometry.
Room modes contribute to uneven, boomy bass response by exaggerating some low end frequencies and canceling out others entirely.
Bass Buildup:
Bass buildup occurs when low frequency soundwaves get trapped in corners or other bounded areas and reinforce themselves.
This is another factor that can make bass sound louder, bloated and uncontrolled.
Bass buildup often happens at the rear wall/corners behind the listening position.
Acoustic panels help absorb and diffuse sound energy to reduce the audible effects of these phenomena for a smoother, more balanced listening experience.
Strategic placement of acoustic panels are key for controlling the low, mid and high frequency issues in a home theater space.
Where Should You Place Acoustic Panel in a Home Theater?
Strategically placing acoustic panels in key areas around your dedicated home theater room is crucial for addressing sound issues.
The front, side, rear, and ceiling walls all require treatment in order to fully optimize your listening environment.
Follow acoustic science best practices on absorption placement for fantastic audio results.
Where Should You Place Acoustic Panels on the Front Wall?
The front wall in a home theater is one of the most important areas to treat with acoustic panels.
Placing absorption panels on that wall directly behind the screen helps control early first reflections for greater audio clarity.
The sound coming from the left, center and right screen channels bounces off the screen surface and back toward the listening position.
These early reflections can create discordant echoes that muddy and smear the incoming audio signal.
This is especially detrimental to clear dialog intelligibility from the center channel.
Installing acoustic panels on the front wall absorbs these early first reflections, helping to tighten, clean up, and clarify both speech and effects sounds.
This allows you to better hear nuanced details and dialog clearly.
Spreading the panels evenly across the front wall space creates symmetrical absorption for the best results.
For in-wall speakers, loosely packing insulation inside the front wall cavity provides absorption too.
Blankets or rigid fiberglass panels work well here.
You can also install wood slats or electrorheological acoustic tiles on the front wall for a diffusive surface that scatters sound in multiple directions.
Where Should You Place Acoustic Panels on the Side Walls?
Treating the side walls of your home theater is critical for improving soundstage imaging and creating a more enveloping surround sound experience.
The key areas to place acoustic panels on the side walls are the first reflection points.
First reflection points are where soundwaves bouncing off the front speakers first meet the side walls at an angle of incidence.
This creates distracting sidewall reflections that can negatively impact stereo imaging.
Sounds collapse inward and the soundstage narrows, with audio crowded towards the center rather than extending smoothly outward.
By mounting acoustic panels at the first reflection points on the side walls, you can absorb these problem reflections for a wider, more spacious soundstage.
Panels diffusely scatter the sideways bouncing sound energy rather than overly reflecting it.
This prevents excessive stereo image shifting and blurring for more precise imaging, helping to achieve a seamlessly immersive surround soundfield.
Spreading panels out along the length of the side walls maintains consistent absorption and diffusion.
Where Should You Place Acoustic Panels on the Rear Wall?
The rear wall is prime real estate for acoustic panel placement in a home theater.
Low frequencies from subwoofers and other speakers often build up excessively at the back wall as soundwaves resonate in the space.
This creates boomy, muddy, uncontrolled bass issues.
Installing acoustic panels on the rear wall helps absorb and minimize this problematic low-frequency buildup by reducing sound reverberation in the rear space.
Panels also help with standing waves and flutter echo which resonate between the front and back walls.
Spreading panels across the entire rear wall provides the most even bass control.
Prioritize the rear corners where low end tends to gather the most.
Mounting panels 2-4 inches off the wall leaves an air gap for deeper bass absorption.
The rear wall is also responsible for late reflections back towards the listening position.
Absorbing these late reflections with acoustic panels prevents sound from sounding overly bright or harsh, for a smoother treble response.
Where Should You Place Acoustic Panels on the Ceiling?
The ceiling plays a critical role in home theater acoustics, yet often gets overlooked when it comes to treatment.
Installing acoustic panels on the ceiling helps manage overhead sound reflections for greater immersion and more dispersed surround sound.
One of the biggest benefits of ceiling panels is reducing flutter echo between the ceiling and floor.
Flutter echo causes distracting repetition of sound in a space.
Angled ceiling panels help break up this problematic echo by scattering and diffusing sound.
Ceiling panels also prevent any harsh reflections that could interfere with surround speaker imaging.
This helps envelop the listener smoothly in surround effects without excessive brightness.
Spreading panels evenly across the ceiling space maximizes flutter echo control and more natural overhead sound transmission.
What Are the Benefits of Polyester Acoustic Panels?
Polyester is an excellent non-woven fabric material choice for acoustic panels amongst the other type of acoustic panels.
Here are some key benefits provided by polyester acoustic panels:
How Thick Are Polyester Acoustic Panels?
Our polyester acoustic panels utilize an ultra-slim 9mm thickness.
This thin profile maximizes placement flexibility, allowing the panels to be mounted flush on walls and ceilings where space is limited.
Many rooms lack the depth to accommodate thicker panels.
Despite the thin construction, these lightweight polyester panels still provide ample sound absorption across the important mid and high frequency ranges thanks to the fine porous polyester fiber material.
What Acoustic Properties Do Polyester Panels Have?
Polyester fiber has an open, woven cell structure that traps sound waves as they enter the material.
This converts the acoustic energy into minute amounts of heat due to the friction, rather than excessively reflecting the sound back into the room.
Polyester acoustic panels achieve an exceptionally high noise reduction coefficient (NRC) rating of 0.9 for class A fire-rated sound absorption.
This means 90% of mid and high frequency sound energy striking the panel gets absorbed rather than reflected.
The panels are also Class 1 flame retardant, satisfying building code safety requirements while still remaining highly acoustically absorptive.
Polyester acoustic panels absorb sound efficiently across the 500-4000 Hz frequency range.
Where Can You Use Polyester Acoustic Panels?
A major plus of polyester acoustic panels is they can be utilized in virtually any location in a home theater.
Their ultra-slim profile lets them fit into tight spaces and cover awkward angles.
Polyester panels are lightweight and easy to install too.
Tack them up on walls, place them across ceilings, fit them into corners, or arrange them at precise first reflection points off the front speakers.
You can also build custom polyester panel configurations.
What Are the Advantages of Polyester Acoustic Panels?
In addition to excellent mid/high frequency sound absorption in a slim form factor, polyester acoustic panels provide other helpful benefits:
- Lightweight and durable construction – easy to handle and resists wear over time
- Smooth, soil resistant material cleans easily with just water and soap
- Can be custom printed with any graphics, photography or colors
- Attractive surface diffuses light nicely for reduced visual fatigue
- Available in a range of frameless mounting options for flexible integration
- Cost effective price point while still delivering premium acoustic control
Overall, polyester is a great acoustic panel material choice for home theaters.
The combination of performance, looks and value offered by polyester acoustic panels is hard to beat.
How Do You Calculate Your Acoustic Treatment Needs?
Determining the number of acoustic panels to use for acoustic treatment required for your specific home theater space is important for creating the ideal acoustic environment.
Here are some guidelines on calculating acoustic panel needs:
How Much Square Footage Should You Cover?
A good rule of thumb is to cover 25% to 50% of your total wall and ceiling space with acoustic panels as a starting point.
For dedicated home theater rooms where audio performance is the priority, aiming to treat 40% to 60% of the room is ideal.
First calculate the room’s total square footage by multiplying the length x width for each wall, ceiling and other surfaces.
Then multiply the total square footage by your desired percentage of coverage.
This gives you your target area for acoustic panel installation.
How Can You Measure Your Room’s Reverberation?
Using a reverb time calculator is helpful for analyzing your room’s amount of reverberation, both before and after installing acoustic treatment.
This tells you how much your panels are effectively absorbing sound.
To use the calculator, make a sharp hand clap in the room and record the time it takes for the clap’s sound to decay by 60dB.
The longer the decay time, the more reverberant the space.
Next input your room’s volume along with the decay time into the reverb calculator to determine the RT60 measurement – the time for sound to decay by 60 decibels.
Compare new RT60 times after adding treatment to track improvements.
What’s the Clap Test for Echo?
You can also assess potential problematic flutter echo issues using a simple clap test.
Stand at the listening position and clap your hands loudly, then carefully listen if you hear a rapid repeating echo afterward.
If a fast multiplying echo occurs, that indicates a flutter echo from parallel hard surfaces like walls or the ceiling and floor.
The strength and duration of the echo impressions show how severe the issue is.
Strategically placing acoustic panels between the parallel surfaces causing flutter echo will help absorb and break up the repetitive sound reflections.
Do the clap test before and after treatment to hear the improvement.
What Are the Best Tips for Installing Acoustic Panel?
Optimal placement of your acoustic panels is important for achieving optimal sound absorption and aesthetics.
Follow these tips:
What’s the Ideal Placement and Spacing of Panels?
When deciding on acoustic panel placement, follow reflected sound paths from your speakers to your listening position.
Mark key first reflection points on surrounding walls using a mirror – this is where panels go.
Space panels out evenly across surfaces, keeping them 2 to 4 feet apart.
Gaps prevent dense clustering and allow panels to work most effectively, as low frequencies travel farther than high frequencies when diffusing.
Maintaining coverage symmetry optimizes decay time and dispersion.
Follow the manufacturer’s suggested spacing for corner bass traps and other specialty panels.
What Mounting Height Should You Use?
In general, mounting acoustic panels 2-3 feet above ear height at the key listening position provides great coverage for mid and high frequencies.
Add panels lower at standing height and higher to catch reflections when moving around the room.
For corner bass traps, floor-to-ceiling mounting maximizes low-end control.
Ceiling panels are best mounted in rows spaced apart, rather than randomly.
Experiment with heights to find what works for your room.
Should You Leave an Air Gap Behind Panels?
Leaving a 1 to 4-inch air gap between panels and walls boosts low-frequency absorption.
Sound waves permeate deeper into the panel through the gap.
Use spacers like wood slats to maintain the ideal air space.
Corner bass traps in particular benefit from an air gap – mounting them 5-6 inches off intersecting walls and corners maximizes diffusion.
However, flush mounting panels can still work effectively depending on placement.
Should You Mount Panels Angled or Flat?
Angled panels disperse reflected sound in scattered directions rather than aiming it back into the room.
This adds acoustic diffusion for enhanced control.
Angled panels also avoid a flat, dominated look.
However, angled panels have a more visually conspicuous profile.
For subtle integration, flat mounted panels blend better into the background.
Combining both flat and angled panel mounting provides an optimal blend of diffusion and aesthetics.
What Aesthetic Considerations Are There for Acoustic Panels?
While acoustic performance is the top priority, you also want your panels to integrate into your room’s design aesthetic for visual cohesion.
Here are some acoustic panel styling tips:
How Can You Blend Panels Into Your Decor?
Using fabric coverings on panels that match your home theater’s existing color scheme and textures will help them blend in seamlessly.
Keeping panel edges streamlined without thick frames also creates a clean, integrated look.
Strategic placement in transition areas, corners, and above sightlines allows panels to disappear into the background.
Match your screen wall fabric to the acoustic panels for a cohesive unified feel.
What Fabric Colors and Prints Work Best?
For a natural, neutral look, earth tones and lighter shades like gray, tan and cream are great choices for acoustic panel fabric.
These colors nicely integrate into many room designs.
Bolder graphic prints or textures make the panels a decorative focal point.
Darker solid colors tend to recede more into the background, with black being the most inconspicuous.
Custom printed photographic artwork panels offer unlimited possibilities to complement your design vision.
Should You Frame Your Panels?
Adding wood, metal or other framing materials around the panel edges gives them a more polished, finished look.
This frames them like an intentional visual design element.
Simple, thin frames fit most decor aesthetics well.
However, any framing slightly reduces acoustic performance around the material edges.
For maximum sound absorption, frameless panels are ideal.
For a blend, experiment by mixing framed and unframed panels in your space.

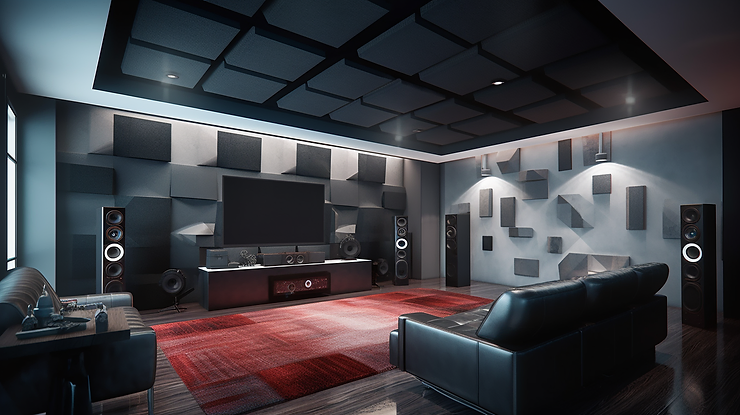

Flat vs 3D Panel Shapes – Which Is Better?
Traditional flat rectangular panel shapes offer full, consistent coverage and are most common.
But 3D geometric panel shapes like triangles, circles, waves, etc provide visual interest and enhanced diffusion as they scatter sound multidirectionally.
Flat panels blend into a wall smoothly, while 3D adds depth and dimension.
Combining both flat and 3D panel types creates balance in acoustic effectiveness and aesthetics.
Also consider placement – 3D shapes work best away from room boundaries.
Conclusion:
Properly treating your dedicated home theater with strategic acoustic panel placement provides immense audio benefits – from tighter, clearer sound to a fully immersive surround experience.
Absorbing early reflections and diffusing problematic frequencies through careful panel positioning on the front, side, rear, and ceiling surfaces enables flawless sound quality.
Polyester panels deliver excellent affordable absorption.
Calculate your needs, follow installation best practices, and select tasteful visual options for the ideal acoustic environment.
When designed with acoustic principles in mind, your home theater will transform into an unmatched soundspace that fully realizes the capabilities of your audio system.
Treating the acoustics elevates the listening experience so you can enjoy movie and music playback as the creators intended.
