Canvas Acoustic Panels: Can a Canvas Print Really Absorb Sound?
If you’re shopping for canvas acoustic panels or eyeing the canvas print already on your wall, everything turns on whether sound can get through the canvas.
Ready-stretched art canvas usually comes primed with gesso and printing canvas comes coated, so the face you’d hang is sealed against the very sound you want it to soak up.
Built the right way, a canvas-style panel can absorb nearly as much as the bare core behind it and still carry your own picture.
This guide uses Owens Corning’s absorption tables, Guilford of Maine’s fabric test and a 1940 Bureau of Standards paint study to show which canvas setups work.
Start with where a canvas panel does its absorbing, because every build, purchase and fix below follows from it.
How Do Canvas Acoustic Panels Actually Work?

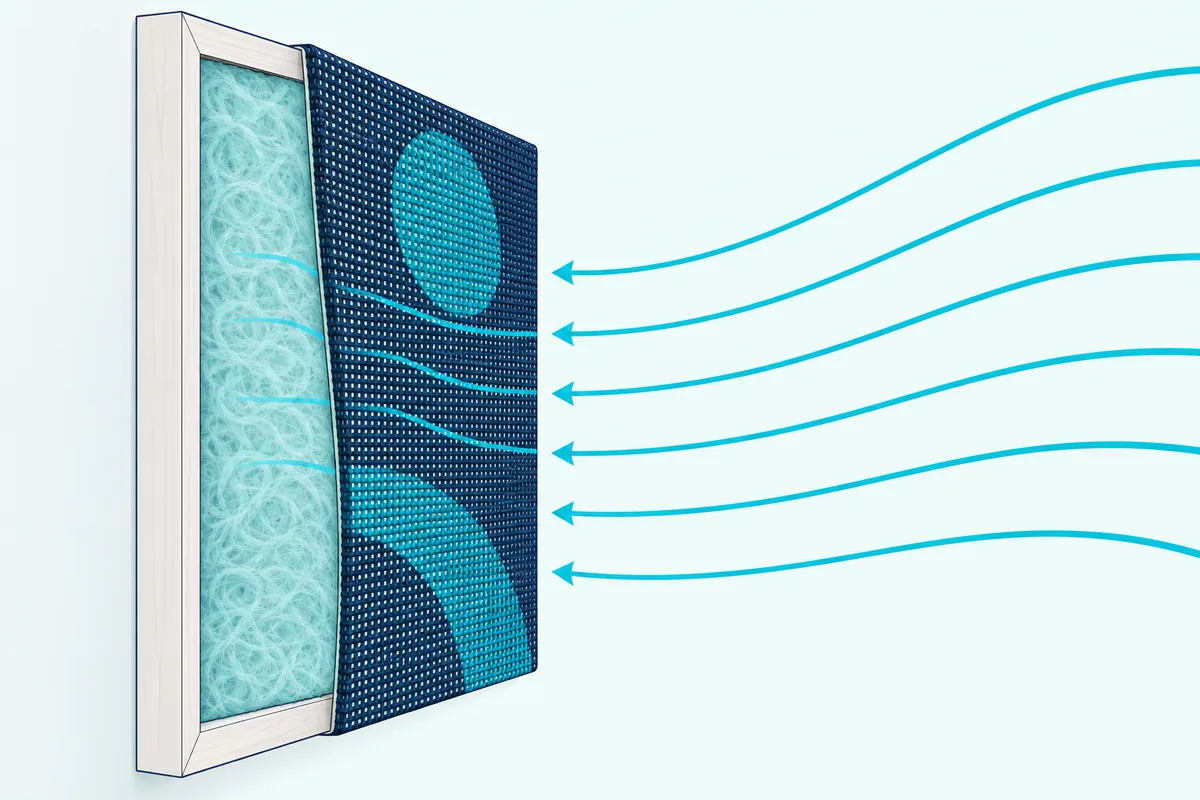

Very little of that absorbing happens in the canvas itself. Canvas acoustic panels work like any fabric-wrapped panel: a porous core behind the face turns sound into heat, while non-porous surfaces such as gypsum board reflect it (USG).
So the face has one job, which is to let sound waves through to the sound-absorbing core. Fabrix, which makes stretch-fabric wall systems, puts it plainly: sound that bounces back off the fabric never reaches the insulation behind it, so it never gets absorbed (Fabrix).
| Canvas setup | What sound meets first | What happens to absorption | Evidence |
|---|---|---|---|
| Primed or painted art canvas over foam | A weave filled with gesso and paint | Reduced, most of all in the treble | Fredrix, Golden and the 1940 paint study |
| Inkjet canvas print with foam behind | A coated poly-cotton face | Reduced in the treble, by analogy with sealed facings | Epson’s canvas, Owens Corning’s faced boards |
| Raw, unprimed canvas over a core | A bare cotton weave | Depends on how open the weave is | Fabrix’s breathe and light tests |
| A picture printed on acoustic fabric over a core | An open polyester weave | Close to the bare core | GIK’s art panels; FR701 fabric at NRC 0.95 against 1.00 bare |

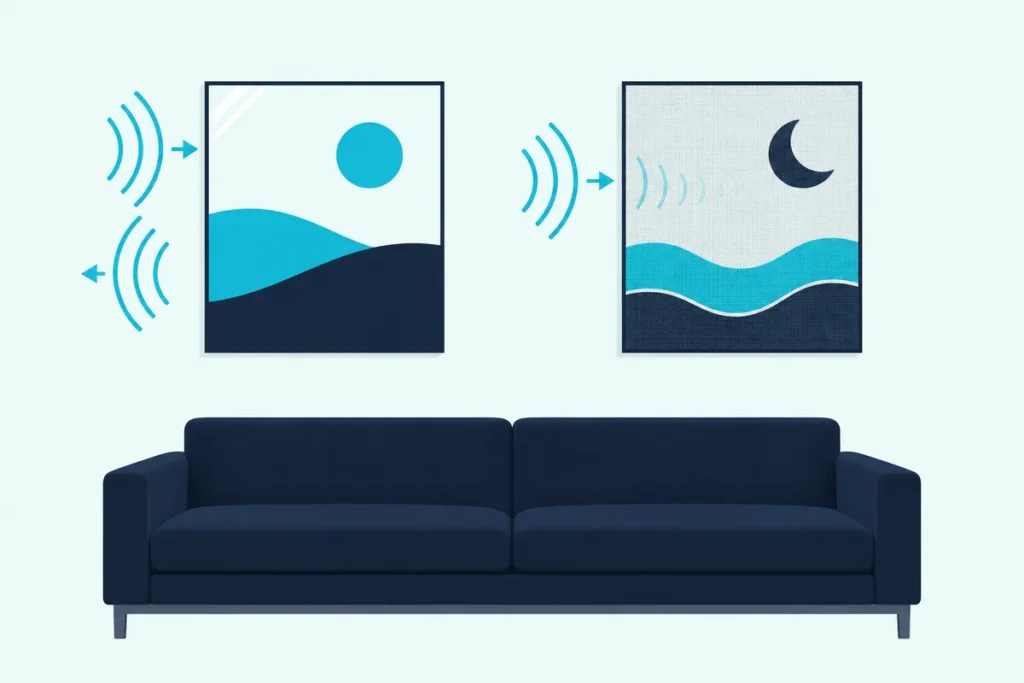

The first two rows describe what most people already own, and they’re why a canvas print rarely fixes an echo or cleans up a recording by itself. The last row is how ready-made acoustic art panels get a picture onto a panel without giving up its absorption.
Does Canvas Absorb Sound on Its Own?
Those four rows all put something behind the canvas, because a canvas alone has almost no material to absorb with. Epson lists its Exhibition Canvas Natural Matte at 19 mil, about half a millimeter thick (Epson).
Kirei’s 9 mm PET felt panel is about 19 times as thick, yet mounted with no air gap it absorbs only 0.14 at 500 Hz and rates NRC 0.35 (Kirei). Even a full inch of Owens Corning 703 fiberglass board absorbs just 0.05 at 125 Hz and 0.26 at 250 Hz (Owens Corning).
A canvas has a small fraction of that depth, so on its own it can’t do a panel’s job. Try this: clap once facing a bare wall and once facing a large canvas print, and listen for whether the ring after the clap changes at all.
The 1940 Bureau of Standards study describes one more way a surface can absorb, by vibrating like a diaphragm, which takes up the most sound at its own natural frequency (National Bureau of Standards). A canvas over a hollow frame may do a little of that, but no canvas maker in this guide publishes where its canvas would peak.
Get Studio Tips Weekly
Join 5,000+ creators getting acoustic treatment advice every week.
No spam. Unsubscribe anytime.Why Does a Primed or Printed Canvas Reflect Sound?

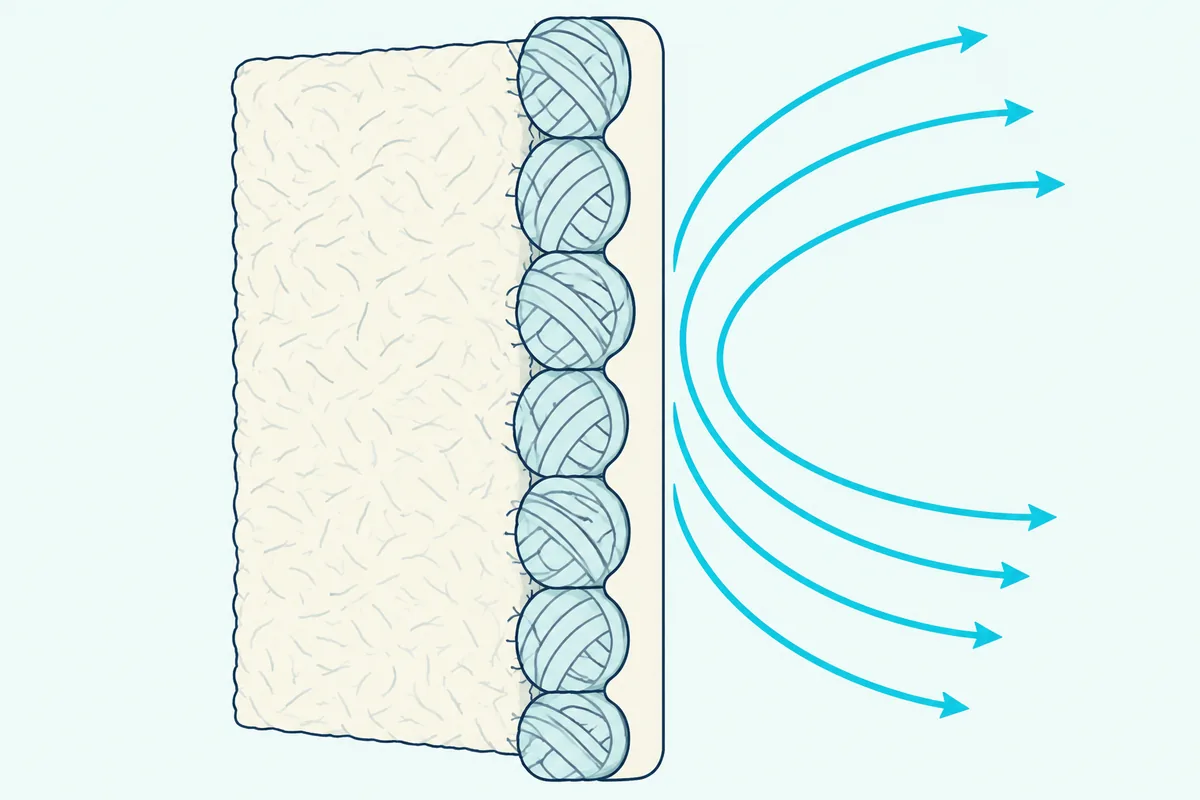

That thinness is only half the problem, because canvas made for painting or printing is usually coated before you ever touch it. Fredrix sells its Red Label canvas at 7 oz raw and 12 oz primed, double-primed with an acrylic gesso, so the coating adds about five ounces for every seven of cotton (Fredrix).
Golden, which makes artists’ gesso, describes it as a ground that seals, protects and gives the surface tooth, and it recommends at least two coats on canvas, the first soaking into the cloth (Golden). Epson’s printing canvas is a polyester and cotton blend that’s specially coated for vivid color, and Epson notes it can be stretched and then coated.
Coatings like these are what the Bureau of Standards measured in 1940. It found that paint which films across a material’s pores cuts its absorption, that the loss shows up first at the higher frequencies, and that a brush costs more absorption than a fine spray.
Sound On Sound’s technical editor, Hugh Robjohns, says the same about paint on acoustic foam: it clogs the open cells and greatly diminishes the mid and high absorption (Sound On Sound). A gessoed or ink-coated canvas puts that kind of film between the room and whatever you hang behind it.
What Does a Sealed Face Do to the Panel Behind It?
No canvas or print maker in this guide publishes a test of its canvas over foam, but Owens Corning’s data sheet shows what a sealed face does to a good absorber. It sells 703 board bare, with an FRK facing (aluminum foil over kraft paper) and with an ASJ Max facing (a polymer film), and its sound absorption table covers all three on a solid backing.
| 2 in Owens Corning 703 | 125 Hz | 500 Hz | 2,000 Hz | 4,000 Hz | NRC |
|---|---|---|---|---|---|
| Unfaced | 0.15 | 1.14 | 1.02 | 1.00 | 1.00 |
| FRK foil facing | 0.39 | 1.01 | 0.51 | 0.32 | 0.75 |
| ASJ Max film facing | 0.38 | 1.00 | 0.33 | 0.17 | 0.65 |
The sealed faces cut the 4,000 Hz figure from 1.00 to 0.32 and 0.17, while the 125 Hz figure rose, which fits the diaphragm effect the 1940 study describes. Guilford of Maine’s fabric test shows the same pattern for coverings: a latex-backed fabric in front of a near-perfect absorber fell to about 0.5 at 2,000 Hz, read from its chart, while FR701 panel fabric kept that absorber at NRC 0.95 against 1.00 bare (Guilford of Maine).
That’s the honest expectation for a sealed canvas print with foam behind it: a duller top end than the bare foam and perhaps a little help low down. The fix isn’t a better canvas, it’s a face that breathes.
Can You Stuff Foam Behind a Canvas Print?
That foam-behind-the-print build is what the canvas tutorials ranking for this question describe. An Instructables project from 2010 fills 1.5 in deep art canvases with eggcrate foam, staples paper over the back and says the paint on the front has little effect, but it shows no measurement (Instructables).
USA on Canvas, a print shop, describes the same idea with its own prints: order the 1-1/2 in gallery wrap, fit egg-crate foam between the stretcher bars and tape or staple paper across the back (USA on Canvas). Neither page says how much of the echo the finished piece removes.
Given the faced-board numbers above, expect such a piece to do less to dampen the bright, slappy part of an echo than the same foam with nothing in front of it. If you want the foam to earn its place, swap the face: Sound On Sound’s fix for ugly foam is a simple wooden frame with a thin, acoustically transparent cloth stretched over it, which it says has a negligible effect on the foam.
If your panels already exist and you only want them out of sight, Burton’s roundup of ways to hide acoustic panels weighs wall-colored fabric, printed faces and ceiling clouds instead.
Is Raw Canvas Acoustically Transparent?
Swapping the face raises the question of whether plain, unprimed canvas could be that breathable face. Sometimes, if the weave is light and open enough, and the only way to know is to test the piece you have.
Big Duck Canvas lists 7 oz single-fill duck, a 10 oz unprimed artist canvas and a range of 10 oz ducks on its page of fabrics for acoustic panels, and says burlap or lightweight cottons are the most popular choices (Big Duck Canvas). It publishes no acoustic test for any of them.
Fabrix’s list of fabrics that aren’t acoustically transparent includes any thick fabric with a high thread count, and it suggests two checks you can do at home. Hold the fabric to your mouth and breathe through it, then hold it up to a bright light: the easier air and light pass, the more acoustically transparent it is.
Run both tests on a scrap next to a fabric sold as acoustically transparent, which is the standard your canvas has to match. For the fabrics that pass, Burton Acoustix’s fabric comparison weighs burlap, cotton, polyester and speaker cloth against each other.
What Makes a Store-Bought Canvas Panel Absorb?
Those same tests explain what the art panels that work do differently: they print on a face that sound can pass through. GIK says its acoustic art panels use the same core as its plain panels, rates them NRC 1.05 and calls its print process acoustically transparent, so the picture doesn’t reduce their performance (GIK Acoustics).
GIK uses Camira’s Cara fabric as standard across its products, likens it to Guilford’s FR701, recommends 300 dpi artwork at full panel size and says its 2 in panel absorbs down to about 200 Hz, with thicker versions reaching lower.
Acoustimac builds its AcousticART panels on Owens Corning 703 as standard and takes uploaded artwork at a maximum print resolution of 150 dpi (Acoustimac). Soundproof Direct describes dye-sublimation, which prints a picture onto acoustically transparent fabric so it comes out looking like a photo on paper (Soundproof Direct).
When a listing calls itself acoustic canvas, look for three things: a named core and thickness, an NRC backed by a lab or test standard, and a fabric face. GIK cites tests at the University of Salford to ISO 354, and Acoustimac says Riverbank tests its panels and bass traps.
How Do You Make a DIY Canvas Art Acoustic Panel?

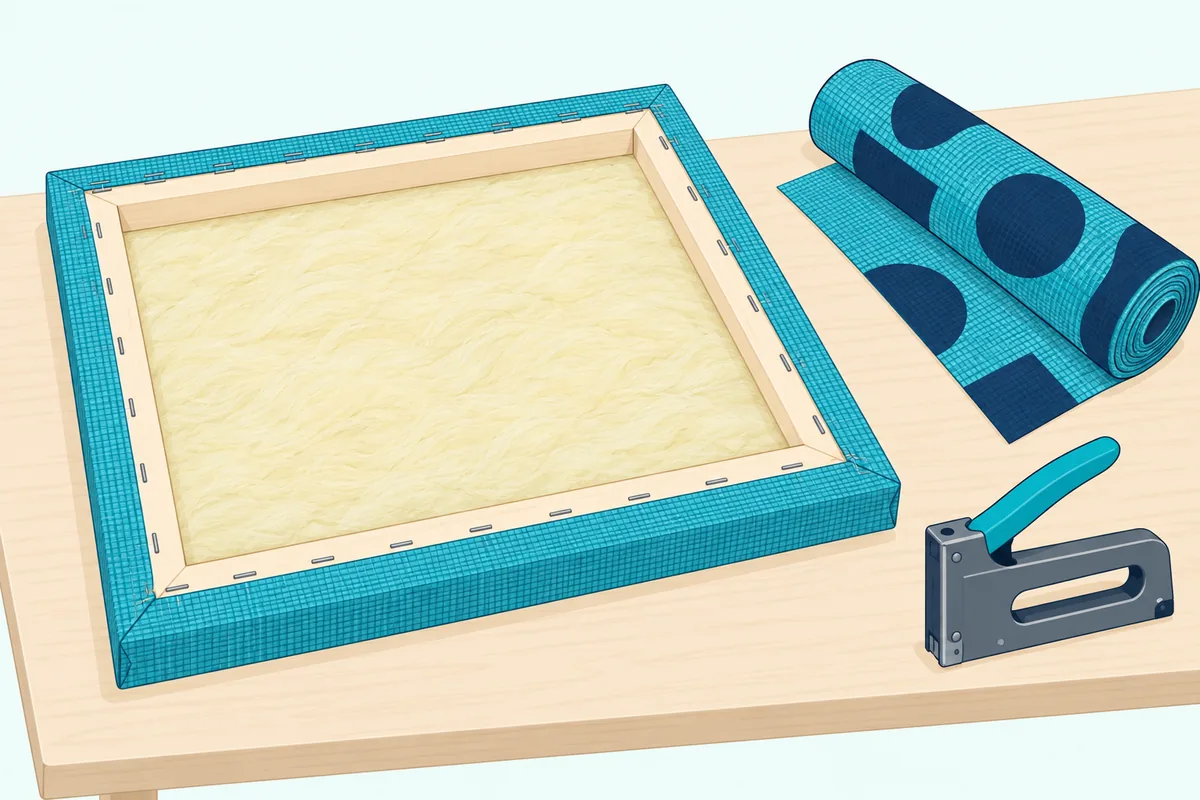

If none of those panels carries the picture you want, build the same thing yourself: a frame, a real core, a breathable face with your picture on it and a gap behind it.
- Frame. Use a deep stretcher frame or a box of 1x lumber at least 2 in deep, since Owens Corning rates 703 board NRC 0.70 at 1 in but 1.00 at 2 in.
- Core. Fit rigid fiberglass or mineral wool board snugly inside, the kind of core Acoustimac builds its art panels on.
- Face. Print your picture on acoustically transparent fabric, or use a plain fabric that passes the breathe and light tests, and stretch it over the frame like a canvas, stapling at the back.
- Gap. Install it slightly off the wall, since Kirei’s 9 mm felt panel rises from NRC 0.35 mounted flat to 0.55 with a 20 mm gap and 0.70 with a 50 mm gap.
Skip the gesso and varnish, the coatings that turned the canvas into a reflector in the first place. If you’d rather paint the picture yourself, the 1940 study’s advice still holds: thin coats, sprayed rather than brushed, that don’t film over the weave.
Burton’s step-by-step DIY panel build covers cutting the frame, handling the insulation safely and folding clean corners.
Where Should Canvas Acoustic Panels Hang, and How Many?

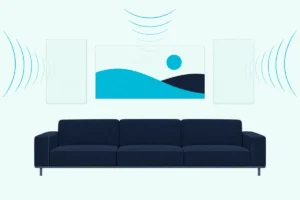

A finished panel does the most good where sound first bounces, which is the same place a store-bought one would go. Acoustimac points panels at the first reflection points of a listening room and recommends covering at least 25 to 30% of a room’s hard surfaces (Acoustimac).
In a 10 by 12 ft bedroom with 8 ft ceilings, the walls alone come to 352 sq ft, so a quarter of them is 88 sq ft, or 11 panels of 2 by 4 ft. One canvas over the sofa is a start, but it isn’t a treatment on its own.
Put the picture panels where you’d hang art anyway, in a living room or a home studio, and fill the rest with plain panels in a matching color.
Will Canvas Acoustic Panels Soundproof a Room?
Even at full coverage, those panels only reduce echo and other unwanted sound inside the room. Acoustimac says its panels have no impact on sound passing through walls, windows and gaps, and USG separates absorption, which cuts reverberation inside a space, from blocking sound between spaces.
So a listing that sells soundproof canvas is selling echo control at best. Burton’s breakdown of whether acoustic panels block sound explains what stops noise from next door.
Which Fabrics Can Replace the Canvas?
For the face of a home-built panel, two fabrics sold for acoustic panels fit a canvas-style frame. Both are polyester, both come wide enough to wrap a standard frame, and neither listing gives an absorption figure.

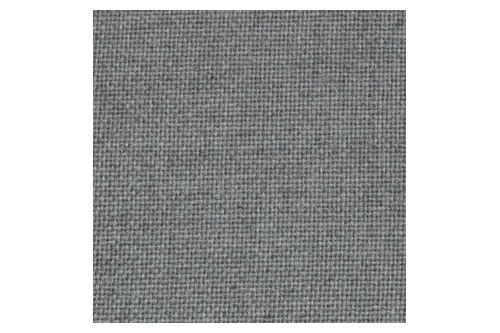

For a canvas-colored face, Guilford of Maine’s Sona acoustical fabric comes in 15 colors whose names include Linen and Cream, and its listing says the weave is open enough to let sound through. It’s made by Guilford for ATS Acoustics and rated Class 1 or A under ASTM E84, per the listing.
Guilford of Maine’s Sona acoustical fabric
For a single frame, each 59 by 36 in piece of SoundAssured’s precut acoustical fabric covers one 2 by 4 ft frame or two 2 by 2 ft frames, per its listing. The listing cites a Riverbank Acoustical Laboratories test of its acoustic transparency, though it doesn’t name a fire class.
SoundAssured’s precut acoustical fabric
Both are plain fabrics, so the picture has to come from you or a printer that works on acoustic fabric, and any printed piece should pass the breathe and light tests before it goes on the frame.
The Bottom Line
Everything on this page comes back to the face: a canvas can be an acoustic panel only when sound gets through it to a real core. Primed, painted and ink-coated canvas puts a sealed layer in the way, so a foam-stuffed canvas print is a compromise rather than a cure.
The canvas-look panels that work print the picture on acoustically transparent fabric over fiberglass or mineral wool, and you can build one with a frame, a 2 in core and a fabric that passes the breathe and light tests.
Frequently Asked Questions
Can you use a canvas painting as an acoustic panel?
Not as it is. A painted canvas is a thin cloth sealed with gesso and paint, and the 1940 National Bureau of Standards study found that paint filming across a material’s pores cuts its absorption, starting with the higher frequencies. Hanging it over foam helps less than you’d hope, since Owens Corning’s sealed-face boards lost most of their 4,000 Hz absorption. To keep the picture, have it printed on acoustically transparent fabric over a 2 in core.
Does putting foam behind a canvas print work?
Partly. The foam can only absorb the sound that gets through the canvas, and a coated print face lets much less through than an open fabric does. Owens Corning’s data shows how a sealed face behaves: a foil facing on 2 in 703 board cut its 2,000 Hz absorption from 1.02 to 0.51 and its NRC from 1.00 to 0.75. The foam-filled canvas guides that rank for this question publish no measurements.
Is duck canvas good for acoustic panels?
Only if the piece you have breathes. Big Duck Canvas lists 7 oz and 10 oz ducks and a 10 oz unprimed artist canvas among its fabrics for acoustic panels, but it publishes no acoustic test. Fabrix rules out thick, high-thread-count fabrics, so breathe through a scrap and hold it up to a bright light. If air and light pass easily, it can work as a face, and if not, buy a fabric sold as acoustically transparent.
How thick should a canvas acoustic panel be?
Give it at least 2 in of core. Owens Corning’s 703 board rates NRC 0.70 at 1 in and 1.00 at 2 in, and GIK says its 2 in art panel absorbs down to about 200 Hz. A 1-1/2 in gallery wrap leaves room for less than that, so build a deeper frame or space the panel off the wall, which lifted Kirei’s thin felt panel from NRC 0.35 flat to 0.70 with a 50 mm gap.
Can you print your own photo on an acoustic panel?
Yes, as long as it’s printed on fabric that sound passes through. GIK takes uploaded photos and recommends 300 dpi at full panel size, and Acoustimac accepts uploads at up to 150 dpi of print resolution. Soundproof Direct describes dye-sublimation onto acoustically transparent fabric, which can look like a photo on paper. A photo printed on ordinary canvas looks much the same on the wall but carries the coating problem described above.
