Acoustic foam is polyurethane, and Auralex says thicker acoustic foam is better at absorbing low frequency sounds.

Acoustic foam vs acoustic panels — these are not the same thing, and picking the wrong one leaves your room’s problem unfixed.

Foam is a light absorption tool for high-frequency reflections, while panels use denser fiberglass or rockwool cores that absorb a much broader range — but neither one soundproofs anything.

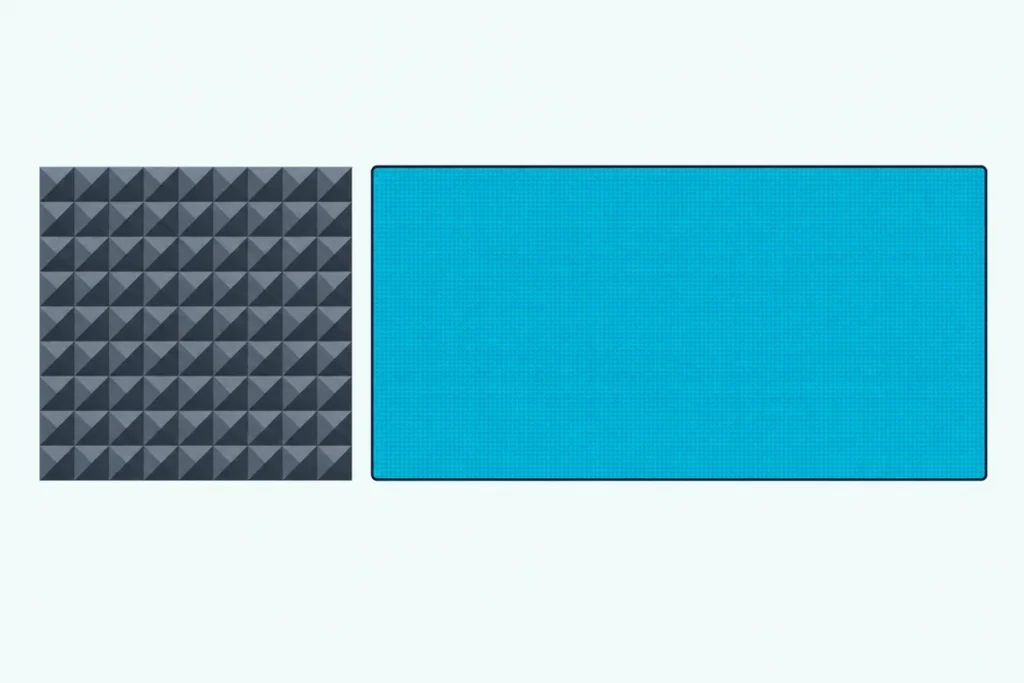

A pyramid acoustic foam panel beside a fabric-wrapped acoustic panel of the same height on a wall

The question is which one matches the problem you’re hearing right now.

Start with the comparison below, then use the decision checklist at the end to pick the right path for your room.

Quick Takeaway

Panels are fiberglass or stone wool boards: Owens Corning lists 2-inch unfaced 703 at an NRC of 1.00, ROCKWOOL its 2-inch Comfortboard 80 at 0.95. Choose foam for light or temporary treatment of high-frequency reflections; choose panels where low and mid frequencies need absorbing too.

The descriptions come from the makers’ manuals and spec pages.

What Is the Real Difference Between Acoustic Foam and Panels?

Side-by-side comparison of acoustic foam tiles versus fabric-wrapped fiberglass acoustic panels

It starts with what’s inside — foam is open-cell polyurethane (the same family as mattress foam), while panels use rigid fiberglass or mineral wool cores wrapped in acoustically transparent fabric.

That single material difference ripples through everything: absorption range, NRC rating, lifespan, how the thing looks on your wall. Once you know which of those specs matters for your room, you know which one to pick.

How the materials affect absorption

Foam’s open cells are relatively large and soft, so they mainly catch shorter wavelengths — the high frequencies. The denser fiber matrix in panels catches longer wavelengths too, which means more balanced absorption across the full spectrum instead of just the top end.

If you’re choosing between foam profiles, best acoustic foam shape breaks down when shape actually matters and when it doesn’t.

When does each option make sense?

Foam earns its place when you need a light, basic treatment for voice recording, podcasting, or taming obvious echo. It also works for temporary setups where you can’t drill into walls.

Panels suit rooms where performance is the priority — recording studios, mixing rooms, home theaters, any space where accurate sound reproduction is the goal.

Performance isn’t the only difference, though.

How they look in your space

Foam’s pyramid and wedge textures look like a studio, which suits a studio but not living spaces, client-facing rooms, or anywhere decor matters.

Fabric-wrapped panels come in virtually any color and can be customized with printed fabric or brand logos, so they can pass as design elements rather than acoustic treatment.

What Is Acoustic Foam?

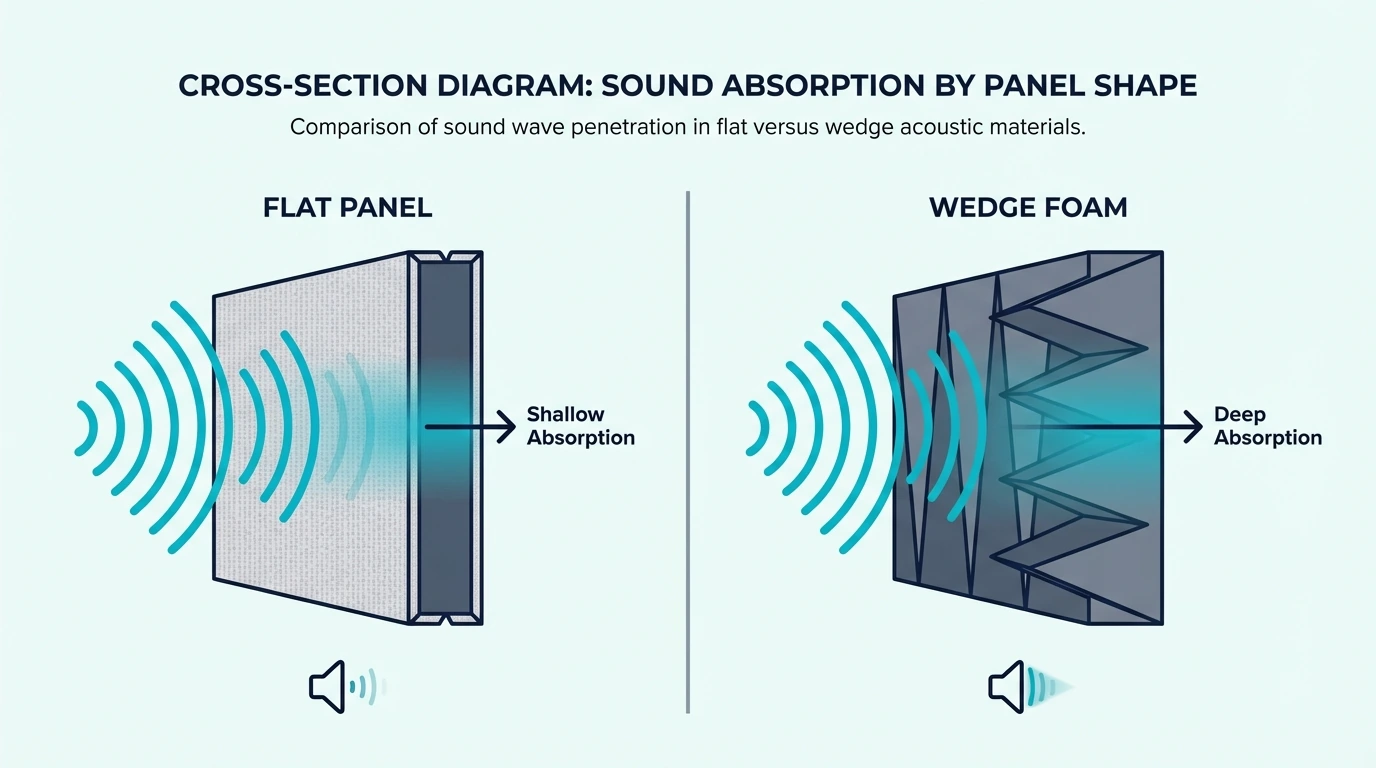

Cross-section diagram showing sound waves entering open-cell acoustic foam structure

What foam is made of explains both why it works and where it stops.

What is acoustic foam made of?

Acoustic foam is open-cell polyurethane — a petroleum-based plastic formed with a cellular structure. The open cells create air pockets that trap sound waves and convert acoustic energy into small amounts of heat.

The pyramid, wedge, and egg-crate patterns you see on foam tiles are surface patterns; thickness is the spec Auralex ties to absorption, saying thicker acoustic foam is better at absorbing low frequency sounds. Density is the other spec to compare, and a listing that states it gives you something to check.

Owens Corning and ROCKWOOL state their boards’ densities on their sheets, which the panel section below gives. If you’re choosing between patterns, acoustic foam pyramid vs wedge covers when shape actually shifts performance.

What is acoustic foam good for?

Foam works at the high end — sibilance in speech, cymbal crashes, and the “air” of a recording. For voice recording, foam behind a microphone reduces the obvious reflections that make recordings sound roomy.

The light weight also keeps installation simple: adhesive strips or mounting tape, and no specialized tools.

If placement is the question, how to arrange acoustic foam covers reflection points without the guesswork.

The same lightweight structure that makes foam easy to install also limits its performance ceiling.

What are acoustic foam’s limitations?

The limit shows up below the high frequencies: Auralex says thicker acoustic foam is better at absorbing low frequency sounds, and foam tiles are sold at 1 and 2 inches, so voice fundamentals, guitar body, kick drums and bass get the least treatment.

Foam also ages: Auralex’s safety data sheet lists its Studiofoam as stable, names high temperatures, open flames and strong acids, alkalis and oxidizing agents as what deteriorates it, and gives no service life.

What Are Acoustic Panels?

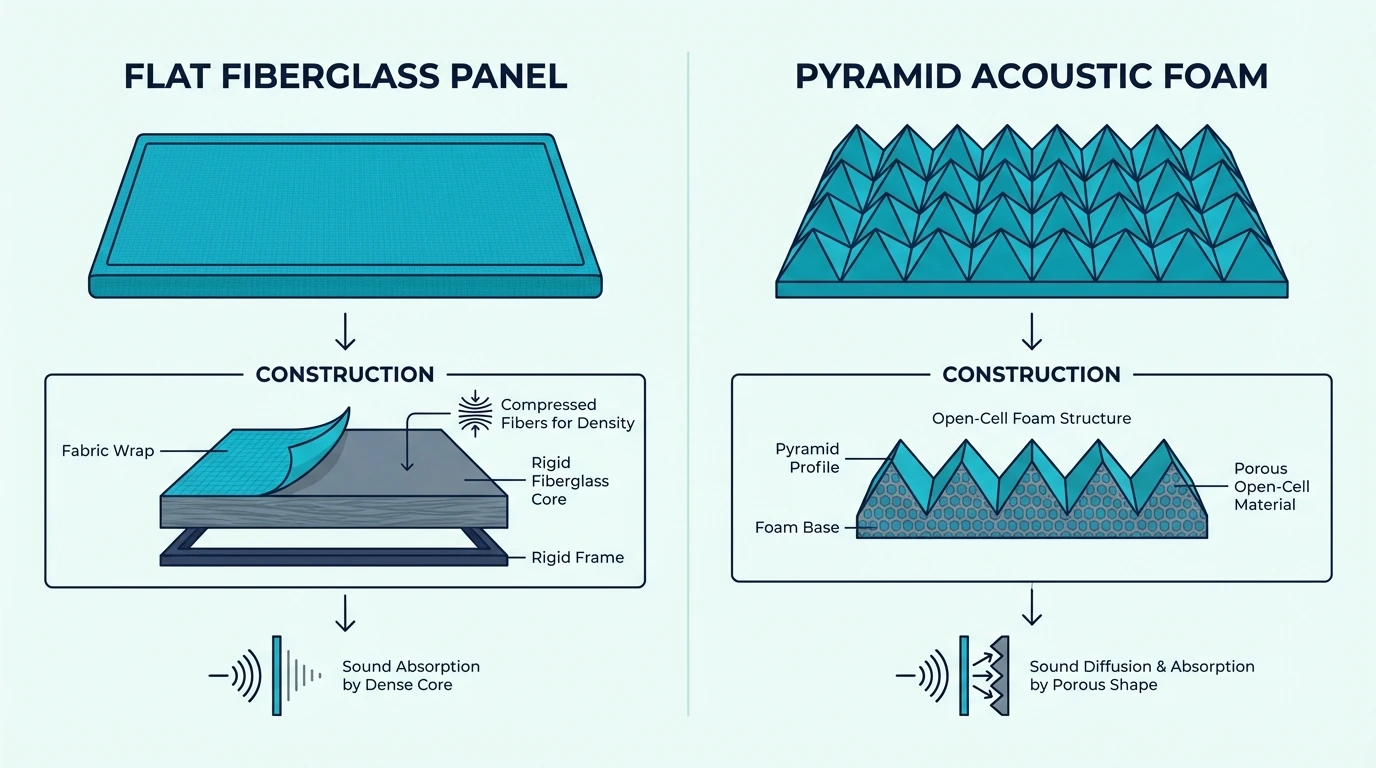

Professional fabric-wrapped acoustic panel showing fiberglass core construction

Panels weigh more than foam, and their makers publish absorption figures down to 125 Hz.

What are panels made of?

Professional acoustic panels use rigid fiberglass (like Owens Corning 703) or mineral wool (like Rockwool) as their core — materials developed specifically for acoustic absorption and thermal insulation.

The fibers pack to 3.0 pounds per cubic foot in Owens Corning’s 703 and 6.0 in its 705 (ROCKWOOL lists its Comfortboard 80 at 8), creating a dense matrix that absorbs a broad range of frequencies. A wood or metal frame holds the core, and acoustically transparent fabric wraps the whole assembly so no fibers escape into your room.

What are panels good for?

Owens Corning lists its 2-inch unfaced 703 board at 0.71 at 250 Hz and 1.14 at 500 Hz, and its 4-inch board at 0.56 at 125 Hz — into the voice range, which USG’s acoustical guide puts between 125 Hz and 4,000 Hz.

Those coefficients run from 125 Hz up through the voice range; for foam, Auralex says only that thicker acoustic foam is better at absorbing low frequency sounds.

What goes into a panel?

A panel is a board, a frame and a fabric wrap assembled together, where a foam tile is one piece of polyurethane.

How Does Absorption Performance Compare?

Chart comparing absorption performance of acoustic foam versus fiberglass acoustic panels

Materials explain why the gap exists. The makers’ numbers show how wide it is.

How does frequency absorption compare?

Auralex gives no frequency figure for its foam, but says thicker acoustic foam is better at absorbing low frequency sounds.

Owens Corning’s 2-inch unfaced 703 board is at 0.71 at 250 Hz and 0.15 at 125 Hz; at 4 inches the 125 Hz figure rises to 0.56. The extra depth is what reaches the lower frequencies.

How do NRC ratings compare?

NRC — Noise Reduction Coefficient — averages absorption across test frequencies. Higher means more absorption.

Product Type NRC (maker’s sheet) Absorption coefficients
Acoustic foam (polyurethane) Not published for the packs on this page; Auralex counts foam among soft materials with high NRCs Thicker foam reaches lower (Auralex)
2” fiberglass board (Owens Corning 703, unfaced) 1.00 0.71 at 250 Hz, 1.14 at 500 Hz
4” fiberglass board (Owens Corning 703, unfaced) 1.15 0.56 at 125 Hz, 1.26 at 250 Hz

Auralex notes that NRCs are not percentages: a material at 1.10 simply absorbs more on average than one at 0.50.

How does lifespan compare?

Auralex’s safety data sheet gives its Studiofoam no service life; it lists the foam as stable, and names high temperatures, open flames and strong acids, alkalis and oxidizing agents as what deteriorates it.

Owens Corning’s sheet says its 703 board resists damage and maintains structural integrity and efficiency, and ROCKWOOL’s Comfortboard 80 passed the fungi-resistance test with a water vapor sorption of 0.2 percent by volume; neither sheet gives a service life. The fabric can be changed while the board stays.

What Does Each One Take?

Cost comparison diagram for acoustic foam versus acoustic panels

Foam goes up as tiles on adhesive or strips, and a panel is a framed board that hangs on hardware. The two sections below set out what each takes to put up and to take down.

What does putting each one up take?

Foam tiles go up with spray adhesive or adhesive strips: 3M lists its Super 77 spray for permanently attaching many lightweight foams, and its Command strips for clean, damage-free removal from most surfaces. Panels hang on hardware such as Z-clips or French cleats, each one leveled and fixed into the wall.

What does taking each one down take?

Foam put up with a permanent spray adhesive comes down with the adhesive, and removing it can damage the paint; strips are made to come off cleanly. A panel lifts off its hardware and leaves the fixings to fill, and its fabric can be changed while the board stays.

How Do Acoustic Foam and Panels Compare Overall?

A thin pyramid foam tile on edge beside a much thicker fabric wrapped panel, both seen from the side to show their depth

One table, all the key numbers side by side.

Factor Acoustic Foam Acoustic Panels
Core Material Polyurethane Fiberglass/Rockwool
NRC (maker’s sheet) Not published for the foam packs here 1.00 for 2” Owens Corning 703; 0.95 for 2” ROCKWOOL Comfortboard 80
Low-frequency reach Thicker foam reaches lower (Auralex) 0.71 at 250 Hz at 2”, 0.56 at 125 Hz at 4” (Owens Corning 703)
Appearance Industrial/patterned Professional/decorative
Installation Adhesive/tape Mounting hardware
Fire Rating Flammable by OSHA’s definition; fire retardants vary by product (Auralex) Flame spread index 5 for unfaced 703 (Owens Corning); 0 for stone wool (ROCKWOOL)
Best For Temporary setups, voice recording Permanent rooms, low and mid frequencies

Which Should You Choose?

Decision flowchart showing when to choose acoustic foam versus panels based on budget and goals

Specs tell you what each product does — your room tells you which one to buy.

When should you choose foam?

If foam is what you can put up, it still beats bare walls: Auralex gives ½-inch drywall an NRC of 0.05 and counts acoustic foam among the soft materials with high NRCs — and for voice recording, the high-frequency reflections are the obvious offenders.

It also works for temporary spaces or rentals where you can’t make permanent modifications — foam is light and can hang on strips made to come off cleanly. If you’re experimenting before committing to panels, how to choose acoustic foam helps you get the right thickness and density the first time so you don’t waste the experiment.

When should you choose panels?

Go with panels when audio quality is the priority — recording, mixing, content creation, home theater. That NRC gap from the comparison is the reason.

They’re also the pick for permanent spaces — a framed board on hardware rather than a tile on adhesive.

If you still want foam options regardless, the best acoustic foam panels roundup is the short list.

When using both makes the most sense

You don’t have to pick one exclusively — use panels at the positions that matter most (first reflection points, behind monitors, corners as bass traps) and fill secondary spots with foam. This puts broadband absorption where it counts while keeping the panel count down.

A practical split puts panels at the critical positions and foam in the supplemental spots. If you want the deeper material-level breakdown of what’s inside those panels, acoustic foam vs rockwool covers the materials and DIY details.

Conclusion

Foam and panels both absorb sound — but their makers’ figures tell different stories at the low end.

If you’re starting out with voice recording and need a quick improvement, foam is a legitimate first step. If you’re building a space where sound quality matters for years, panels bring the broader absorption their makers’ sheets show.

Pick the one that matches the problem you’re solving.

Frequently Asked Questions

Can acoustic foam replace panels?

Not where low and mid frequencies need absorbing: Owens Corning lists its 4-inch unfaced 703 board at 0.56 at 125 Hz, and Auralex says only that thicker acoustic foam is better at absorbing low frequency sounds.

Foam can supplement panels (behind a microphone where high-frequency reflection is the main concern, for example), but foam alone gives mids and lows the least treatment. If you’re treating a booth specifically, the acoustic foam vocal booth guide covers placement and thickness for that use case.

What do professional studios use?

Auralex’s Acoustics 101 describes its stereo mixing rooms with large amounts of absorption at the front to kill early reflections, the rear half of the side walls absorbed only sporadically, and broadband diffusion on the rear wall.

Foam is in the same document: for a rehearsal room with excessive slap echo and reverb, Auralex advised 2-inch Studiofoam on the walls, more coverage rather than thicker foam, with bass traps in all four corners. The does acoustic foam work guide covers the realistic expectations.

Can you mix foam and panels together?

Yes, and for many rooms it’s the practical approach. Put panels at first reflection points where full-frequency absorption matters most, then use foam in secondary positions or behind microphones where high-frequency treatment is enough.

That mix puts the broadband absorption where it is needed with fewer panels. The trick is putting the panels where your ears will notice them most — the acoustic foam wall install guide covers mounting methods for both types.

Does either one soundproof a room?

Neither one. Foam and panels absorb sound within a room — they reduce echo and reverb, not noise going through walls.

If your goal is blocking sound from neighbors or keeping sound inside, you need mass, sealing, and decoupling. The acoustic foam alternatives guide covers materials that actually work for isolation, and the is acoustic foam worth it breakdown helps you decide if foam fits your situation at all.
