Acoustic foam vs normal foam seems like a marketing distinction, but packing foam glued to your walls reflects sound instead of absorbing it.
If your recordings still pick up every flutter echo or your calls sound like you’re trapped in a tiled bathroom, those closed cells are bouncing sound waves instead of catching them.

Getting true open-cell material instantly stops that hollow reflection, giving you the clean, direct audio needed for professional results.
Start with the quick takeaway below to see why regular foam fails, then each section covers the microscopic differences that actually kill room reflections.
Regular foam (packing foam, closed-cell foam) has a closed structure that reflects sound instead of absorbing it, making it useless for acoustic treatment.
What’s the Real Difference Between Acoustic Foam and Normal Foam?
So what exactly separates these two materials? The difference isn’t visible to the naked eye, but it’s everything.
Acoustic foam has interconnected air pockets throughout its structure. Sound waves enter these channels and lose energy bouncing around inside.
Normal foam has sealed, independent cells that act like tiny balloons. Sound hits the surface and reflects right back because there’s nowhere for the energy to go.
If you want the bigger picture on what foam can (and can’t) fix in a room, read does acoustic foam work.

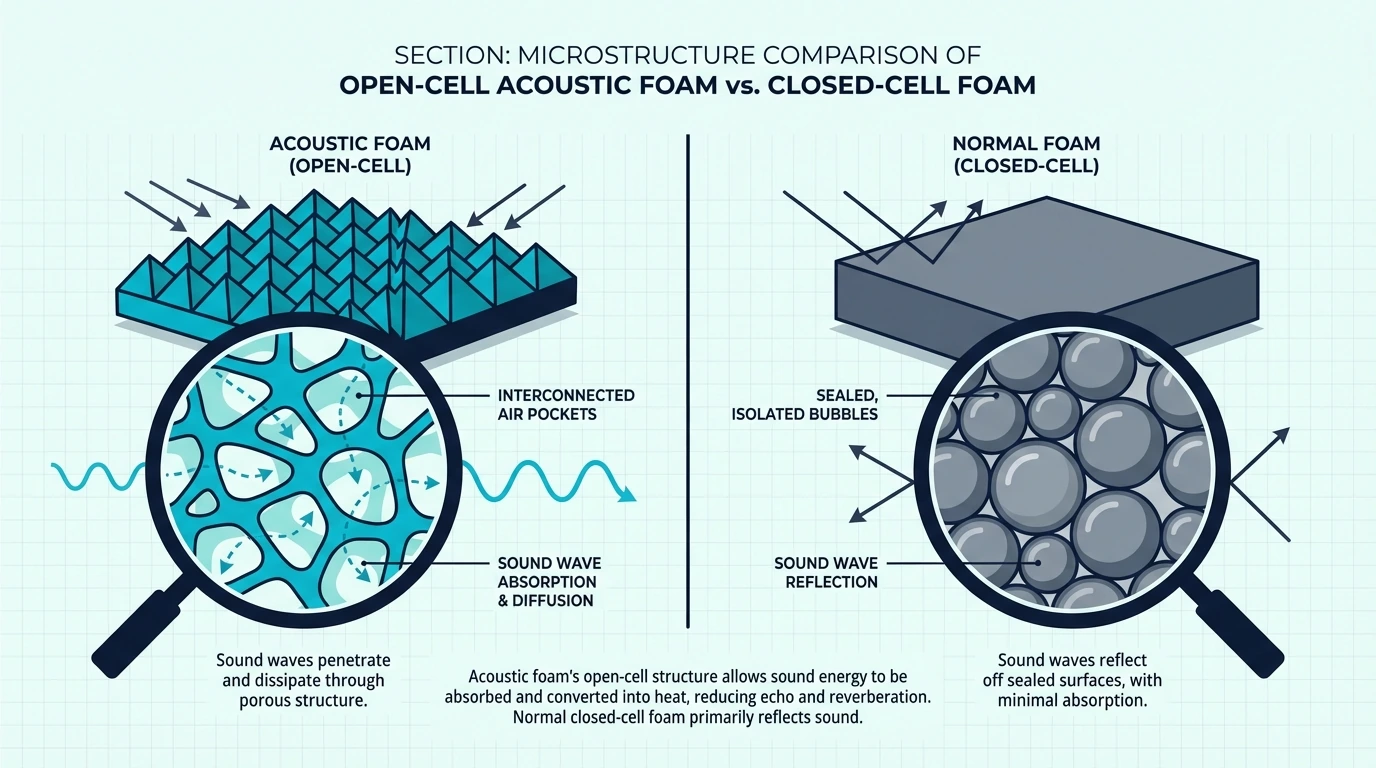

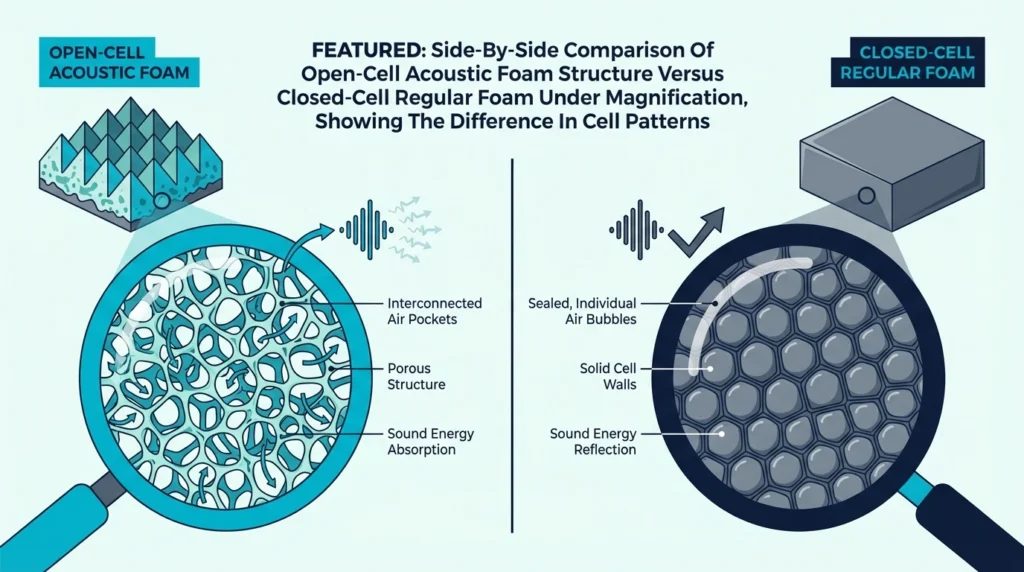

The Short Answer: Open-Cell vs Closed-Cell Structure
Auralex lists NRCs (Noise Reduction Coefficients) of 0.50 to 1.10 for its open-cell Studiofoam Wedges, from 1 to 4 inches thick. Its Acoustics 101 adds that NRCs are not percentages: a higher number simply means more sound is absorbed on average.
Closed-cell foam? Auralex’s Acoustics 101 says of blueboard, an expanded polystyrene closed-cell foam, that there is no absorptive benefit to be gained from it in wall cavities.
You’d get roughly the same acoustic benefit from hanging cardboard on your walls.
Quick Comparison Table
| Factor | Acoustic Foam (Open-Cell) | Normal Foam (Closed-Cell) |
|---|---|---|
| Cell Structure | Interconnected air pockets | Sealed independent cells |
| NRC Rating | 0.50–1.10 (Auralex’s Studiofoam Wedges, 1 to 4 inches) | No absorptive benefit in a wall cavity, by Auralex’s account of closed-cell blueboard |
| Sound Absorption | Yes — waves enter and dissipate | No — waves bounce back |
| Typical Uses | Studios, podcasting, home theaters | Insulation, packaging, flotation |
The descriptions come from the makers’ manuals and spec pages.
Every pick met Burton Acoustix’s rating, review and stock checks on 8 November 2026.

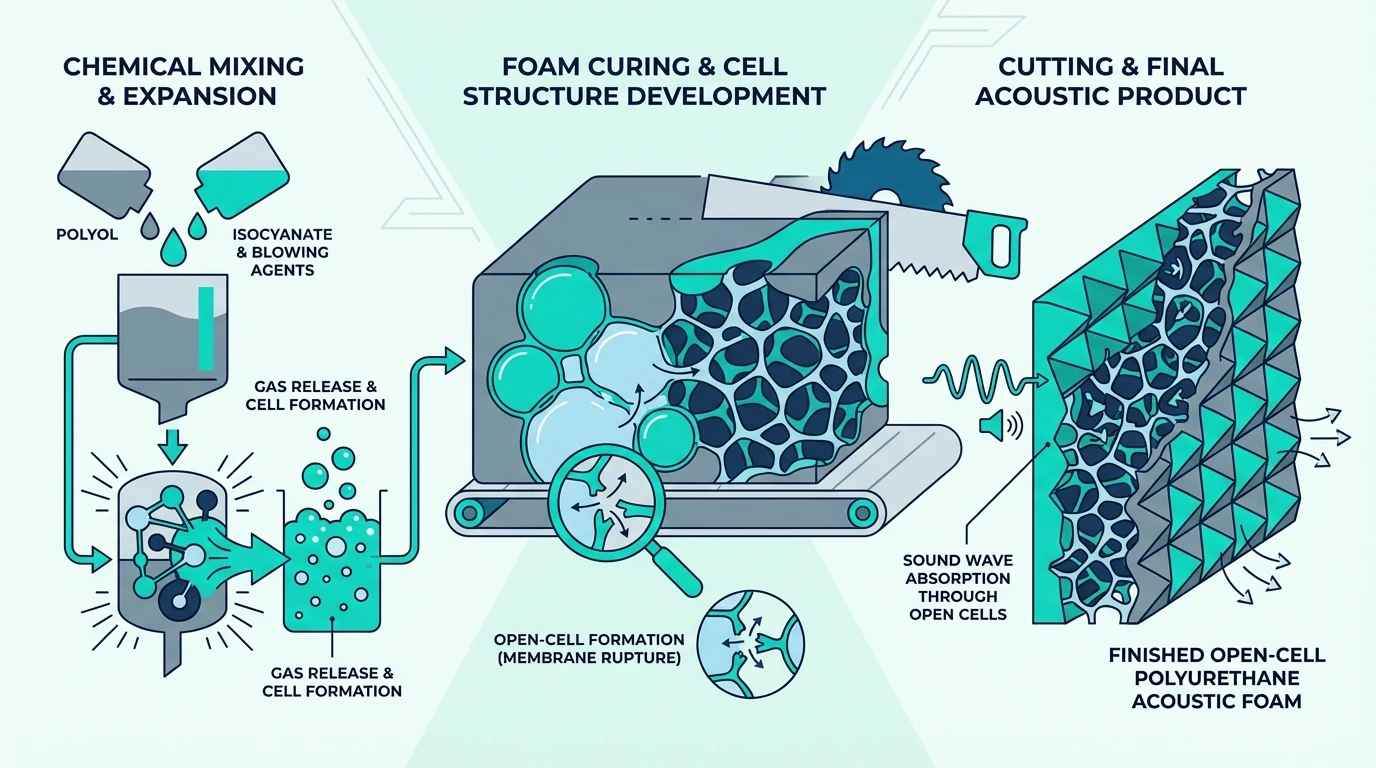

What Is Acoustic Foam Made Of?
Understanding the cell structure difference is one thing, but what actually creates it? Acoustic foam is polyurethane manufactured with a process that produces open cells.
During production, gas bubbles form and then pop, leaving interconnected channels throughout the material. That’s what gives sound a path into the foam instead of reflecting off the surface.
This isn’t marketing — it’s physics. The open structure creates friction that converts sound energy into tiny amounts of heat, effectively “eating” the sound waves.
Open-Cell Polyurethane Structure
The manufacturing process intentionally ruptures cell walls during production. What remains is a sponge-like network of channels that sound waves can penetrate.
This is where those NRC ratings come from — the more consistent the open-cell structure, the higher the absorption coefficient. Manufacturing quality directly affects acoustic performance.
When you’re shopping, focus on real open-cell polyurethane foam and enough thickness to matter. The best acoustic foam panels guide breaks down practical picks by thickness and use case.
Why the Cell Structure Matters for Sound
Sound travels as pressure waves through air. When those waves hit open-cell foam, they enter the porous structure and encounter resistance.
The air inside the foam’s channels creates friction against the moving sound waves. This friction converts acoustic energy into thermal energy — the sound literally becomes heat, though you’d never notice the temperature change.
That’s why thicker foam works better than thin foam. More depth means more channels for sound to travel through, more friction, more absorption.
A 2-inch panel absorbs far more than a 1-inch panel, especially in the mid frequencies that matter most for speech clarity. The frequency absorption guide covers exactly which ranges each thickness handles.

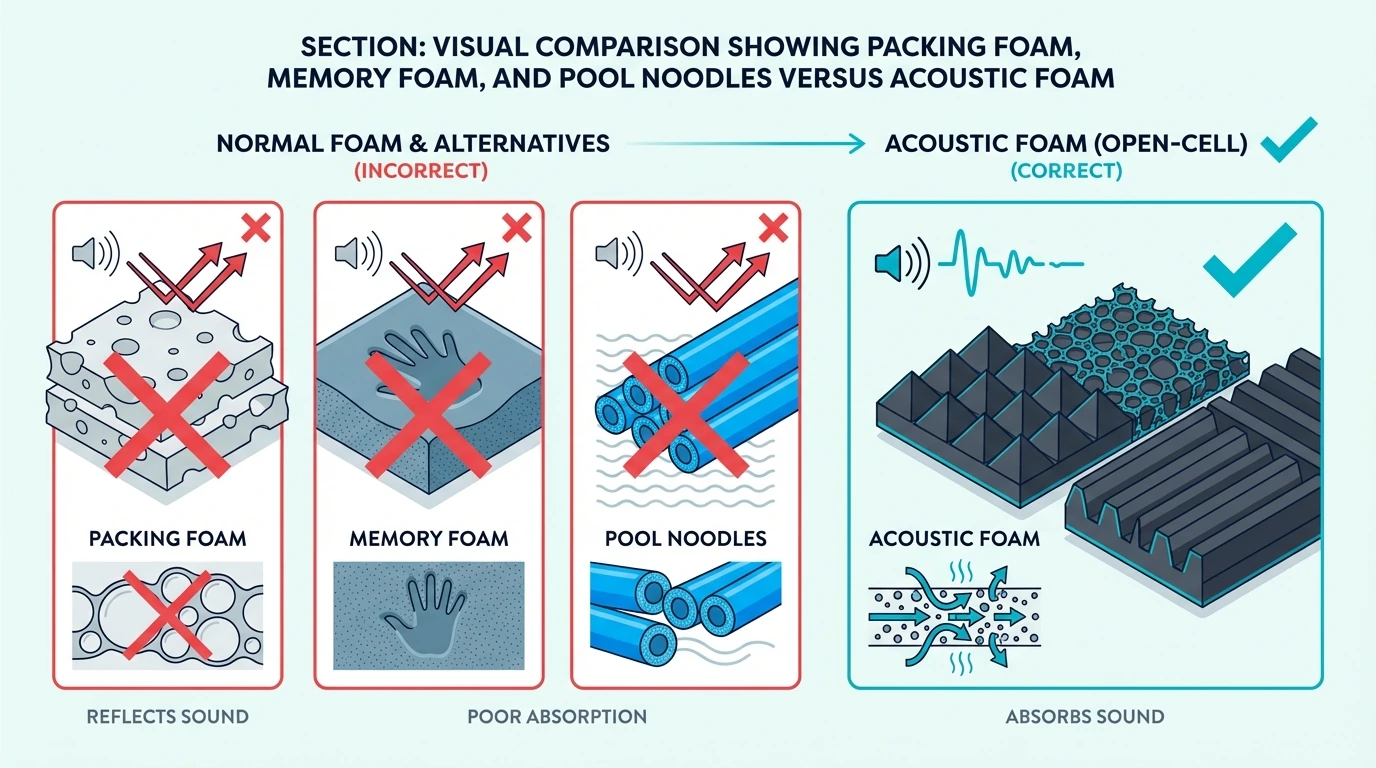

Can You Use Normal Foam for Acoustics?
Short answer: no — the physics don’t allow it, regardless of how thick you make it or how much you use.
People try this constantly because normal foam is easier to find. But you can’t change closed-cell foam into open-cell foam by stacking it, cutting it, or arranging it differently.
Regular Foam: Why It Doesn’t Work
Closed-cell foam was designed to resist penetration — that’s the whole point. It keeps water out of life jackets, cushions impacts in packaging, and insulates against temperature changes.
Those same properties that make it useful for other applications make it terrible for sound. Sound waves need somewhere to go, and closed-cell foam gives them nowhere.
Remember those interconnected air pockets from earlier? Closed-cell foam has none of them.
Each cell is a sealed bubble that bounces sound back instead of letting it in. That’s why it behaves more like a reflective surface than an absorber.
Packing Foam: Does It Absorb Sound?
Packing foam — the stuff that comes in boxes protecting electronics — is almost always closed-cell polyethylene. It’s designed to absorb physical impacts, not sound waves.
Try this test: squeeze a piece of packing foam and listen. It makes a crunchy, plasticky sound because you’re compressing sealed air pockets.
Acoustic foam compresses quietly because air flows freely between cells.
Memory Foam: Is It the Same?
Auralex, comparing its Studiofoam with bedding foam, says the more important factors in a foam’s acoustical characteristics are density and surface area.
For a closer look at why mattress foam falls short, see the acoustic foam vs mattress foam breakdown.

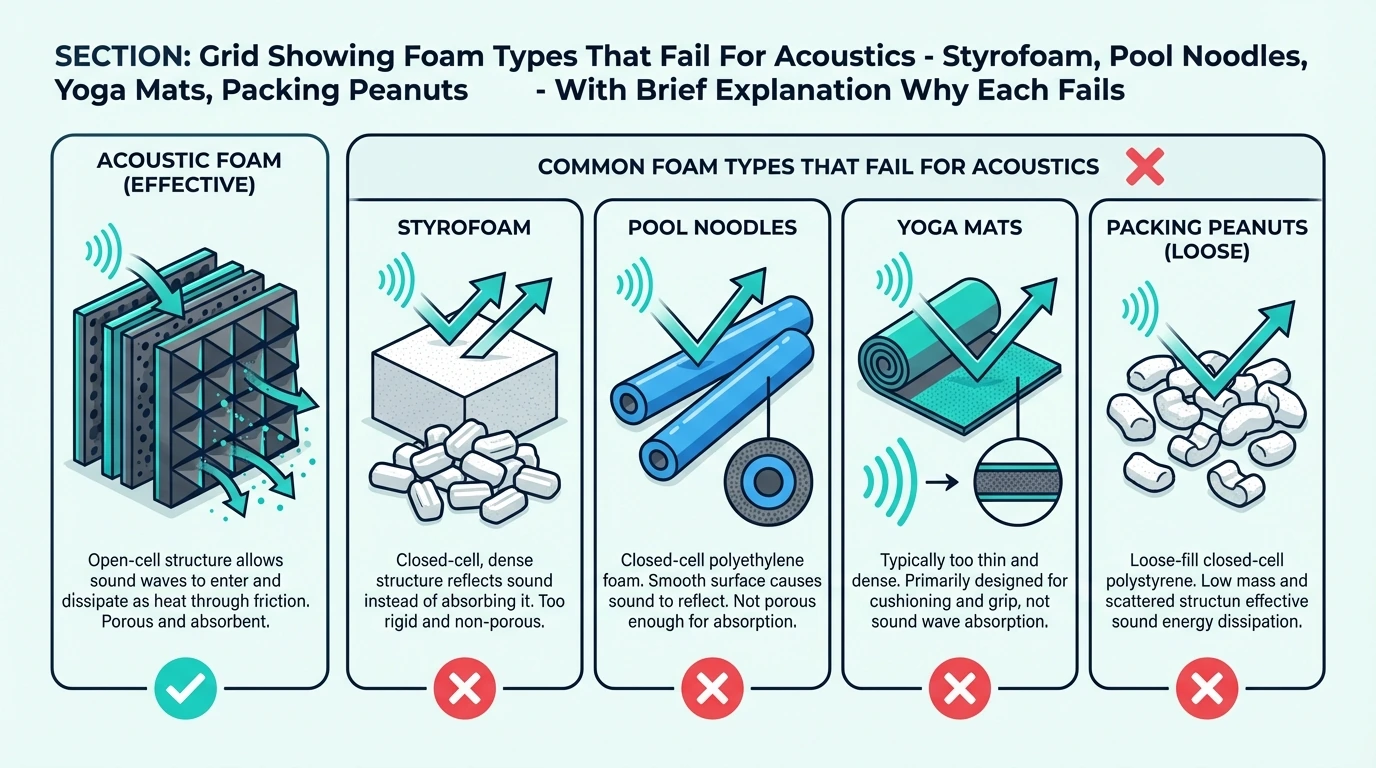

What Types of Foam DON’T Work for Sound?
With the physics clear, here’s a specific list of about what doesn’t work. People keep trying these alternatives, and every single one has the same fundamental problem: closed or semi-closed cell structure.
Understanding why each fails reinforces the core principle. It’s not about brand names or marketing — it’s about physics that can’t be cheated.
Closed-Cell Foam (Doesn’t Absorb)
Any foam marketed as “closed-cell” is automatically disqualified for acoustic use. This includes most insulation foams, flotation devices, and protective padding.
Closed-cell foam mats are useful for vibration damping, not airborne sound absorption. If your problem is rattles and vibration, read sound deadening vs acoustic foam for the right materials.
Styrofoam and Packing Material
Expanded polystyrene (Styrofoam) is approximately 95% air by volume. Sounds like it should absorb sound, right?
Wrong. That air is trapped in completely sealed cells.
The material is so rigid that sound waves reflect off it almost as effectively as a solid surface.
It doesn’t block sound either, and the guide to soundproofing with Styrofoam sets its weight beside drywall’s.
Pool Noodles and Mattress Foam
Pool noodles are closed-cell polyethylene — the same material as packing foam, just shaped differently. Hanging pool noodles in a studio is a waste of effort and looks ridiculous.
Mattress foam varies, but most modern foam mattresses use high-density memory foam or latex, neither of which has meaningful acoustic absorption. The softness that makes them comfortable for sleeping doesn’t translate to sound absorption.
Is All Acoustic Foam the Same?
So you’ve decided to buy actual acoustic foam – smart choice. Not all acoustic foam is created equal, and that difference shows up fast in real rooms.
The category spans from barely-functional low-density foam to higher-density foam that performs more consistently. If you buy the wrong kind, you get the “treated wall” look without the “cleaner recordings” result.
Quality differences affect how much sound gets absorbed, how long the foam lasts, and whether it maintains its shape over time. Understanding these differences helps you avoid foam that looks right but underperforms.
Quality Differences in Acoustic Foam
Density is the primary quality indicator — and it ties directly back to that open-cell structure covered earlier. Higher-density foam absorbs more sound and lasts longer without sagging or compressing.
Some foam uses lower-density polyurethane. Auralex says much lower density severely diminishes a foam’s absorptive performance, especially in mid and low frequencies, and that temperature and moisture changes are the biggest causes of premature aging.
NRC Ratings: How to Compare
Always check NRC ratings when comparing products. Auralex’s Acoustics 101 defines a material’s NRC as the average of its absorption coefficients at 250, 500, 1000 and 2000 Hz.
Auralex adds that NRCs can only be multiples of 0.05, so a reported NRC of 0.72 was probably not tested to the standards. The best acoustic foam panels guide focuses on options with consistent reviews and clear specs.

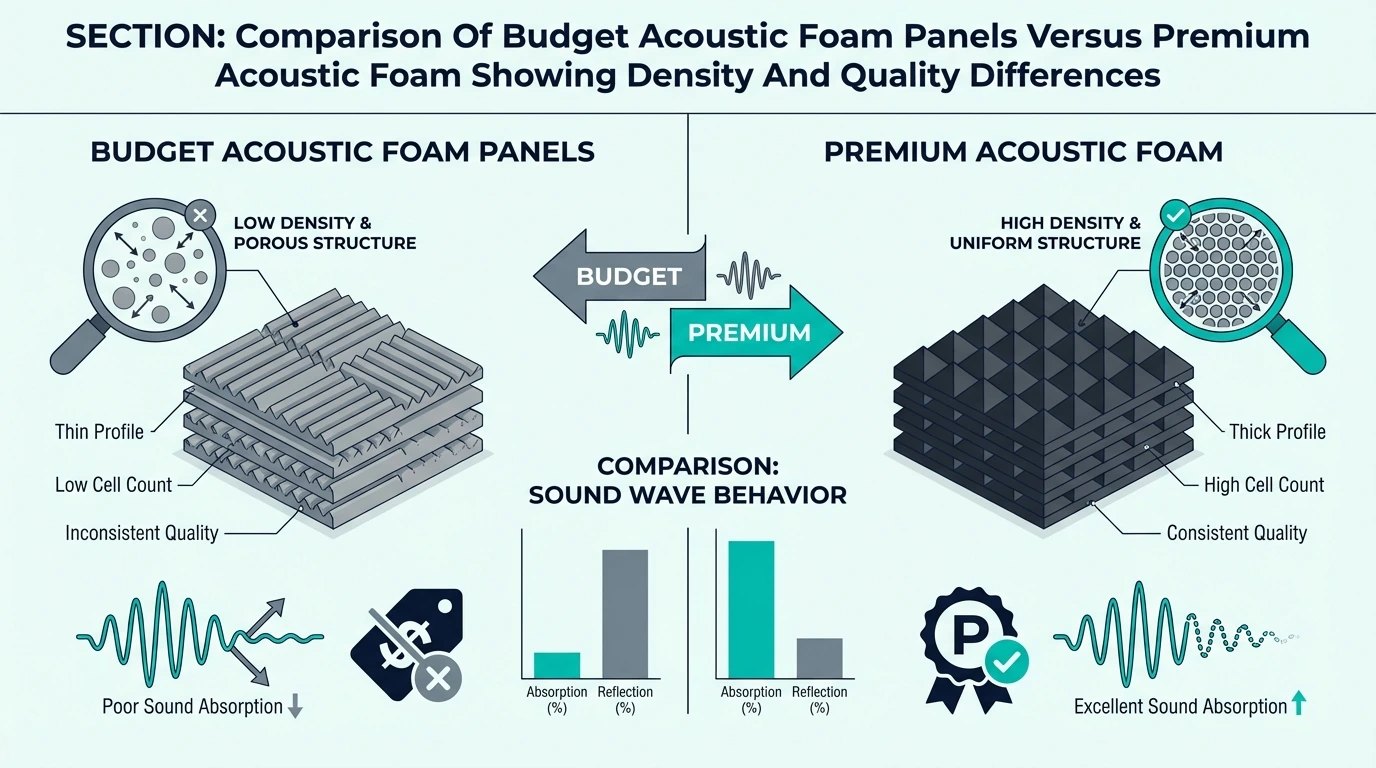

Low-Density vs High-Density Acoustic Foam
Low-density foam usually comes with an inconsistent cell structure and a shorter useful life. It can still reduce some flutter echo, but it’s easier to end up with panels that look right and barely change the room.
Better foam has a higher density that maintains its shape and a more consistent open-cell structure. In practice, that means more predictable absorption and less “sagging foam” over time.
For most home studios and podcasting setups, prioritize thickness and enough coverage to treat first reflection points before you obsess over shapes and marketing claims. If you’re ready to buy, the three picks below are solid starting points.
Three solid open-cell foam picks (by use case)
If you want a simple option for treating a small room, start with a 12-pack of 2-inch black pyramid foam panels with peel-off adhesive backs. You’ll still need decent placement, but 2-inch thickness makes it easier to hear a difference on voice and guitars.

Sonicism Self-Adhesive Foam Panels (12 Pack)

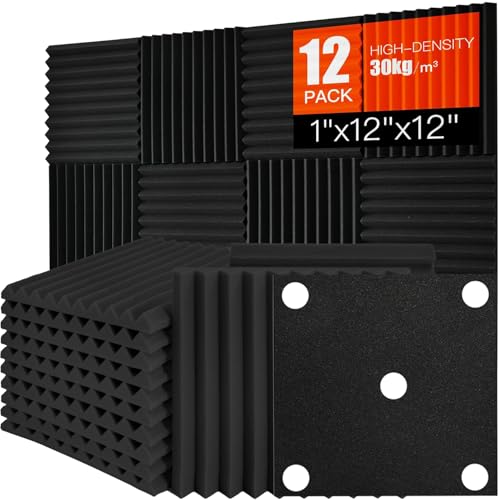

If you’re just testing first reflection points (or treating a tiny setup), a 12-pack of 1-inch wedge panels is an easy way to learn what treatment changes in your room.

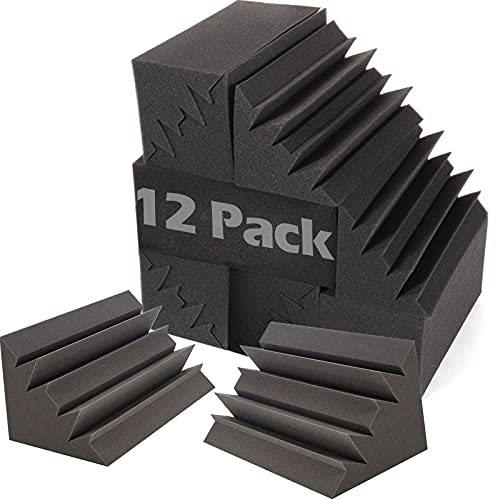

If corners are your worst hotspots, add a 12-pack of charcoal foam corner bass traps with ridged faces.

12 Pack Foam Bass Traps (Corner Blocks)

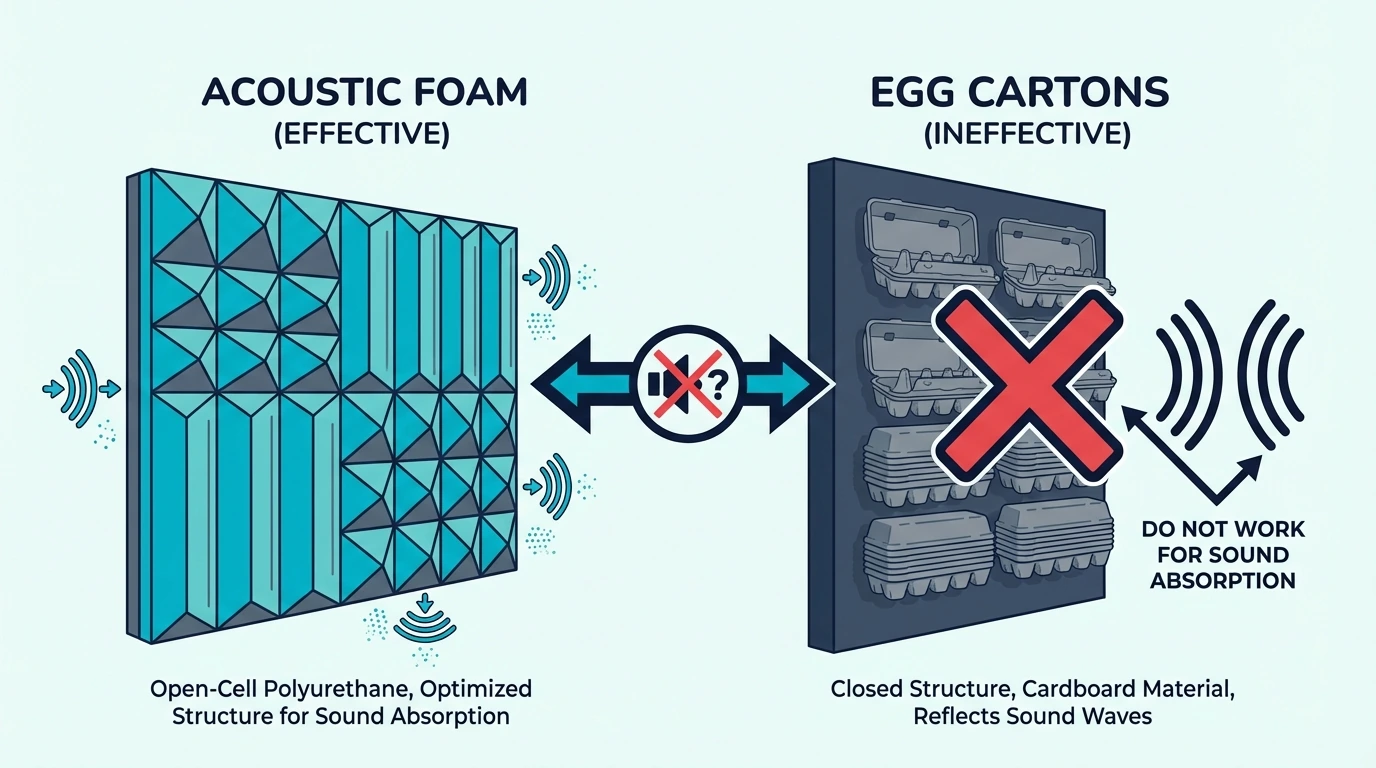

What About Egg Cartons and DIY Alternatives?
Egg cartons are the most persistent myth in DIY acoustics — they look like acoustic foam with their bumpy surface, but the similarity is purely visual.
Auralex’s Acoustics 101 says empty egg cartons are not going to keep sound from leaving or intruding upon your studio, or give it a pleasing, neutral sound. The bumpy shape doesn’t create the open-cell structure that absorbs sound.
If you want the full breakdown, see egg cartons vs acoustic foam.
Why the Egg Carton Myth Persists
The myth started because pyramid-shaped acoustic foam looks vaguely similar to egg carton patterns. People assumed the shape was what mattered.
Shape helps with diffusion — breaking up sound waves so they don’t reflect directly back. But absorption requires the right material structure, not just the right shape.
DIY Alternatives That Absorb Sound
If you want DIY acoustic treatment, look for fibrous materials like rockwool or fiberglass (wrapped in breathable fabric), heavy moving blankets, and thick curtains. Auralex counts fiberglass and fabric among the soft materials with high NRCs, and at 2 inches Owens Corning lists its 703 fiberglass board and ROCKWOOL its Rockboard 60 at an NRC of 1.00, against 0.75 for Auralex’s own Studiofoam Wedges.
Corner hotspots are real, but coverage and placement still matter most. If you want the broader pros/cons of different alternatives, start with acoustic foam vs insulation.
The Bottom Line: It Comes Down to Open-Cell Structure
Everything here comes down to one principle: open-cell structure. The cell structure difference between acoustic foam and normal foam isn’t a minor technical detail — it’s the entire mechanism that makes sound absorption possible.
Closed-cell foam, regardless of thickness, lacks the open-cell structure needed to absorb sound waves.
FoamOrder describes acoustic foam as a lightweight, open-cell foam: sound enters the open cells and loses energy as it moves through the foam.
For more details on how acoustic foam actually reduces sound, the what is acoustic foam guide covers how absorption actually works. If you’re ready to choose panels, the best acoustic foam panels guide covers top options by use case.
Frequently Asked Questions
Can I mix acoustic foam with regular foam?
Don’t. Regular foam adds little or nothing for sound, the acoustic foam maker says bedding and look-alike foams are much more flammable, and foam board burns too and must be covered by a thermal barrier such as drywall.
How do I test if my foam is open-cell or closed-cell?
Blow air through a small piece. Open-cell foam allows air to pass through with minimal resistance.
Closed-cell foam blocks airflow almost completely — you’ll feel back pressure against your lips.
Is thicker foam always better for sound absorption?
For low frequencies, yes: Auralex’s Acoustics 101 says thicker acoustic foam is better at absorbing low frequency sounds.
Auralex lists its Studiofoam Wedges at an NRC of 0.50 at 1 inch, 0.75 at 2 inches, 0.90 at 3 inches and 1.10 at 4 inches.
Does the shape of acoustic foam matter?
Shape mainly affects surface area and a bit of diffusion. Pyramid and wedge patterns add texture that helps break up reflections.
In practice, thickness and placement matter more than whether you pick wedge or pyramid. If you’re choosing between shapes, the pyramid vs wedge comparison covers the tradeoffs.
