Where boxy low-mids or bass are the problem, create the gap with Z-clips or French cleats plus spacer blocks; skip the extra hardware if treating only voice and high-frequency echo.
Best air gap for acoustic panels depends on the frequency range causing problems in the room and on how far the mounting hardware holds the panel off the wall.
Products in this guide
- Fabric-covered panels
- Self-adhesive install
- Bracket-ready set makes repeatable installs easier
- Fiberglass panels
- Large surface area makes each gap-backed panel count more
- Professional fabric finish suits visible rooms
If your room still sounds boxy or boomy after hanging panels, the low end is still the problem.
A gap behind the panel is a second choice beside its thickness — if you are debating 1-inch vs 2-inch acoustic panels, weigh the air gap too.
The sections below cover gap sizing by frequency, mounting hardware options, and common mistakes.
The descriptions come from the makers’ manuals and spec pages.

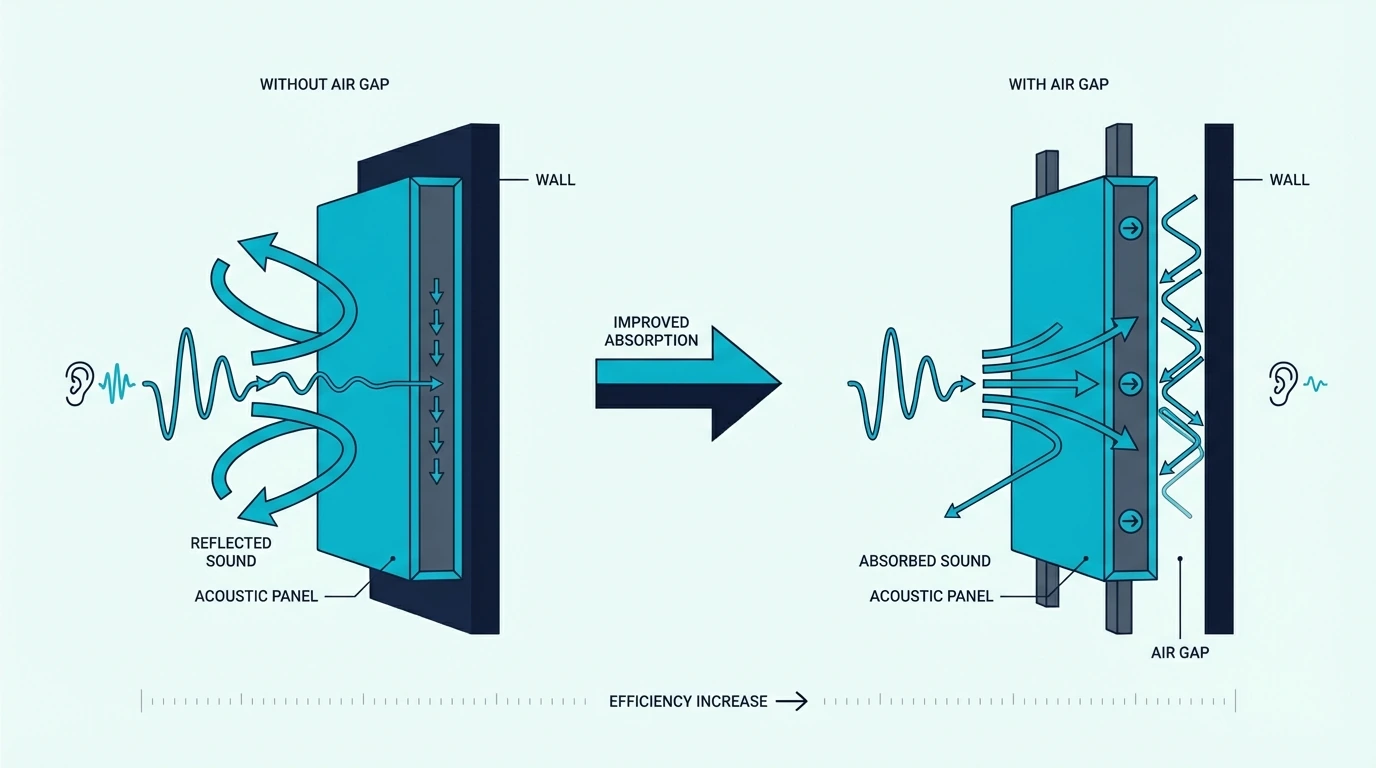

What Is an Air Gap for Acoustic Panels?

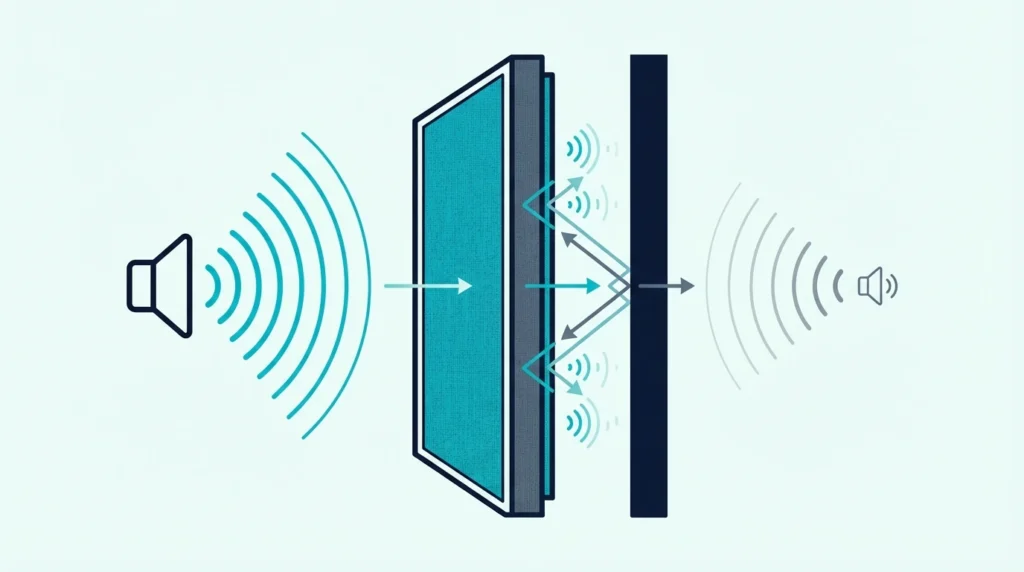

An air gap is simply the space between your acoustic panel and the wall or ceiling behind it.
Instead of mounting panels flat against the surface, you use spacers or standoff hardware to create a gap.
This gap does more than hang panels away from the wall: it changes the mounting.
The mounting shows up in how sound absorption is measured: Auralex’s Acoustics 101 notes that materials are tested using different mounting methods, and that comparing a sample laid flat (A mounting) with one spaced several inches off the floor is “apples and oranges.”

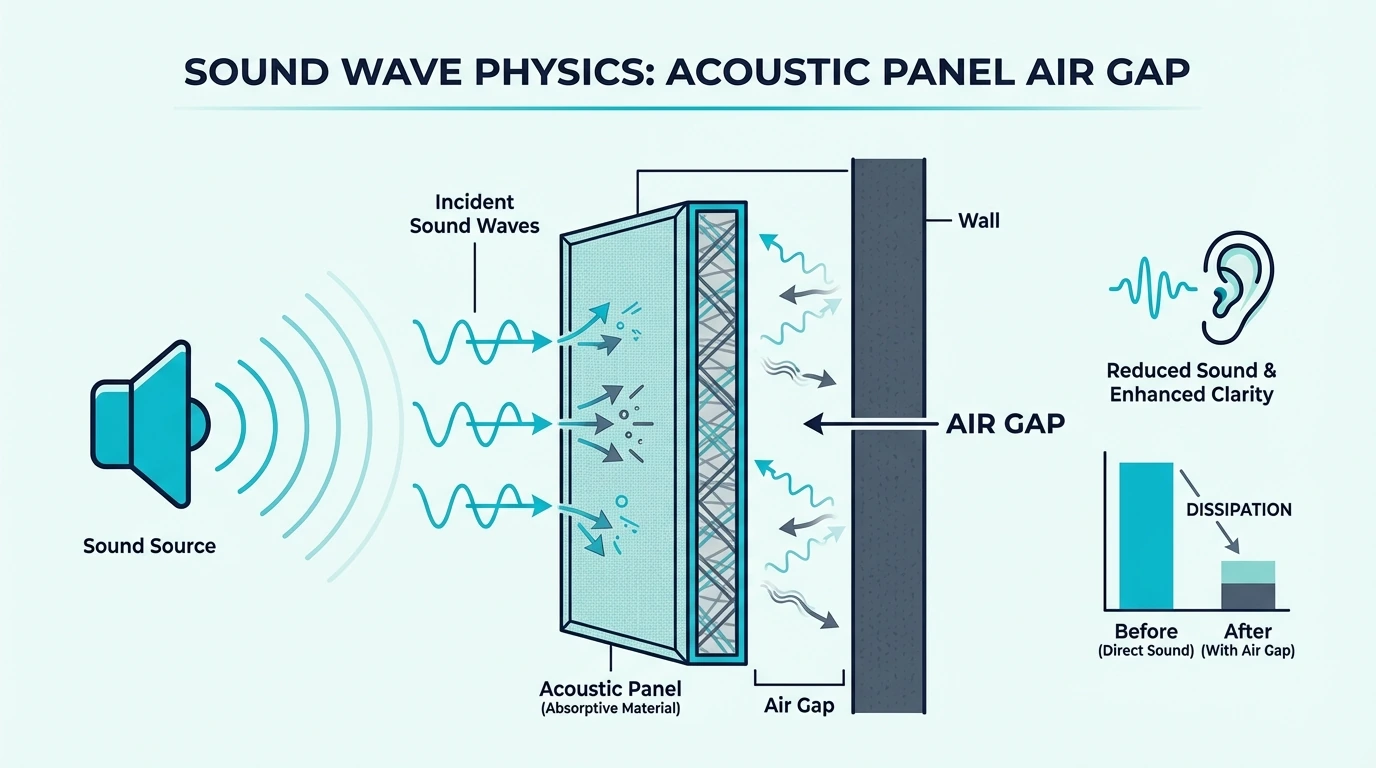

What Does an Air Gap Behind a Panel Do?
Three questions follow: what the gap adds behind the panel, how wavelengths compare with its depth, and whether the use case even calls for a gap.
What Does an Air Gap Add Behind a Panel?
Auralex’s Acoustics 101 describes one way to control sound in general and low frequency sound in particular: make the sound waves fight their way through multiple layers of different materials and dead air before they can strike the room boundary.
A panel mounted with an air gap puts a layer of dead air between the panel and the wall.
How Do Wavelengths Compare With a Gap’s Depth?
A flush 2-inch panel is weakest at the low end.
Owens Corning gives a 2-inch 703 board mounted against a solid backing 0.71 at 250 Hz and 0.15 at 125 Hz (ASTM C423).
Low-frequency wavelengths are long, at Auralex’s 1,130 feet per second.
For 250Hz, a quarter-wavelength is about 13.6 inches (1,130 × 12 ÷ 250 ÷ 4).
For 125Hz, it’s about 27 inches.
Even a 2-inch panel on a 4-inch gap is only 6 inches deep, a fraction of either.
High frequencies already absorb well with flush mounting: Owens Corning gives the same flush 2-inch board 1.16 at 1000 Hz and 1.02 at 2000 Hz.
A 2000Hz wave has a quarter-wavelength of about 1.7 inches (1,130 × 12 ÷ 2000 ÷ 4).
Do All Acoustic Panels Require an Air Gap?
No—and this is important.
If you’re treating a room primarily for voice recording, podcasting, or speech clarity, flush-mounted panels work fine.

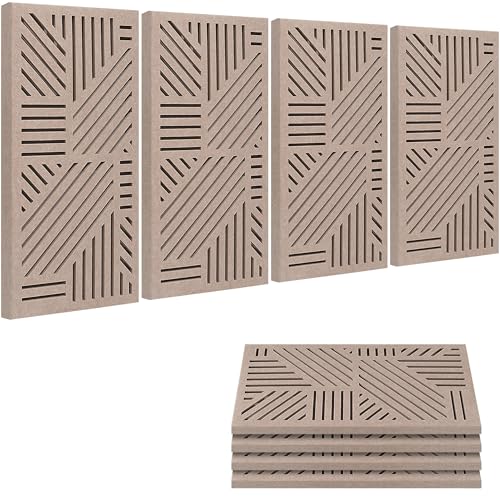

If you want a simpler install for that kind of general reverb control, a BUBOS 4-pack of fabric panels can go flat on the wall in a voice-only room.
BUBOS Fabric Acoustic Panels (4 Pack)
The rooms where the gap question comes up are the ones with a low-end problem: music studios (bass instruments, kick drums), home theaters (movie bass, subwoofer bleed), mixing rooms and rooms with boomy acoustics.
The home theater panels guide has panel recommendations for cinema rooms where bass bleed is the main issue.
If your problem is high-frequency flutter echo or speech reverberation, mount flush and skip the extra hardware.

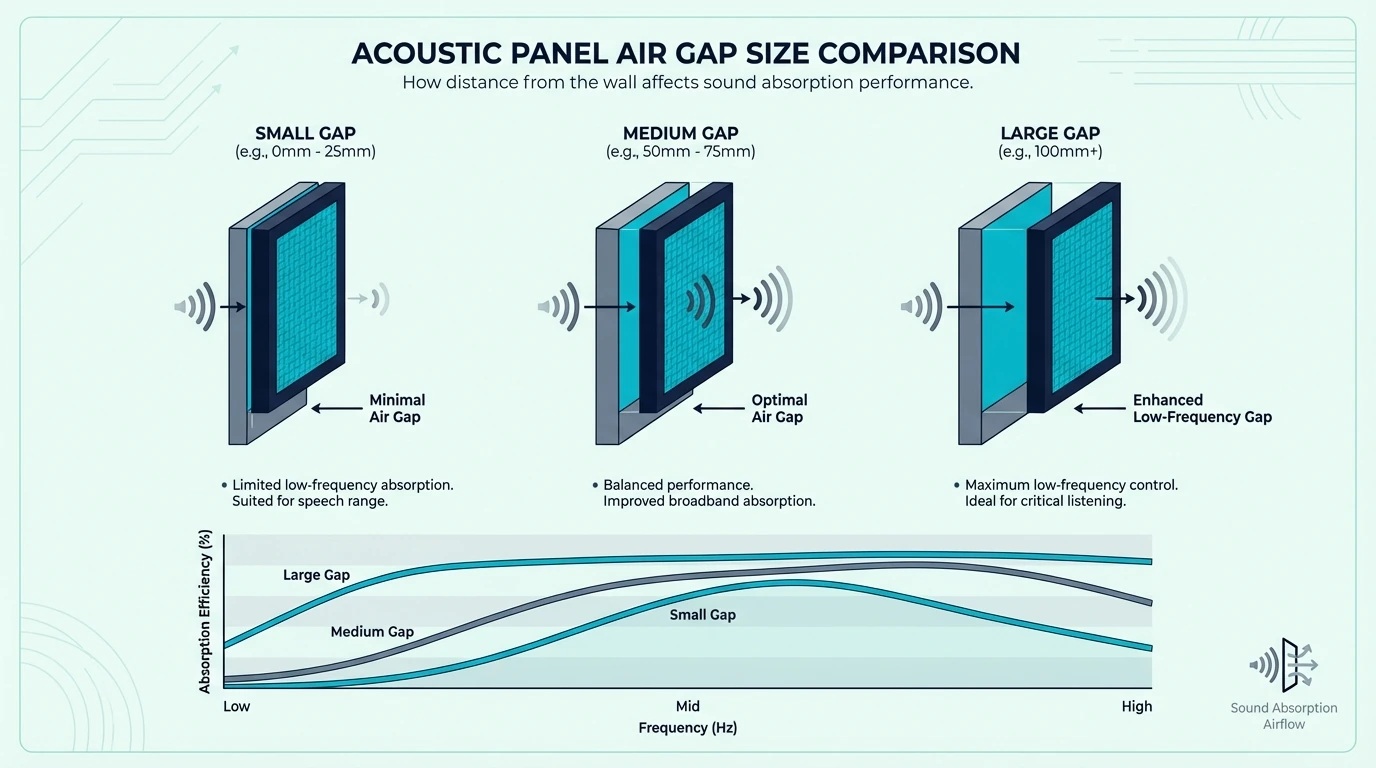

What Is the Best Air Gap Size for Acoustic Panels?
Three sizing questions come up in every install: the target gap for bass, the target for mids and highs, and the penalty for overshooting or undershooting.
What Is the Ideal Air Gap for Low-Frequency Absorption?
A 4-inch gap behind a 2-inch panel makes 6 inches of total depth, a quarter wavelength at about 565 Hz at Auralex’s 1,130 feet per second (1,130 × 12 ÷ 4 ÷ 6 = 565).
Deeper gaps need more hardware and spacer blocks, and they leave the panel standing farther off the wall.
How Much Air Gap for Mid and High Frequencies?
For mid and high frequencies, the flush figures above already run high, so a gap is optional.
If your goal is general reverb control rather than a bass problem, mount with whatever gap your Z-clips or French cleats leave, and skip the spacer blocks.
What Happens If the Air Gap Is Too Large or Too Small?
Too small (less than 1 inch): the gap adds less than an inch to the panel’s own depth.
Too large: the problem is structural.
Panels mounted far from the wall can wobble or resonate, and practical mounting becomes difficult.
How Do You Create an Air Gap When Installing Acoustic Panels?
Four hardware decisions shape the result: which bracket type to use, whether Z-clips suit the panel weight, how French cleats compare to impaling clips, and how to keep every gap uniform.

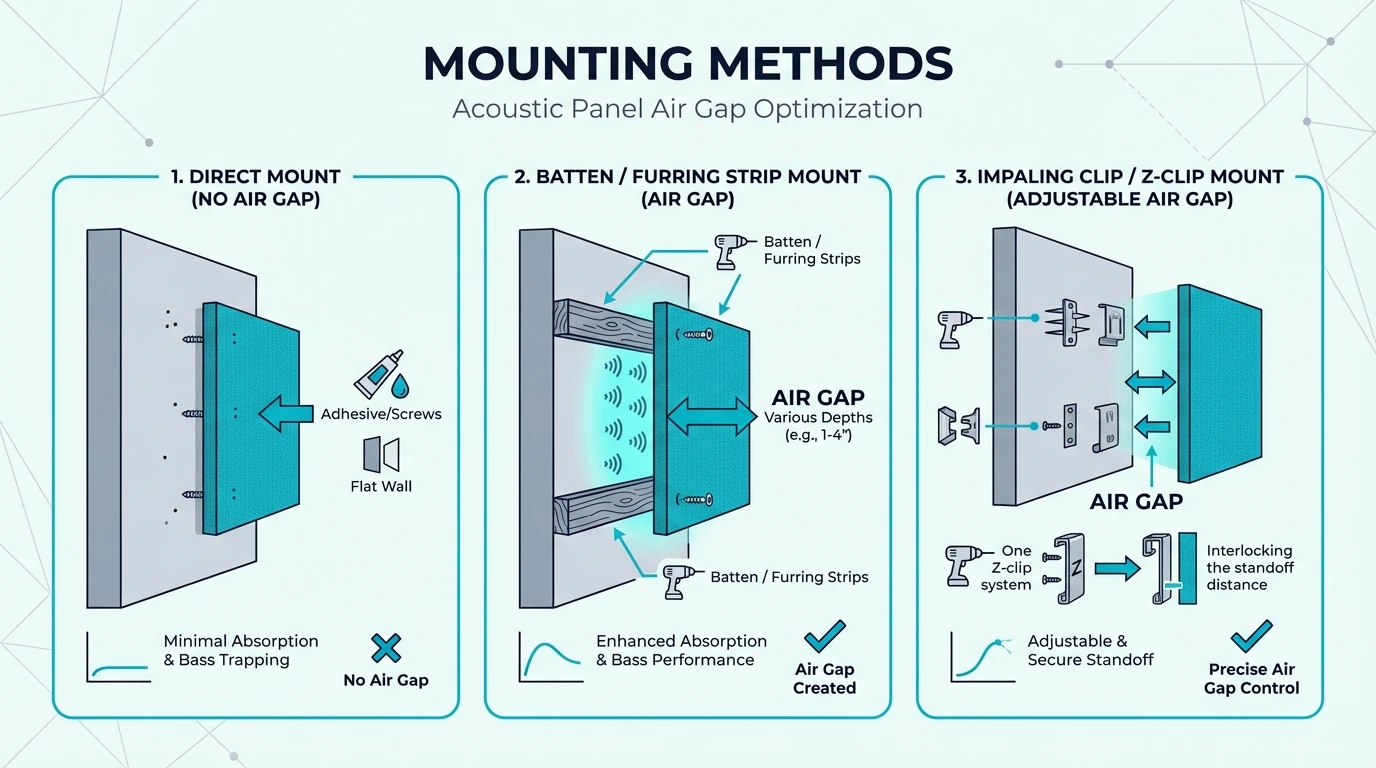

What Mounting Hardware Creates the Best Air Gap?
Several options work, each with its own trade-offs in complexity and adjustability.
French cleats or Z-hangers combined with wooden spacer blocks create adjustable, secure mounting with any gap size you need.
Wood standoffs (1×2 or 2×2 lumber strips) provide the simplest DIY solution.
Mount strips to the wall, then mount panels to the strips. Gap size equals your lumber thickness.
If you want a fiberglass set for this spacing, UMIACOUSTICS 4 PCS Acoustic Panels with Hanging Brackets is the kind of panel pack that pairs well with a measured air-gap install.
UMIACOUSTICS 4 PCS Acoustic Panels with Hanging Brackets
Can You Use Z-Clips for Air Gap Installation?
Yes, Z-clips work for air-gapped mounting.
Add spacer blocks behind the wall-mounted Z-clip for a larger gap than the clip gives on its own.
The interlocking design makes leveling easy and allows panel removal for cleaning or repositioning. For studios where you might adjust treatment over time, Z-clips offer valuable flexibility.
What About French Cleats vs Impaling Clips?
French cleats create natural gaps through their angled profile, and the gap depends on the cleat depth.
They suit heavy panels that need secure mounting.

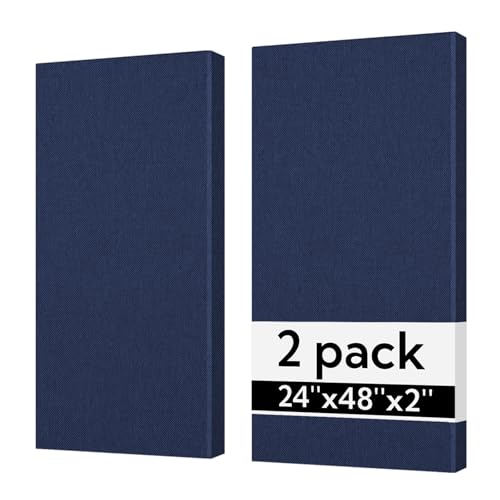

That secure-mount point matters more with larger fiberglass units like Olanglab Sound Absorbing Acoustic Wall Panels (2-Pack), where the hardware has to carry more size and leverage than a compact foam tile.
Olanglab Sound Absorbing Acoustic Wall Panels (2-Pack)
Longer cleats spread the load across more wall area, which matters once you move beyond small panel sizes.
Impaling clips (spike-style mounts) typically create minimal gap—they’re designed for flush mounting foam, not air-gapped fiberglass panels. For air gap installation, choose Z-clips or cleats over impaling clips.
How Do You Maintain Consistent Air Gap Spacing?
Consistent spacing keeps a row of panels looking even.
If you’re also deciding how far apart to place panels from each other, the acoustic panel spacing guide covers that separately from air gaps.
It also helps to decide the panel size before you cut spacers.
Cut spacer blocks to identical sizes using a stop block on your saw.
Pre-measure and mark wall positions before mounting any hardware.
Use a level across multiple mounting points to ensure uniform depth.
For large installations, create a jig—a piece of scrap at your target gap width that you hold against the wall while positioning each panel.
When mounting a full row, an interlocking cleat system helps keep every panel at the same standoff distance because the hardware self-levels across the row.

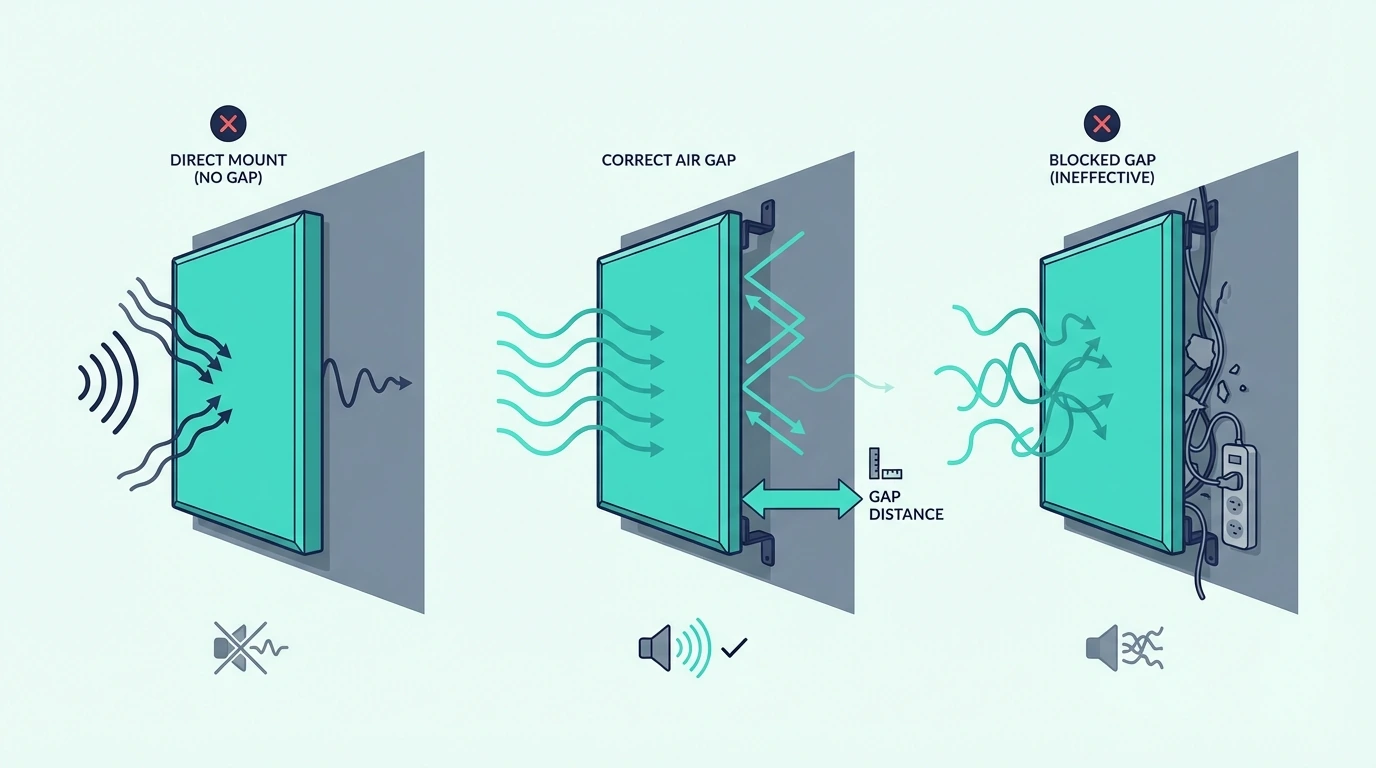

What Are Common Air Gap Mistakes to Avoid?
Two questions trip up most first-time installers: whether flush mounting is ever acceptable, and whether too much gap can backfire. A comparison table at the end puts the hardware options side by side.
Is Mounting Panels Flush to the Wall Ever Acceptable?
Yes—flush mounting is fine when: – Treating primarily for voice frequencies (podcasting, speech) – Using thick panels (Owens Corning gives its 703 board 0.56 at 125 Hz at 4 inches thick, against 0.15 at 2 inches) – Space is limited and any gap would be impractical – Aesthetics require panels tight to the wall
Flush mounting isn’t wrong. If bass isn’t your problem, flush works fine.
Can Too Much Air Gap Hurt Performance?
In practice, the mounting limits the gap before anything else does.
The real risk with large gaps is structural: panels mounted far from walls can wobble, resonate, or even fall if hardware isn’t adequate. Use mounting hardware rated for the panel weight.

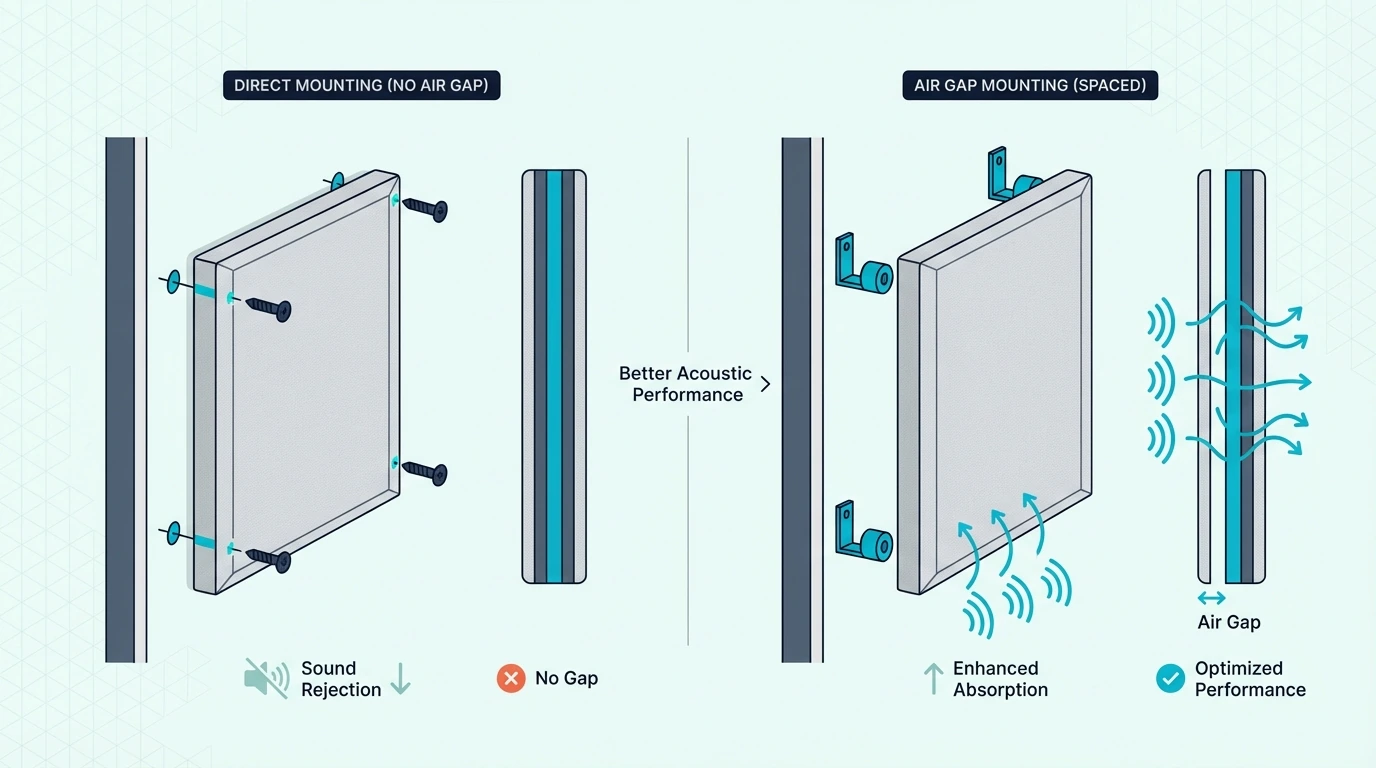

Mounting Hardware Comparison
| Method | Adjustability | Best For |
|---|---|---|
| Z-Clips | Medium | Light panels, easy removal |
| French Cleats | Medium | Heavy panels, secure mount |
| Wood Standoffs | Low | DIY, exact gap control |
| Furring Strips | Low | Multiple panels, consistent gaps |
| Metal Brackets | High | Commercial installations |
Z-clips and French cleats suit residential installs because they balance adjustability and hold strength. Wood standoffs win on precision — cut them to the exact gap width and every panel sits at the same depth.
Metal brackets are built for commercial installations, where heavy 4-inch fiberglass panels need that load rating. Furring strips are the fastest option when treating an entire wall with uniform spacing.
Conclusion
Which air gap size to use depends on the frequency range causing problems. Music studios and mixing rooms with bass problems are where the deeper gaps go, at first reflection points — the recording studio panels guide has specific product picks for that setup.
Home theaters take them behind the main listening position. For general reverb control, the small gaps standard Z-clips or French cleats leave need no extra spacers.
Voice-only recording rooms can skip the gap entirely and mount flush. The added hardware is for rooms where bass frequencies are the problem.
The panel placement guide covers where to position panels, and the best acoustic panels guide shows how little bass a 2-inch panel catches flat on the wall.
Frequently Asked Questions
Do Foam Panels Need an Air Gap?
Not necessarily: Auralex’s Studiofoam guide mounts its foam straight onto walls and ceilings with tabs or adhesive.
For foam itself, Auralex says thicker acoustic foam is better at absorbing low frequency sounds.
If you’re using foam and dealing with bass problems, check the foam’s thickness before the gap.
Can You Adjust Air Gap After Installation?
With Z-clips or French cleats, yes—you can add or remove spacer blocks behind the wall-mounted hardware. With wood standoffs permanently mounted, adjustment requires reinstallation.
If you’re uncertain about ideal gap size, use adjustable mounting that allows experimentation. Test different gaps and listen to the difference in your specific room.
Does Air Gap Affect Panel Aesthetics?
Panels mounted with air gaps sit further from the wall, creating visible shadows and depth.
The deeper the gap, the farther the panel stands off the wall. If appearance matters, check how the gap will look before you mount.
The 2-inch vs 4-inch comparison covers how panel depth interacts with air gap size.
Will Air Gap Cause Panels to Resonate or Rattle?
With secure mounting hardware, no. Panels should be securely attached with hardware rated for their weight.
Resonance problems typically indicate inadequate mounting—not air gap issues.
If panels vibrate audibly at certain frequencies, add more mounting points or switch to heavier-duty hardware — the installation guide covers techniques rated for any gap size.
