To make acoustic panels at home, you need four materials: 1×4 lumber for the frame, 2-inch rigid mineral wool insulation, acoustically transparent fabric, and a staple gun.
DIY acoustic panels depend on the right core material, because the wrong insulation type produces panels that look identical but barely absorb anything.
Products in this guide
- NIOSH-approved N95 protection
- Made in USA quality
- Anti-fog lens stays clear
- Comfortable dual-mold fit
- Easy install with included screws
- Supports up to 30 pounds
Most DIY builds fail quietly: the room still sounds boxy, the echo is still there, and the builder doesn’t understand why. It happens because open-cell foam and polyester batting have a fraction of the absorption of correct mineral wool or rigid fiberglass — the cause is always the core, not the frame or the fabric.
The sections below cover the measurements, materials and mistakes to avoid, whether you’re treating a home studio, a podcast room, or a home theater.
The entire build takes 1-2 hours per panel with basic tools. ROCKWOOL lists an NRC rating of 1.00 for its 2-inch Rockboard 60 stone wool board.
Can You Really Make Professional Acoustic Panels at Home?
Yes — a DIY panel is just rigid insulation wrapped in fabric and held in a wooden frame. Two things to check first are how much insulation one panel uses and the skill level required.
How Much Insulation Does One Panel Use?
One board for a 24 x 48-inch panel: ROCKWOOL makes Rockboard 60 in 24 x 48-inch boards, 2 to 4 inches thick.
What Skill Level Do You Need?
Basic woodworking skills are sufficient. If you can measure, cut straight lines, and use a staple gun, you can build acoustic panels.
No specialized tools required — a hand saw works fine if you don’t have a miter saw. The most challenging part is stretching fabric smoothly, which takes practice on the first panel but becomes intuitive quickly.
Plan 1-2 hours for your first panel as you learn the process. Subsequent panels take 30-45 minutes each.
Building a batch of 4-6 panels in one session is most efficient.

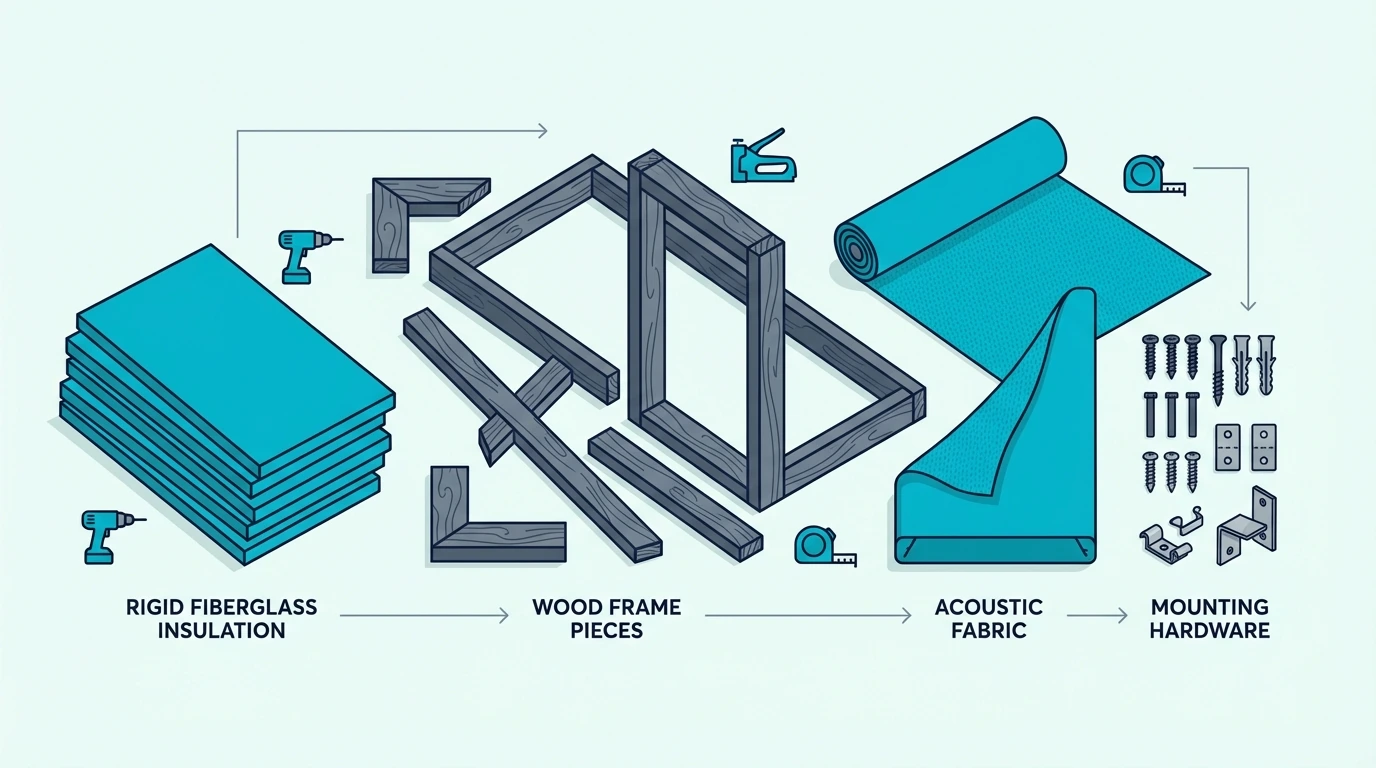

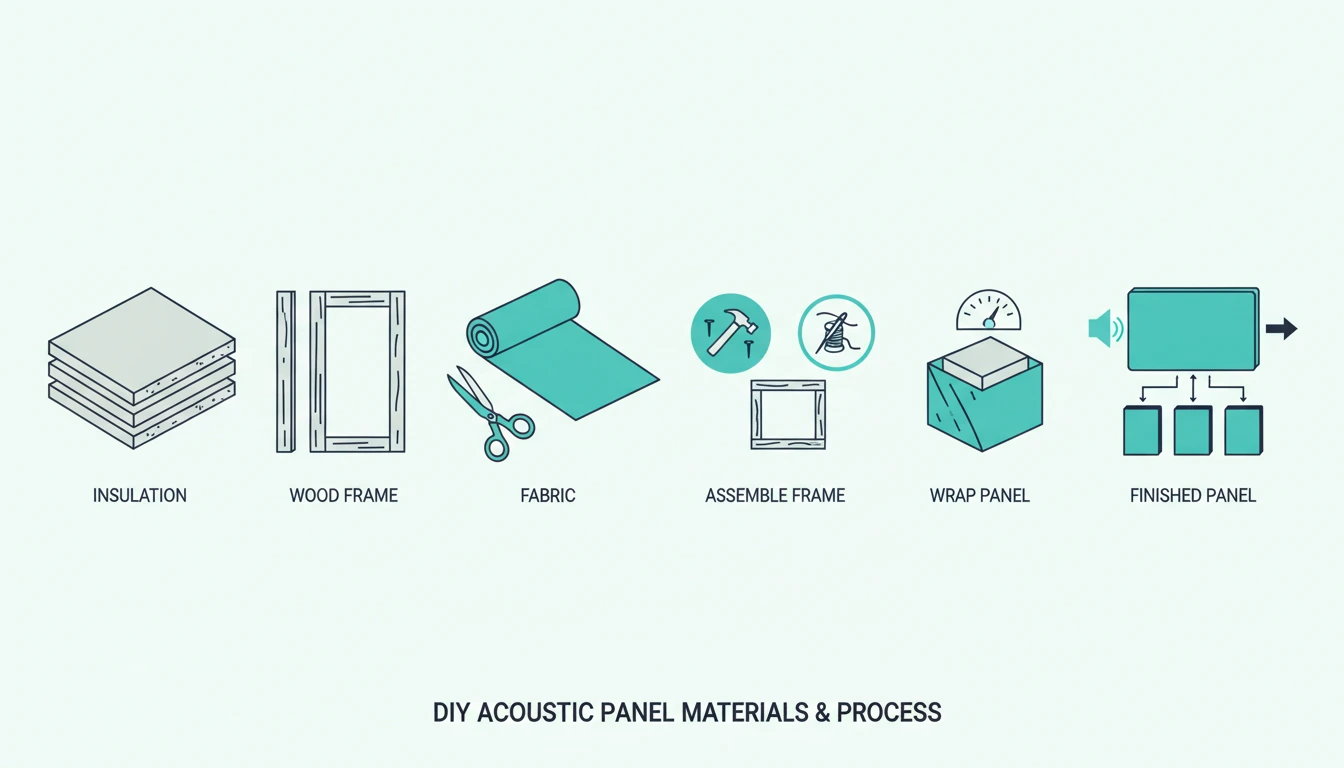

What Materials Do You Need to Make Acoustic Panels?

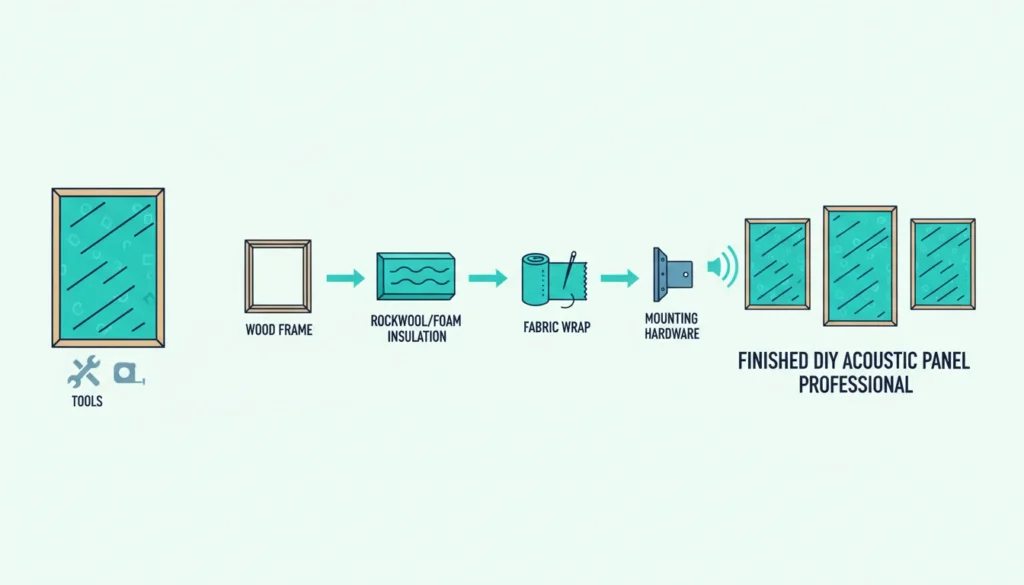

Four components make up a DIY panel: insulation core, wood frame, fabric wrap, and fasteners. The insulation choice has the biggest impact on sound absorption — the other three mainly affect durability and appearance.
What Type of Insulation Should You Use?
Rigid mineral wool is the gold standard for DIY acoustic panels. It absorbs well, cuts cleanly, and doesn’t shed loose fibers the way fiberglass batts do.
Rigid Mineral Wool Board (Rockboard 60): This denser, fully rigid option holds its shape better and doesn’t require as much frame support. Plain mineral wool batts at 2-inch thickness also work for panel builds, as long as the frame and fabric hold them in shape.
The thickness gap between 1-inch and 2-inch panels is real — 2-inch cores absorb mid frequencies that thinner panels miss entirely.
What Wood Works Best for the Frame?
Standard 1×4 lumber (which actually measures 3/4” x 3-1/2”) works perfectly for panel frames. Choose straight boards without real warping — sight down the length at the store to check.
Pine works well, and poplar offers straighter boards with fewer knots.
Avoid pressure-treated lumber — the chemicals aren’t necessary indoors and make the wood harder to work with.
Which Fabric Should You Choose?
Fabric must be acoustically transparent — meaning sound passes through it rather than bouncing off.
Blowing through the fabric is only a rough first check. Carnegie, a maker of acoustical panel textiles, says there is no scientific backing for the blow-through test, and that a fabric should instead be evaluated by a third party to ASTM C423 and carry an NRC rating.
Guilford of Maine FR701: The industry standard for commercial panels. Available in dozens of colors, inherently fire-resistant, and designed specifically for acoustic applications.
Burlap: An option with natural texture. Works acoustically but frays more easily than purpose-built acoustic fabrics like FR701.
Where Can You Buy These Materials?
Mineral wool insulation: Home Depot, Lowes, or local building supply stores. Call ahead — not all locations stock it.
Lumber: Any home improvement store. Buy a few extra feet to account for cutting mistakes.
Fabric: Online fabric retailers, local fabric stores, or specialized acoustic fabric suppliers.
How Do You Build the Wooden Frame?
With materials gathered, the build starts with the frame — it provides structure and gives you a surface to staple fabric to. Get the dimensions right and keep every corner square, because a twisted frame guarantees wrinkled fabric later.
What Are the Best Dimensions for DIY Panels?
Standard sizes work best for both efficiency and aesthetics:
24” x 48”: The most common size. Fits standard insulation dimensions, covers good wall area, and remains manageable weight.
24” x 24”: Good for flexible placement and smaller rooms. Easier to handle solo.
48” x 48”: Maximum coverage per panel, but heavier and harder to mount. Best for permanent installations.
Match your frame dimensions to your insulation size to minimize cutting. Most rigid mineral wool comes in 24” widths.

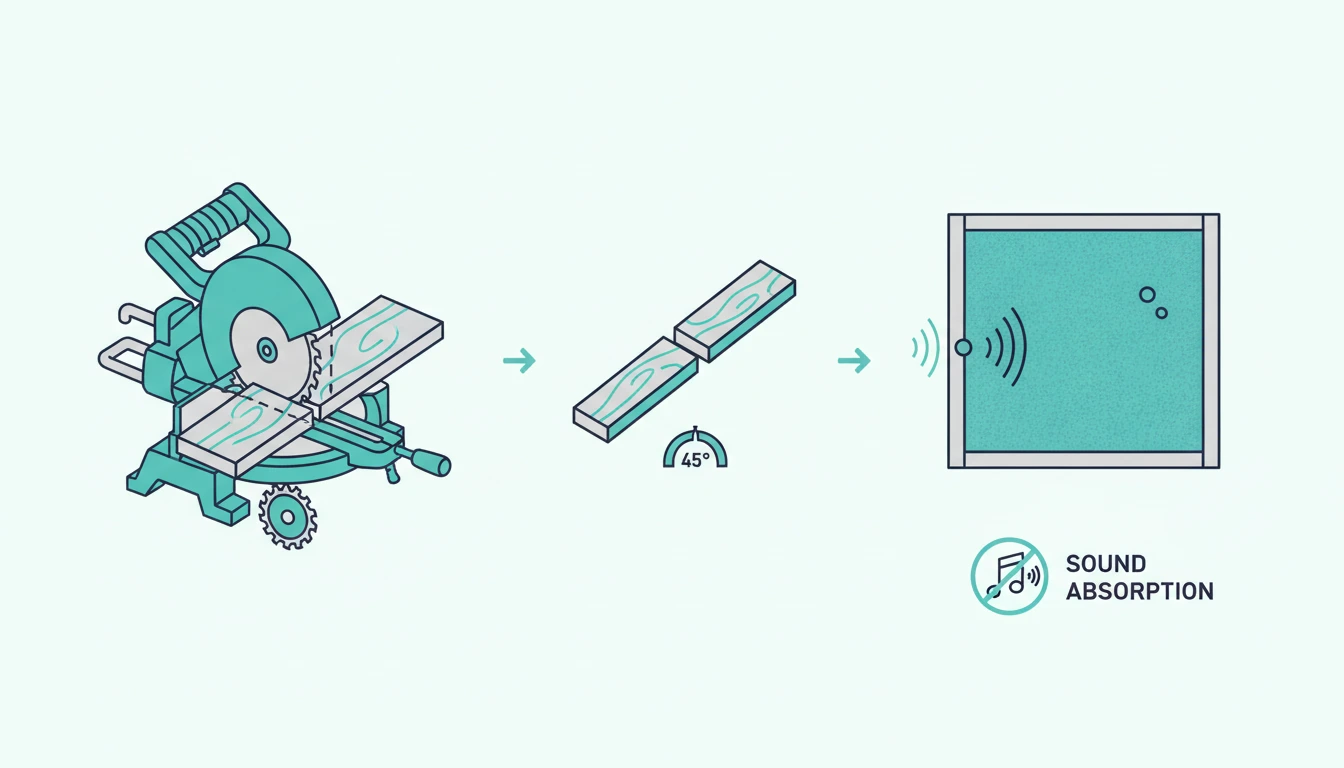

How Do You Cut and Assemble the Frame?
For a 24” x 48” panel with 1×4 lumber:
Cut list: Two pieces at 48” (sides), two pieces at 22-1/2” (top and bottom — accounting for the wood thickness at corners).
Assembly options:
- Pocket screws: Strongest joint, requires a pocket hole jig
- Corner brackets: Easiest method, available at any hardware store
- Wood glue + screws: Simple and effective for lighter panels
Check corners with a framing square before the glue sets. A twisted frame creates fabric wrinkles that are impossible to fix later.

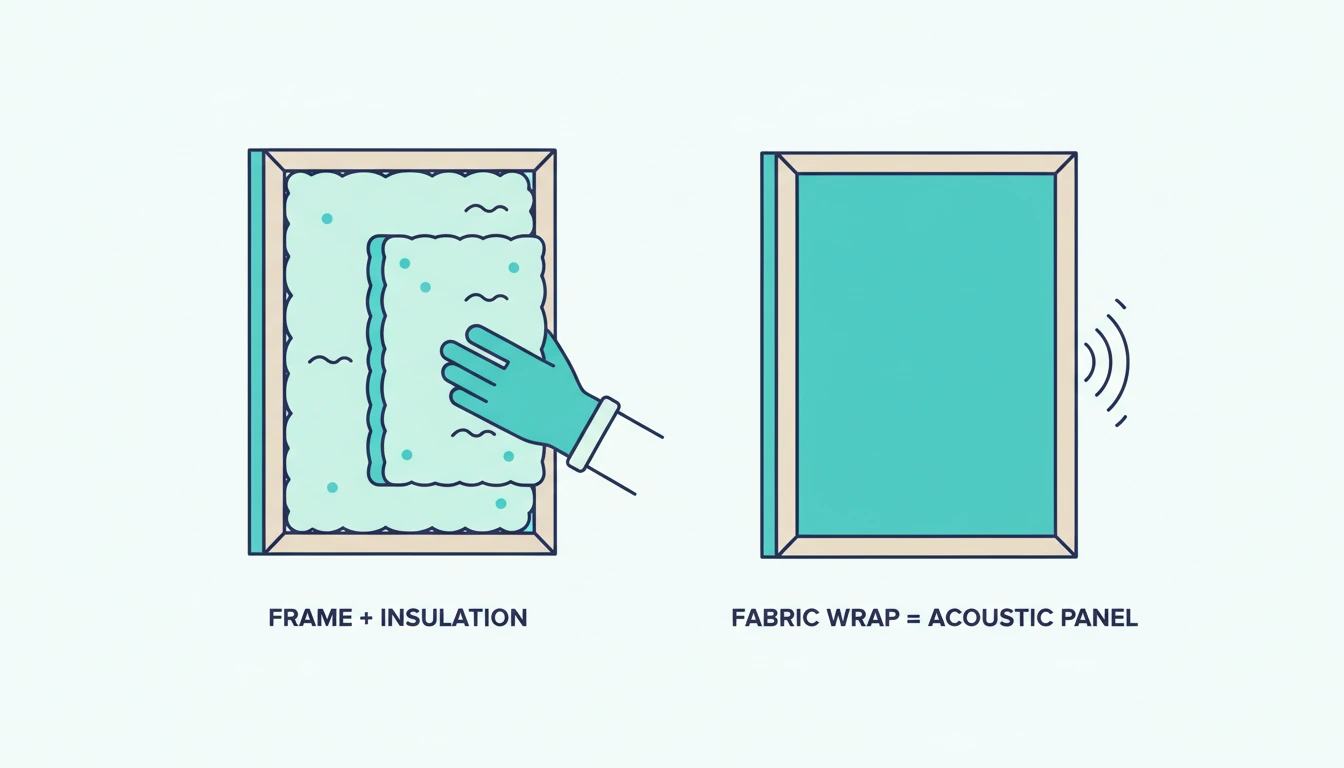

How Do You Add the Acoustic Insulation?
The insulation is where the actual sound absorption happens — the frame and fabric just hold this critical layer in place. Cutting mineral wool to size takes one tool and a few minutes, but you need correct protection before you touch it.
How Do You Cut Insulation to Size Safely?
Measure your frame’s interior dimensions and cut insulation slightly oversized — about 1/4” extra on each side. The friction fit holds the insulation in place without adhesive.
Cutting technique: Use a long serrated knife (a bread knife works) or a drywall saw. Score deeply on one side, then snap along the line.
Clean cuts aren’t critical since fabric covers everything.
What Safety Gear Do You Need?
Mineral wool fibers irritate skin and lungs. Wear:

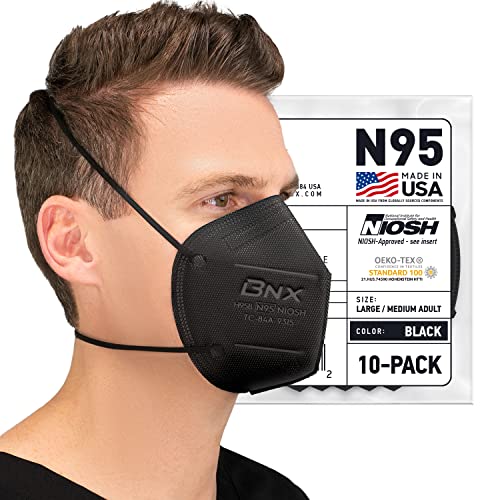

- N95 respirator mask (NIOSH approved)

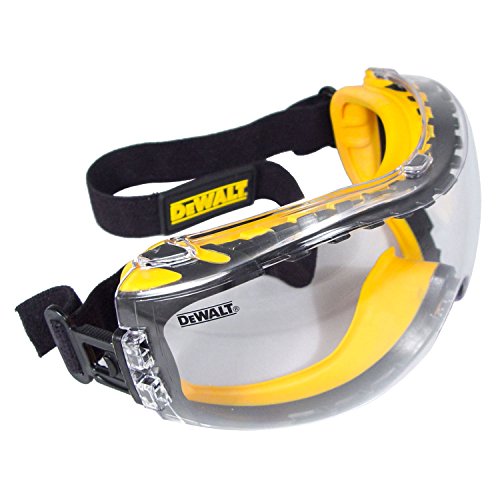

- Safety glasses with anti-fog
- Long sleeves and work gloves
Work outdoors or in a well-ventilated area. The fibers settle quickly — just vacuum the work area when you’re done.
How Do You Wrap the Panel in Fabric?
Rushed fabric work always shows, so this step deserves more patience than any other. The two skills that matter most are even tension across the face and clean corner folds.

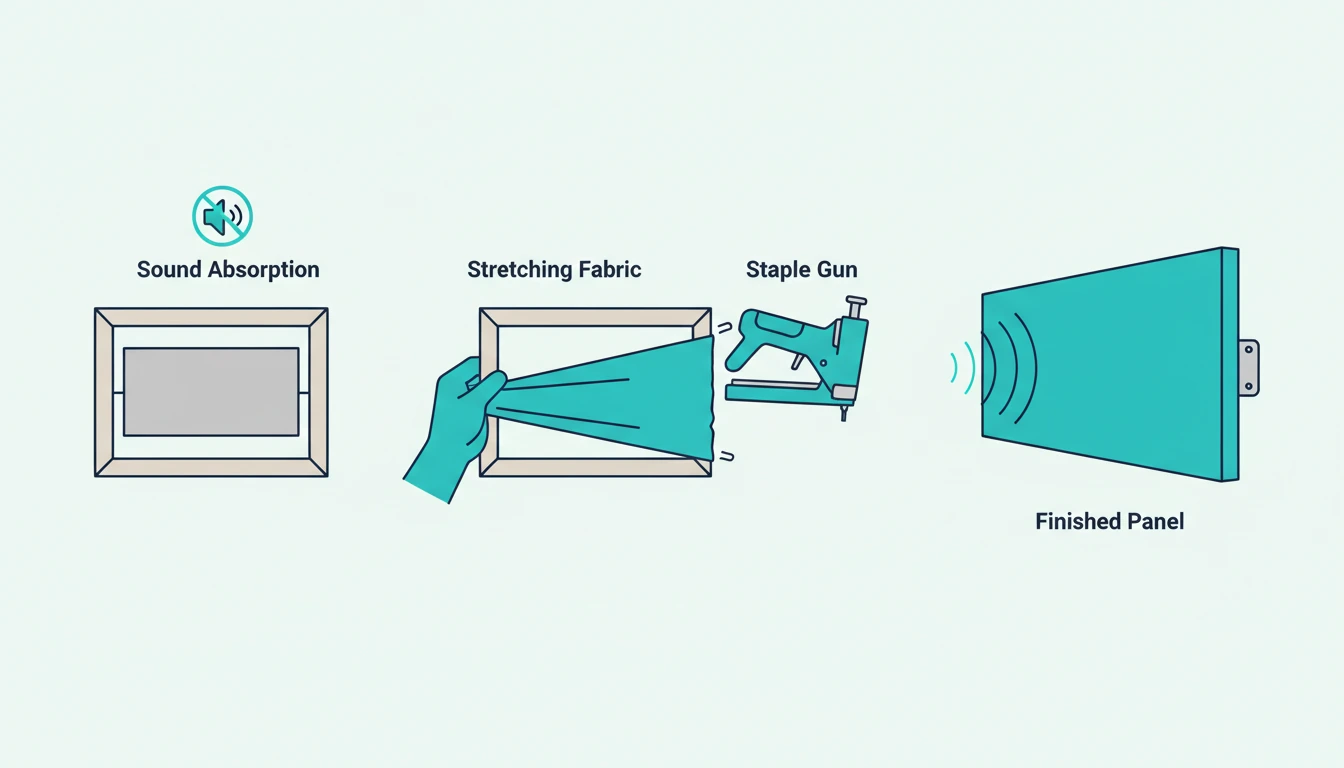

What’s the Best Method to Stretch Fabric Tight?
Cut fabric 4-6 inches larger than ythe panel on all sides. This extra material gives you grip for stretching.
Step 1: Lay fabric face-down on a clean surface. Center the panel (insulation side down) on the fabric.
Step 2: Starting at the center of one long side, pull fabric over the frame and staple. Move to the opposite side, pull tight, and staple at center.
Step 3: Repeat for the short sides. You should now have four staples holding the fabric taut.
Step 4: Work outward from center on each side, pulling and stapling every 2-3 inches. Keep tension even to avoid waves or wrinkles.
How Do You Get Clean, Professional Corners?
Corners are where amateur builds show — one method handles every one cleanly:
Hospital corner method: Fold the corner fabric at 45 degrees, creating a diagonal seam that runs from the corner to the frame edge. Staple the diagonal fold, then fold the remaining flaps over and staple flat.
Practice on scrap fabric first. The motion becomes natural after 2-3 corners.
How Do You Mount Your Homemade Panels?
Ythe panels are built — now it’s time to get them on the wall. The mounting method you choose depends on wall type and whether you want easy removal later.
Which Mounting Method Works Best?

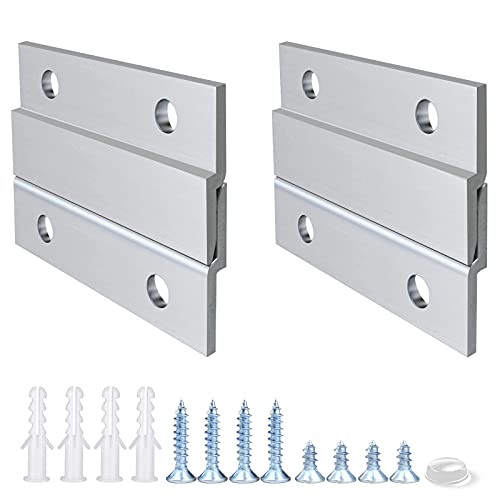

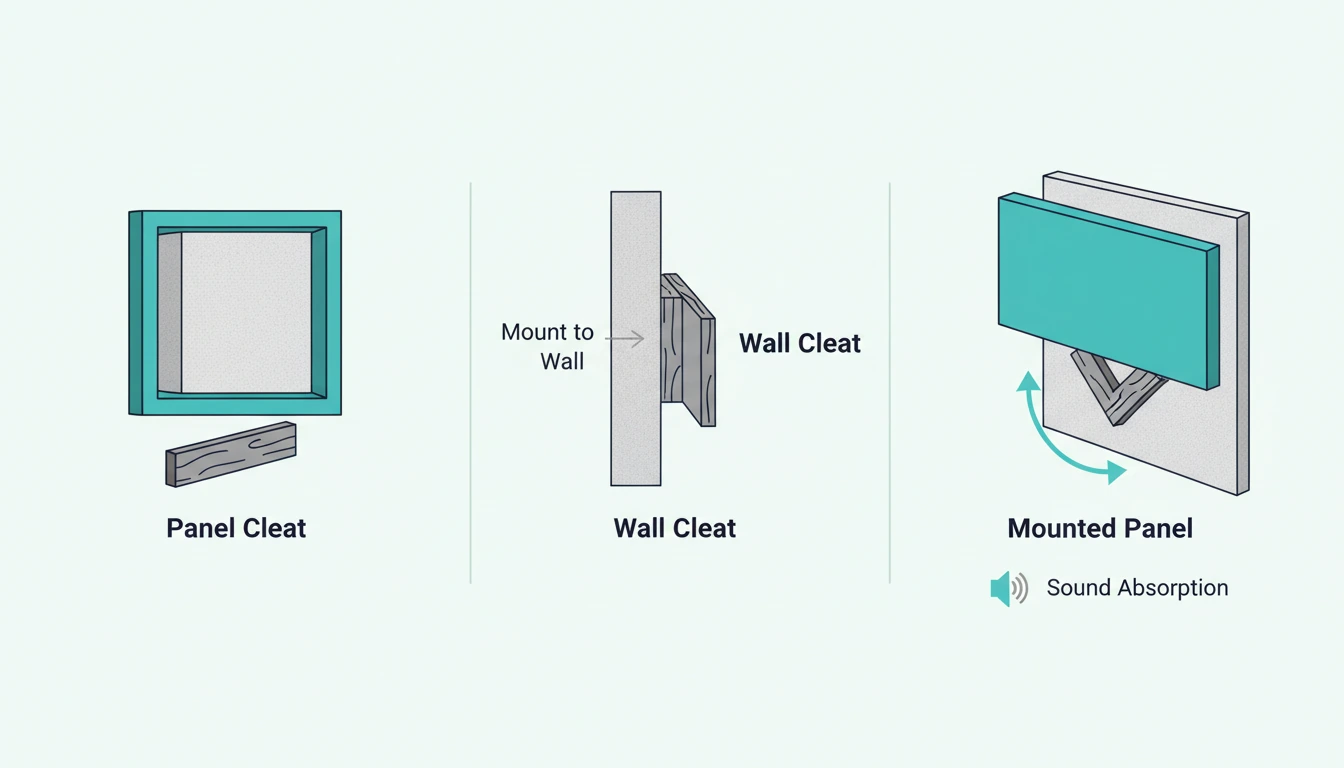

French cleats: The most secure option for heavy panels. The French Cleat Aluminum Z-Hangers come 2 pairs to a pack, and the listing says a 2-inch hanger supports up to 30 pounds.
French Cleat Aluminum Z-Hangers
The listing adds that a frame too wide or too heavy may need 2 mounts.
Picture hanging wire: Works for lighter panels.
Direct mounting: Screws through the frame into wall studs — the most permanent option, covered in depth in the installation guide.
Can You Hang DIY Panels Without Drilling?
Only for small, thin panels. 3M designs its Command picture-hanging strips for frames up to 24 x 36 inches and doesn’t recommend them on bare wood or porous, unpainted surfaces, and its 20 lb strips’ sheet rules out objects more than 2 inches thick and strips on fabric surfaces.
For larger panels, drilling is recommended for safety — and placement matters as much as mounting method, so plan your positions before you start.

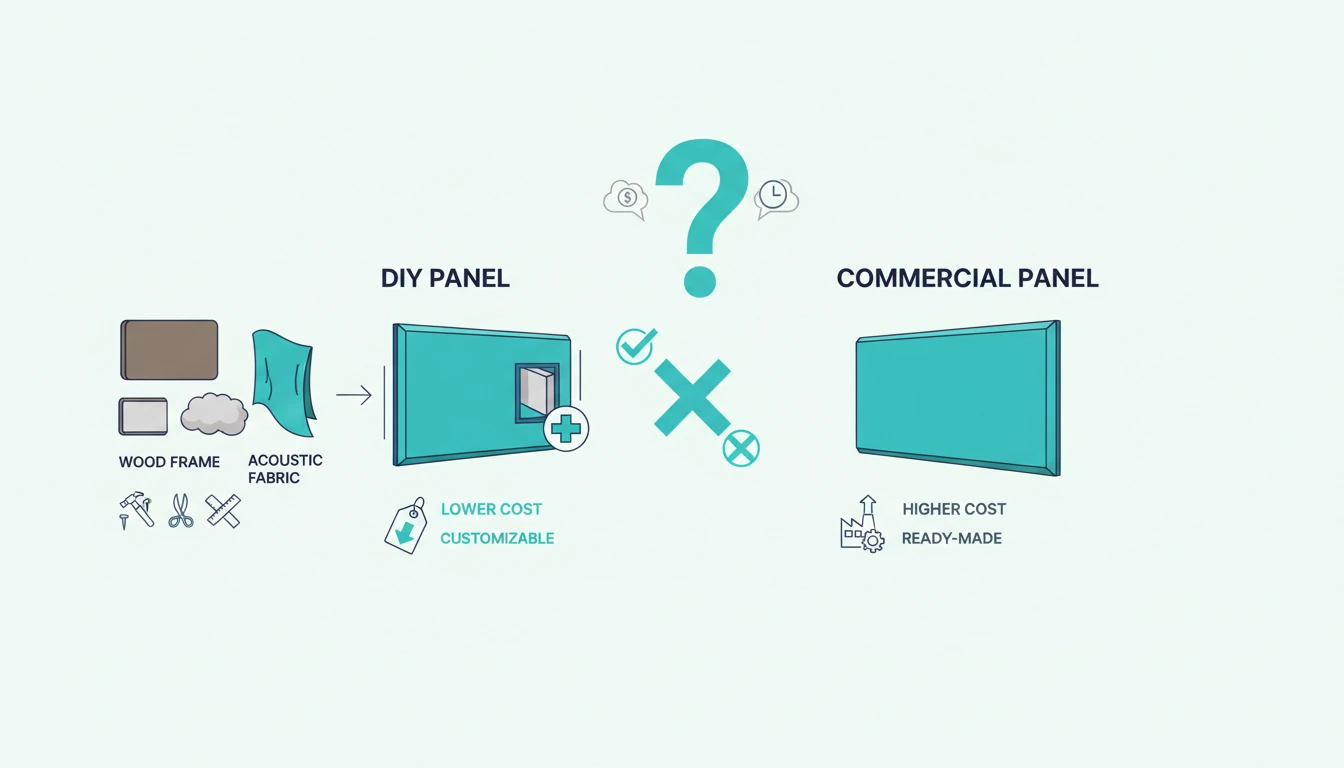

How Do DIY Acoustic Panels Compare to Commercial Options?
The short answer: a panel scores about what its core does. ATS lists an NRC of 1.00 for its 2-inch panel, a ROCKWOOL AFB core in jute fabric tested independently by RAL, and ROCKWOOL lists 0.95 for 2-inch AFB on its own.

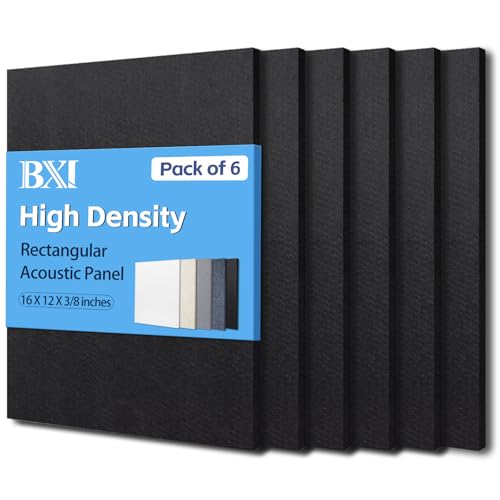

If DIY isn’t for you, ready-made panels deliver comparable performance without the build time, and the full roundup sets ready-made picks beside Owens Corning’s 703 board, with the figures their makers publish.
What Are the Most Common DIY Mistakes to Avoid?
Most DIY panel failures trace back to two decisions: insulation choice and fabric selection. Both mistakes are completely avoidable once you know what to look for.
Can Wrong Materials Ruin Your Panels?
Yes. The biggest mistake is using the wrong insulation:
Don’t use: Fiberglass batting (the pink fluffy stuff), foam boards, or polyester fill. These materials have poor acoustic properties and won’t absorb much below the high-frequency range.
Do use: Rigid mineral wool (Rockwool/Roxul) or dense fiberglass boards (Owens Corning 703). The density matters — acoustic insulation is denser than thermal insulation.
Does Fabric Choice Affect Sound Absorption?
Absolutely. Pick a fabric with third-party ASTM C423 test results and an NRC rating, which is what Carnegie recommends instead of blowing through it.
Fabric that blocks airflow also blocks sound from reaching the insulation.
Avoid canvas, vinyl, or tightly-woven fabrics. Stick with acoustically-transparent options like speaker cloth, burlap, or Guilford of Maine.
Conclusion
Panels are done — maximizing their impact depends on placement and quantity.
Test placement before permanent mounting: Lean panels against walls and listen to how the room sounds. Move them around to find best positions before drilling any holes.
Prioritize first reflection points — the spots on side walls where sound from your speakers bounces to your listening position. the hanging guide covers how to find and mark these positions accurately.
One panel won’t transform a room. Most home studios need 6-12 panels for meaningful treatment — use the calculator on that page to get an exact count for your space.
The same frame-insulation-fabric method works for bass traps as well as panels — just swap in 4-inch mineral wool and build deeper frames.
Ceiling clouds are just panels mounted horizontally.
Frequently Asked Questions
How Long Does It Take to Make One Panel?
Plan 1-2 hours for your first panel as you learn the process. Once you’ve built a few, subsequent panels take 30-45 minutes each.
Batch building (making 4-6 at once) is most efficient since you can cut all wood, then cut all fabric, then assemble — rather than switching tasks repeatedly.
Do Homemade Panels Work as Well as Commercial Ones?
Yes — when you use correct materials. ATS lists an NRC of 1.00 for its 2-inch panel, a ROCKWOOL AFB core in jute fabric tested independently by RAL.
ROCKWOOL lists 0.95 for 2-inch AFB on its own, so the panel scores about what its core does.
What’s the Minimum Thickness That Actually Works?
Two inches is the minimum for effective broadband absorption. Thinner panels only absorb high frequencies, leaving problematic mid and low frequencies untreated.
For bass trapping, 4-inch or thicker panels are necessary. The extra depth extends absorption into lower frequencies where thin panels fall off sharply.
Can I Make Panels Without a Frame?
Rigid mineral wool boards can be wrapped directly in fabric without a frame. This works but has limitations: the panels are more fragile, harder to mount securely, and the fabric tends to loosen over time.
A frame improves durability and appearance.
