DIY acoustic panels are built from rigid fiberglass or mineral wool, a frame and fabric.
Best DIY acoustic treatment for home studio builds comes down to the right materials and panels placed where they matter — bare walls covered in random panels do almost nothing compared to targeted treatment at the spots where reflections cause the most damage.
The problem most home studio builders face is not a lack of panels — it is panels made from the wrong material, placed in the wrong locations. A room full of thin foam squares looks treated but still sounds muddy and boxy because foam does not absorb the low-mid frequencies where most room problems live.
DIY panels built from rigid fiberglass or mineral wool boards solve the actual acoustic problems. Owens Corning gives its 2-inch, 3 lb per cubic foot 703 board an NRC of 1.00 mounted against a solid backing; Auralex’s Acoustics 101 notes that an NRC is an average of absorption coefficients, not a percentage.
A 4-inch bass trap in the corners controls the low-frequency buildup that makes mixes translate poorly to other systems.
Below you will find the complete materials list, step-by-step build instructions, and placement priorities for a full home studio treatment. Start with two panels at the first reflection points on the side walls.
Build 2-inch thick panels for wall reflections and 4-inch thick bass traps for corners. Place panels at first reflection points first, then add bass traps, then treat the ceiling. A full home studio treatment is 8-10 panels plus bass traps.
The descriptions come from the makers’ manuals and spec pages.
Every pick met Burton Acoustix’s rating, review and stock checks on 9 November 2026.

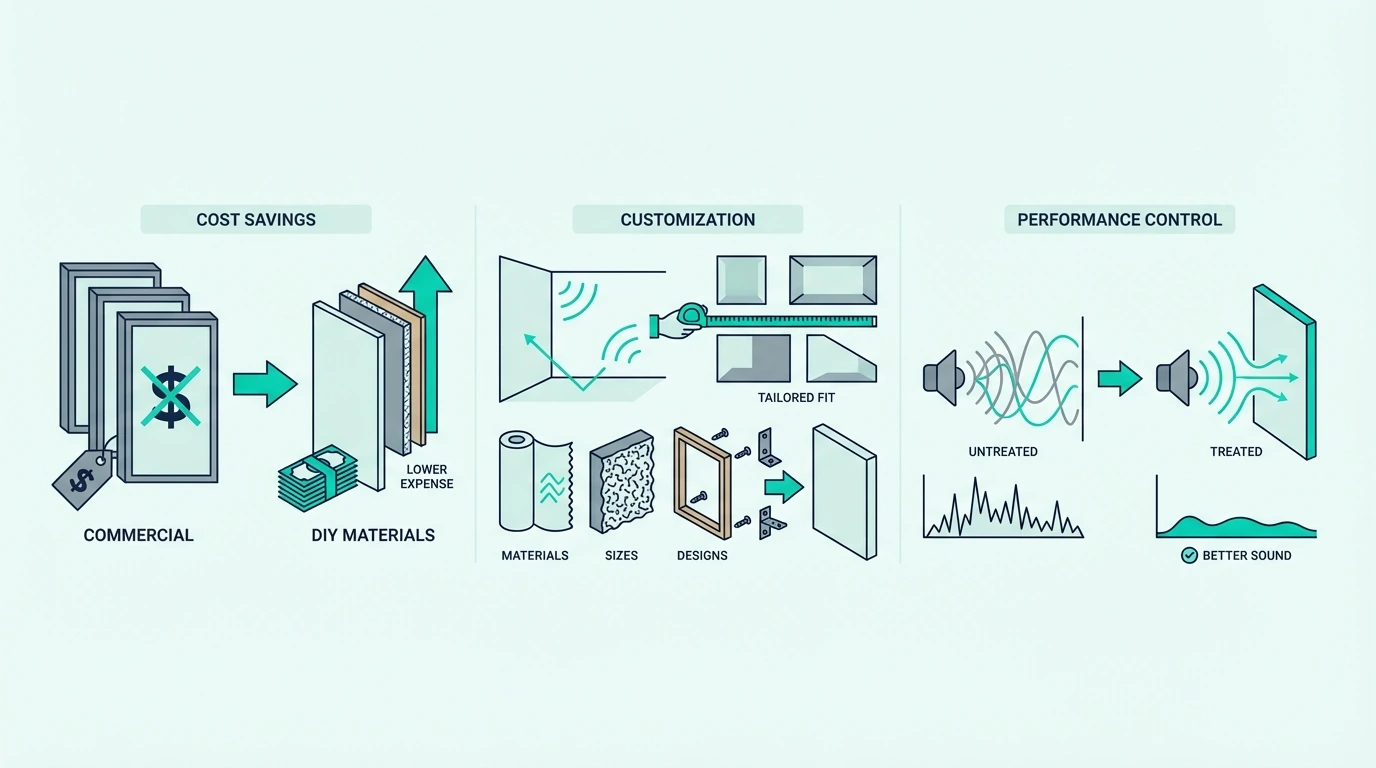

Why DIY Is The Smart Choice For Home Studio Treatment
With DIY panels you choose the insulation material and thickness yourself.
Commercial panels add a finished look and packaging around an insulation core.
The tradeoff is time and effort. Building panels requires basic tools, a workspace, and a few hours of construction time.
If you would rather not build, pre-built kits arrive ready to hang.
The DIY vs ready-made panels guide compares the two.

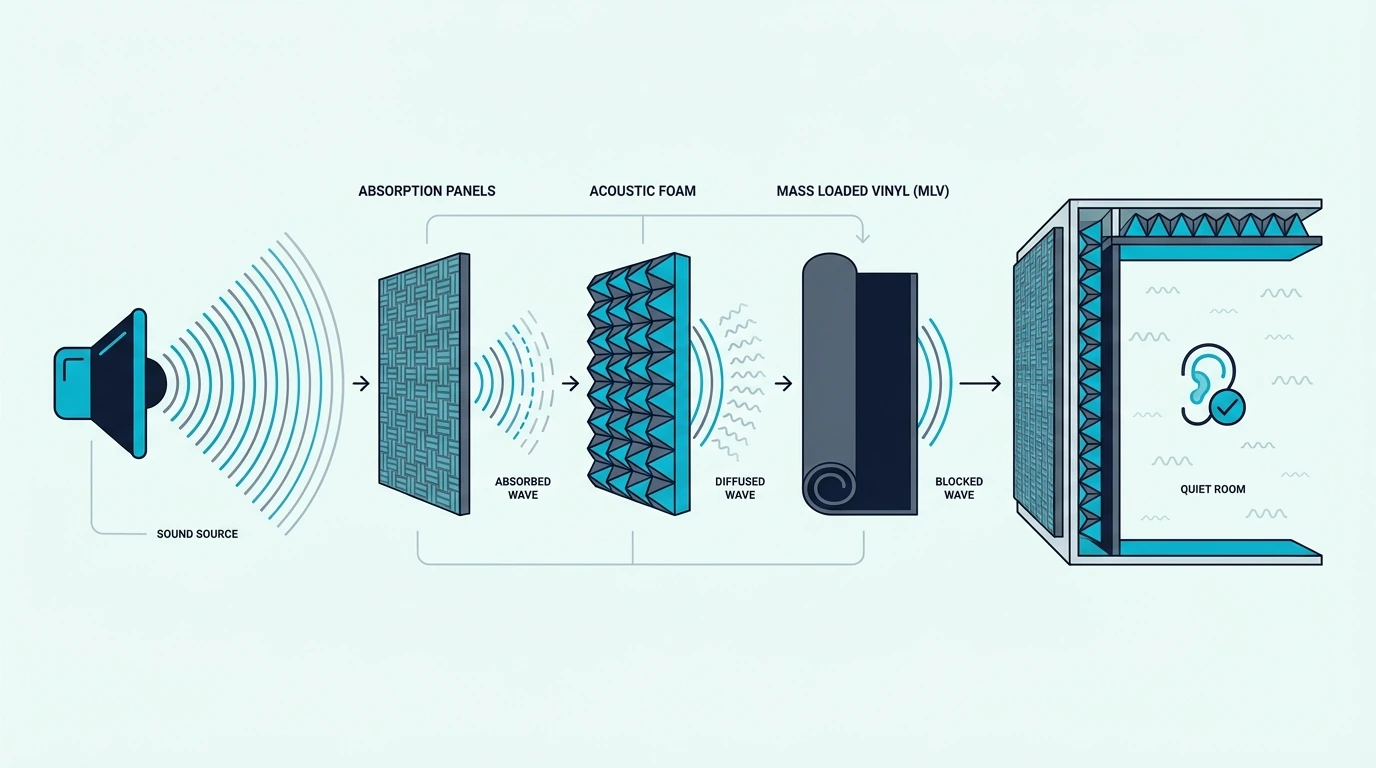

What Materials Do You Need For DIY Acoustic Panels
Every DIY acoustic panel has three components: insulation core, frame, and fabric covering. The insulation does the absorbing; the frame is structural, and the fabric has to let sound through to it.
Insulation — Rockwool vs Fiberglass
The two standard insulation materials for DIY acoustic panels are rigid fiberglass (like Owens Corning 703) and mineral wool (like Rockwool or Rockboard). Both work well.
The choice comes down to what is available in your area.
Rigid fiberglass at 3 lb per cubic foot density is the traditional recommendation. Owens Corning gives 703 at 2 inches thick an NRC of 1.00, mounted against a solid backing.
It holds its shape, cuts cleanly with a bread knife, and fits into frames without compression.
Mineral wool at similar densities performs nearly identically.
Owens Corning 703 semi-rigid fiberglass boards come 2 inches thick in this 6-pack, ready to cut and drop into a frame, at 3.0 pounds per cubic foot, per Owens Corning. Owens Corning’s own table puts 2-inch board at 0.15 at 125 Hz and 4-inch at 0.56, so bass traps want the thicker board.
Rockwool Safe’n’Sound batts from hardware stores are the other option. They are not rigid boards — they are flexible batts that need a frame to hold their shape.
ROCKWOOL makes Safe’n’Sound 3 or 6 inches thick and gives the 3-inch batt an NRC of 1.10.
The fiberglass treatment guide and the Rockwool treatment guide cover each material in detail including NRC data, handling tips, and sourcing options.
Frame Lumber And Hardware
Standard wall panels use 1×4 lumber (actual dimensions 3/4 x 3-1/2 inches) for the frame. This creates a frame depth of approximately 3.5 inches — enough for a 2-inch insulation board with air space behind it.
For thicker bass traps, use 1×6 or 2×4 lumber. A 2×4 frame accommodates 4 inches of insulation or two stacked 2-inch boards.
Hardware list per panel: – 4 pieces of 1×4 lumber cut to size (two at 48 inches, two at 22.5 inches for a 24×48 panel) – 8 wood screws (2.5 inch) – 2 L-brackets or corner braces (optional but add rigidity) – 2 picture hanging D-rings with screws – Corresponding wall anchors or hooks
Fabric — What Works And What Does Not
The fabric covering a panel must be acoustically transparent — meaning sound passes through it to reach the insulation behind. If the fabric reflects sound, the insulation does nothing.
Fabrics that work: Guilford of Maine, burlap, speaker cloth, and loosely woven polyester blends.
SoundAssured acoustical fabric is an alternative to Guilford of Maine.
SoundAssured acoustical fabric
Fabrics that do not work: Canvas, vinyl, leather, and tightly woven cotton reflect too much sound.
The blow-through test is a preliminary check only. Carnegie, which makes textiles for acoustical panels, says the test has no scientific backing and that a fabric should be evaluated by a third party to ASTM C423 and NRC rated.

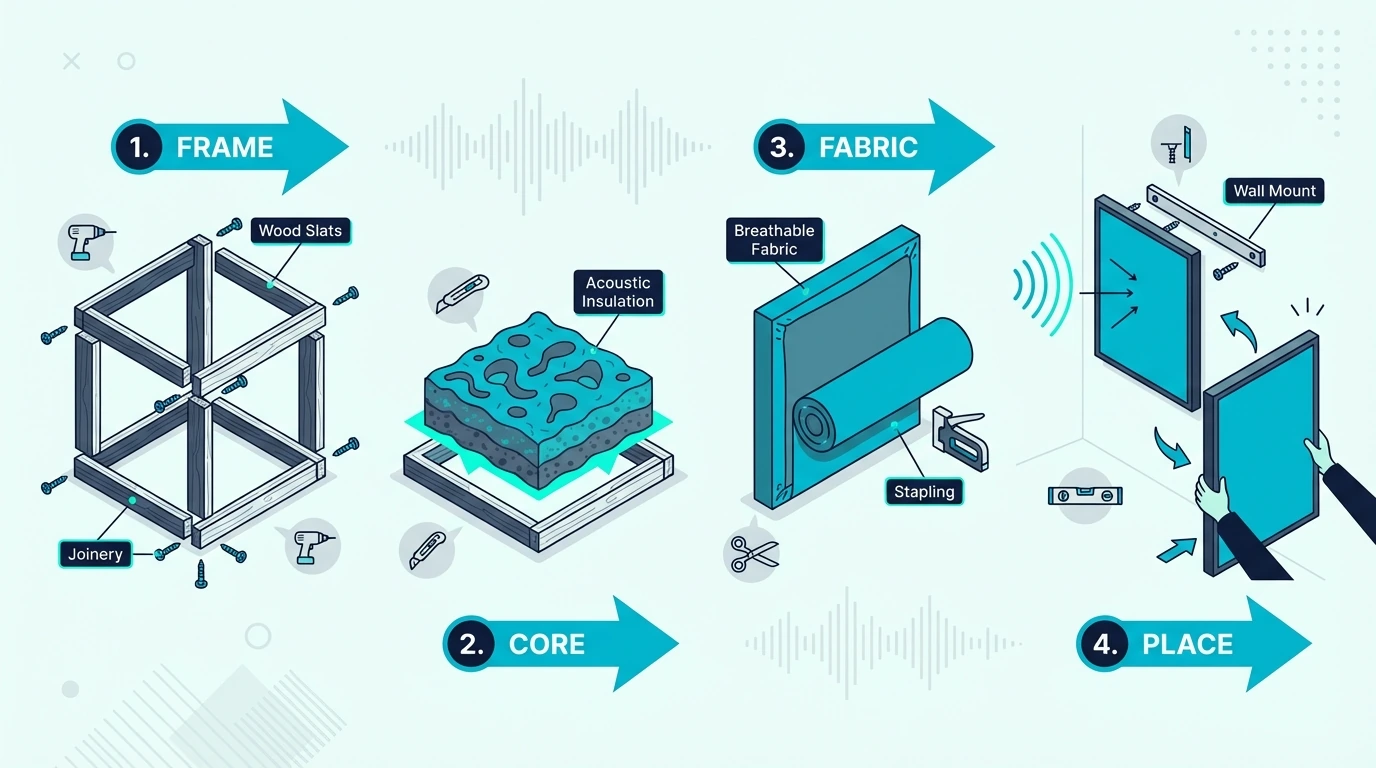

How To Build DIY Acoustic Panels — Step By Step
The build process is the same regardless of which insulation material you choose. Each panel takes approximately 30-45 minutes once you have the materials ready.
Building The Frame
Cut your 1×4 lumber to size. For a standard 24×48 inch panel, cut two pieces at 48 inches (long sides) and two pieces at 22.5 inches (short sides — accounting for the 3/4 inch thickness of the long pieces on each end).
Pre-drill pilot holes to prevent splitting. Screw the short pieces between the long pieces using two screws per corner.
The frame should be square — check by measuring diagonally from corner to corner. Both diagonal measurements should be equal.
For panels larger than 24×48 inches, add a cross brace across the middle for rigidity. This prevents the frame from warping over time.
Installing The Insulation
Cut the insulation to fit snugly inside the frame. Use a bread knife or serrated edge for fiberglass and a utility knife for mineral wool.
The insulation should press lightly against the frame sides without compression — compressed insulation loses air space and absorbs less effectively.
Wear gloves, long sleeves, and a dust mask when handling fiberglass or mineral wool. Both materials release fine particles that irritate skin and lungs. For rooms with concrete walls, use masonry anchors instead of drywall screws when mounting the finished panels.
Work outdoors or in a well-ventilated space.
For bass traps requiring 4 inches of insulation, stack two 2-inch boards inside the deeper frame. They should fit without adhesive — the frame holds them in place.
Wrapping With Fabric
Lay the fabric face-down on a clean surface. Place the panel face-down on top of the fabric, centered.
Pull one long side of the fabric over the back of the frame and staple every 3-4 inches using a staple gun.
Flip to the opposite long side. Pull the fabric taut (not stretched — just smooth with no wrinkles) and staple.
Repeat for the top and bottom short sides.
For the corners, fold the fabric neatly like wrapping a gift — fold one flap under, then pull the other over it and staple.
Trim excess fabric on the back with scissors. The finished panel should have smooth, wrinkle-free fabric on the front with all staples hidden on the back.
How To Build DIY Bass Traps
Bass traps follow the same construction process but use thicker insulation and are designed for room corners where low-frequency energy accumulates.
Corner Bass Trap Design
One DIY bass trap design is a flat panel mounted across a room corner. Build a standard 24×48 inch panel with a 2×4 frame (3.5 inches deep) and fill it with 4 inches of insulation — two stacked 2-inch rigid boards.
Mount the panel across the corner at a 45-degree angle, leaving a triangular air space behind it: Auralex’s Acoustics 101 names multiple layers of different materials and dead air as one way to control low frequency sound.
Put a bass trap in each of the four vertical room corners: Auralex’s home-studio guide makes bass traps in all of the corners the first step in any small room. The corner treatment guide covers bass trap placement and sizing in detail.
Floor-To-Ceiling Bass Traps
For maximum bass control, build floor-to-ceiling bass traps that span the entire height of the room corner. These require longer frames (typically 6-8 feet) and more insulation, but they provide significantly more low-frequency absorption than smaller panels.
Use 2×4 lumber for the frame to support the weight of the insulation over the full height. Add at least two cross braces to prevent the frame from bowing.
Floor-to-ceiling traps suit small rooms where bass modes cause the most audible problems, and mixing rooms where accurate bass monitoring matters.

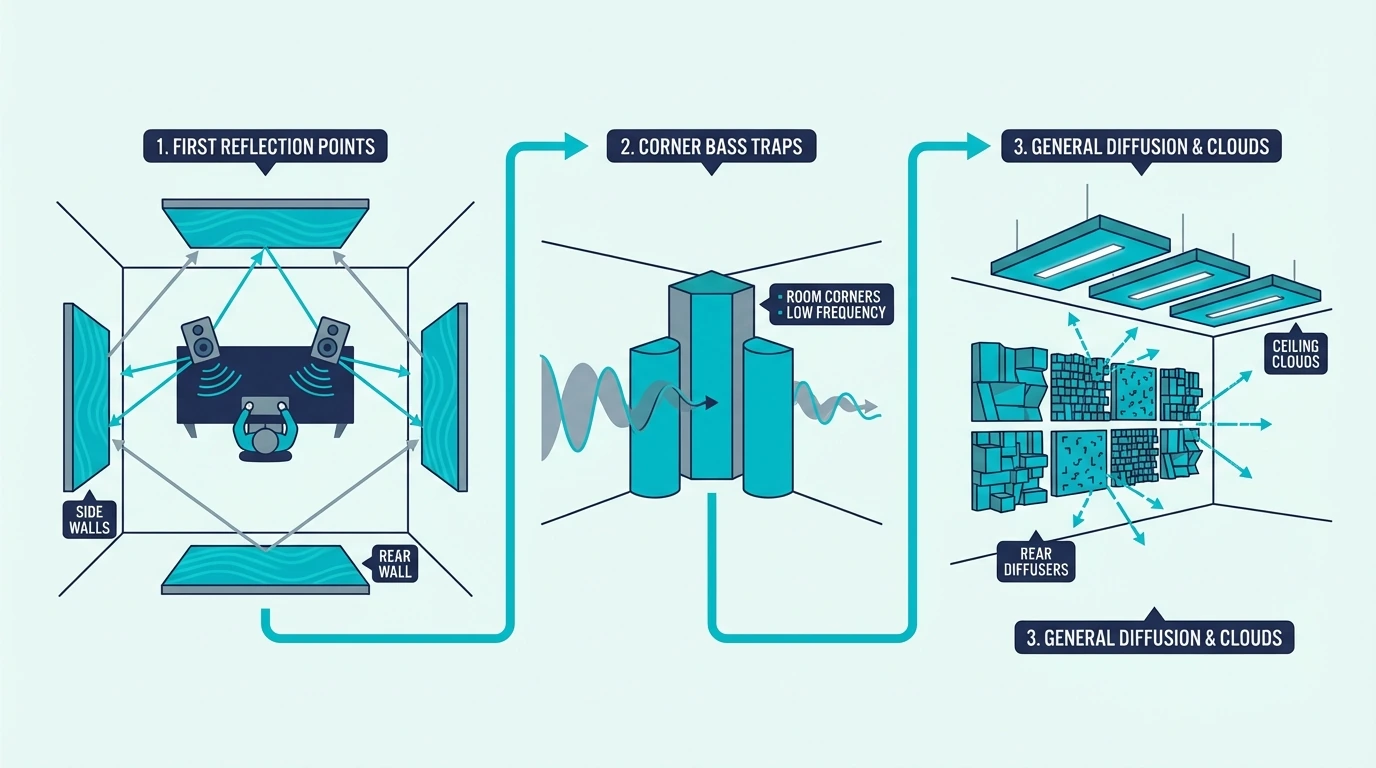

Where To Place DIY Panels — Priority Order
The placement priority for a home studio follows the same order regardless of room size:
First reflection points on side walls — the spots where sound from your speakers bounces off the side walls to your listening position. Sit at the mix position and have someone slide a mirror along each side wall. Where you can see the speaker cone in the mirror is the first reflection point.
Ceiling reflection point — directly above the equilateral triangle formed by your speakers and listening position. A ceiling cloud goes at this position: Auralex’s home-studio guide calls absorption panels or clouds above the listening position highly recommended.
Corner bass traps — all four vertical corners. Start with the front two corners behind your speakers. Then add the rear corners.
Rear wall — absorption or diffusion on the rear wall controls late reflections that add unwanted reverb to your monitoring.
Front wall behind speakers — reduces the immediate reflection from the wall behind your monitors.
The home studio treatment guide covers room-specific placement with measurements and diagrams. For small rooms, the treatment priorities shift slightly because standing waves are more severe at shorter wall distances.

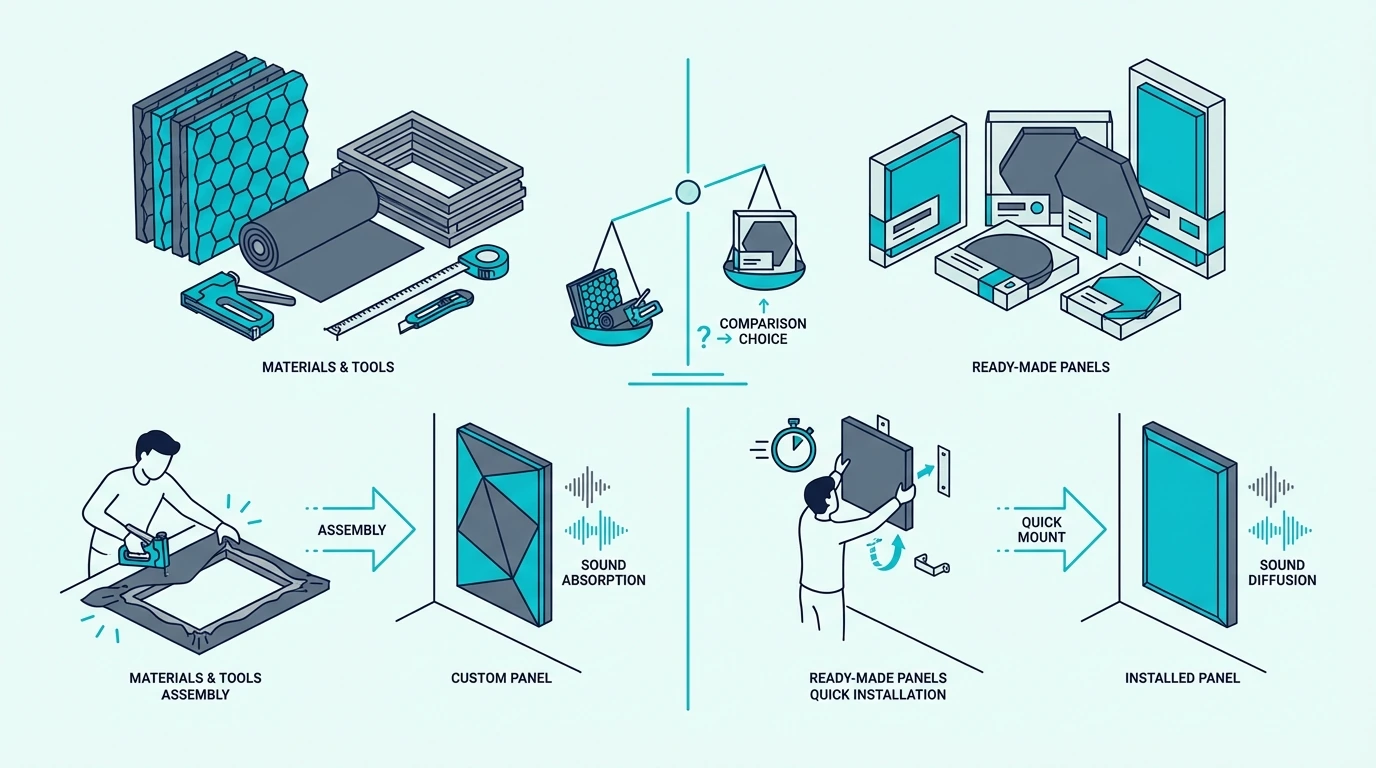

DIY vs Pre-Built — When To Skip The Build
Not everyone wants to build their own panels.
If you prefer convenience, pre-built fiberglass panels arrive ready to hang. A 4-pack covers two first reflection points with zero build time.
The tradeoff can be thickness: Owens Corning gives its 1-inch 703 board 0.26 at 250 Hz against 0.63 at 500 Hz, and 0.71 at 250 Hz at 2 inches.
DIY panels at 2-4 inches thick absorb deeper into the frequency range where room problems are most severe.
For more pre-built options, the budget treatment guide compares commercial panels.
The Bottom Line
DIY acoustic treatment lets you choose the material and thickness for a home studio: rigid fiberglass or mineral wool panels at 2 inches thick for the walls, 4 inches for the corners.
Build wall panels first for first reflection points, then add corner bass traps. A full treatment is 8-10 panels plus four bass traps.
The clap test for your room’s biggest problem shows which treatment to build first. For rooms where you cannot mount permanent panels, the temporary treatment guide covers portable and removable alternatives.
Frequently Asked Questions
How much does it cost to build DIY acoustic panels?
A single 24×48 inch panel takes insulation, lumber, fabric and hardware, and a full home studio treatment is 8-10 panels plus bass traps.
The biggest variable is the insulation. Rigid boards like Owens Corning 703 and Rockboard produce a cleaner build that holds its shape without additional support; flexible batts (Rockwool Safe’n’Sound) rely on the frame.
Are DIY acoustic panels as good as commercial ones?
DIY panels using the same insulation material at the same thickness perform identically to commercial panels. Building them yourself also lets you choose thicker insulation.
Commercial panels add a finished look and convenience; the acoustic performance comes from the insulation core, which you can source yourself.
What tools do I need to build acoustic panels?
The minimum tool list: a saw (miter saw or circular saw) for cutting lumber, a drill for pilot holes and screws, a staple gun for attaching fabric, a tape measure, and a utility knife or bread knife for cutting insulation. A speed square helps ensure square corners.
If you do not own these tools, the home theater guide covers simpler construction methods that require fewer specialized tools.
