How to Connect a Soundbar to an Xbox and Keep 120 Hz
Here’s how to connect soundbar to Xbox setups without losing the console’s best picture: plug the Xbox into the TV with its HDMI cable, then run the TV’s eARC or ARC port to the bar.
Put the bar in the middle instead and 4K at 120 Hz can vanish, because Microsoft warns that a soundbar between console and TV can affect video features.
Get the order right and the bar plays the game sound while the TV still gets the console’s full picture straight from the source.
Below are the three routes, what each one keeps, and the Volume & audio output settings Microsoft lists.
You’ll also find the optical answer for each console, the Dolby Atmos and Bluetooth answers, and the checks that bring back a silent bar.
How to Connect a Soundbar to Xbox Series X|S and Xbox One
Those three routes start from one fact about the newer consoles. Microsoft’s setup guide lists a single HDMI port on the back of an Xbox Series X|S and no optical audio out, so every Series route begins with an HDMI cable.
| Route | Cables | What it keeps | Watch for |
|---|---|---|---|

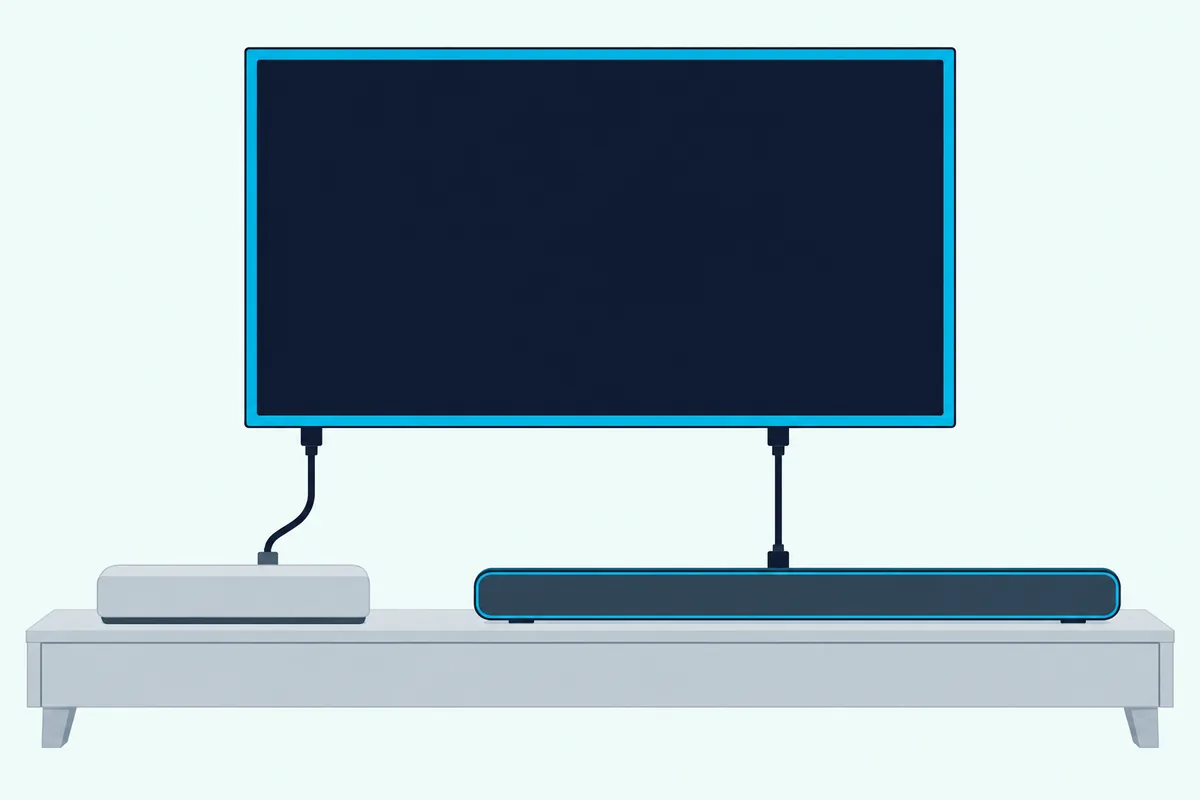

| 1. Xbox into the TV, TV’s eARC or ARC port to the bar | Two HDMI | Video goes straight to the screen | The TV must pass the sound on; ARC carries fewer formats than eARC |

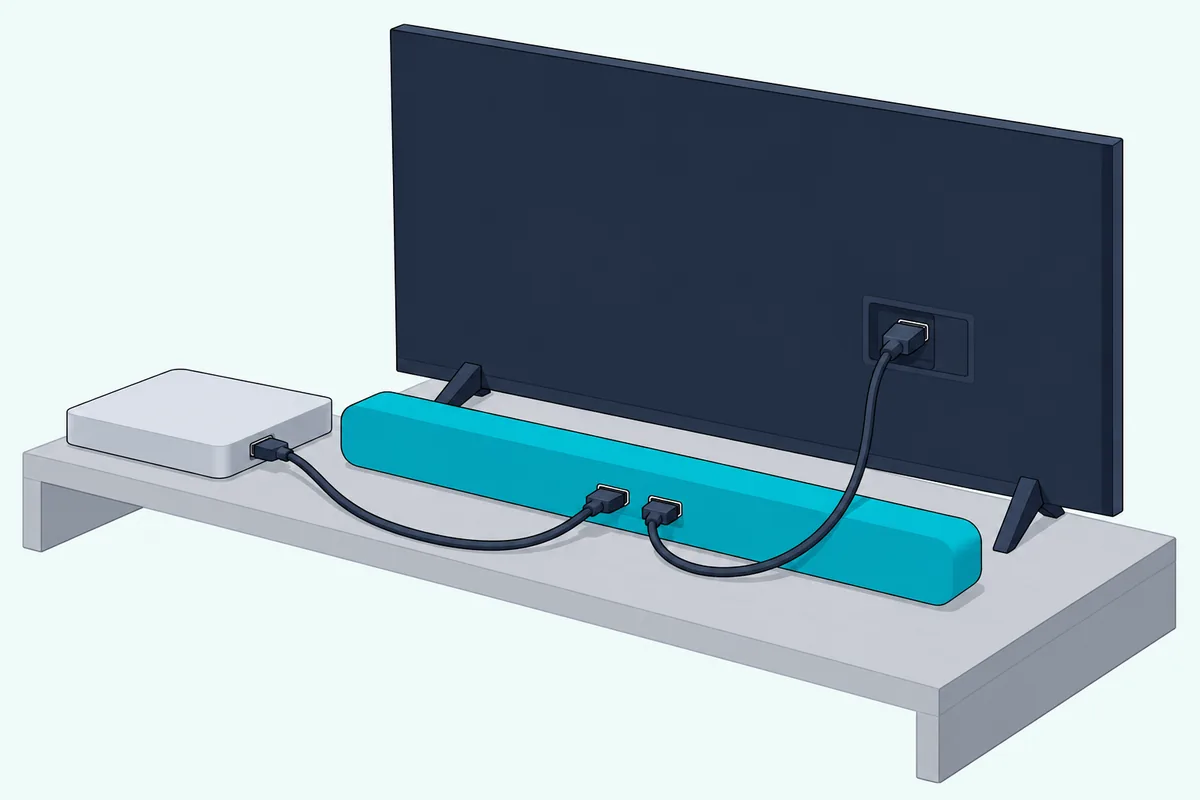

| 2. Xbox into the bar’s HDMI input, bar’s HDMI out to the TV | Two HDMI | The bar gets the console’s sound first | Video passes through the bar, so you keep only what its spec lists |
| 3. Optical to the bar | HDMI plus optical | Works with a bar that has no HDMI | Two-channel PCM or 5.1 compressed sound only |
Route 3 differs by console. A console with an S/PDIF (optical) port can run the cable itself, while a Series X|S has to start the optical run at the TV.
Why Does the Xbox Go Into the TV First?

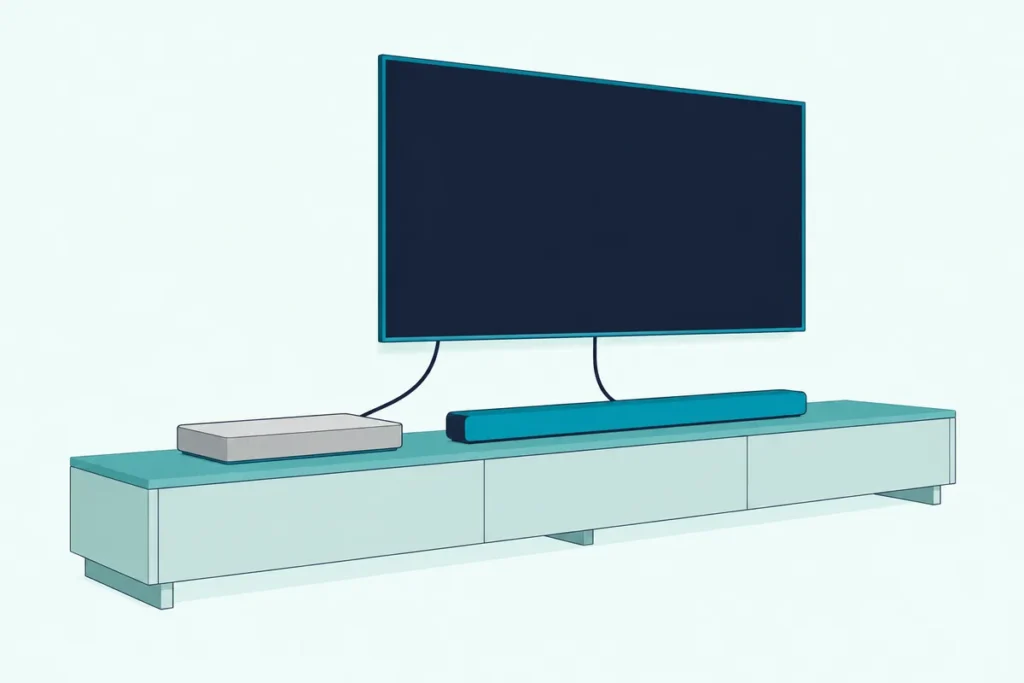

Route 1 comes first because Microsoft’s video settings guide tells you to connect the console directly to the TV with the supplied cable, since an AV receiver, soundbar or other device in between can affect video features and quality. Its Xbox One home theater page says the same thing in two words: be direct.
Plugged in that way, Microsoft says you won’t need to change any audio settings, because sound and video travel to the TV over the same HDMI cable. The TV then hands the sound to the bar through its eARC or ARC port.
The difference between the two ports matters here. Roku’s surround guide says ARC carries the optical formats plus Dolby Digital Plus and Dolby Atmos, and HDMI.org adds uncompressed 5.1 and 7.1, Dolby TrueHD, DTS:X and Dolby Atmos to eARC’s list.
Get Studio Tips Weekly
Join 5,000+ creators getting acoustic treatment advice every week.
No spam. Unsubscribe anytime.What Do You Turn On at the TV for eARC or ARC?
That handoff only works once the TV is set to send sound out. Sony’s HT-A3000 guide lists the checks: the bar’s cable sits in the TV port labeled eARC or ARC, the TV’s Control for HDMI and eARC or ARC settings are on, and the bar is on its TV input.
Microsoft notes that makers give HDMI control features different names, so the TV-side eARC switch for each brand shows where Samsung, LG, Sony and Roku TVs file it. If the bar shows MUTING after power-up, Sony’s fix is to turn on the TV first, then the bar.
Sony’s HT-A7000 guide adds one more option for an eARC TV: plug the console into the TV and enable the TV’s eARC function, and high quality formats such as Dolby Atmos still reach the bar.
When Should the Xbox Plug Into the Soundbar Instead?
That eARC gap is the reason to flip the order. If your TV has only ARC, or none at all, a bar with an HDMI input can take the console’s sound first and pass the picture on.
The cost is the picture. Sony’s HT-A7000 passes 4K at 120 Hz through only with HDMI Signal Format set to Enhanced format (4K120, 8K) and a 48 Gbps Ultra High Speed cable, and its Standard format stops at 4K 60 Hz 4:2:0.
Microsoft’s own 4K at 120 Hz checklist asks for an Xbox Series X, an Ultra High Speed HDMI cable that supports HDMI 2.1 and an HDMI 2.1 TV. With a receiver in the chain, it says to use the supplied cable and to ask the receiver’s maker if 120 Hz still won’t hold.
Route 2 needs two of those cables, one in and one out. The Series X box holds one 2-meter Ultra High Speed cable, so if you still need a second run, a 48Gbps HDMI 2.1 cord from UGREEN is sold as Certified Ultra High Speed.
a 48Gbps HDMI 2.1 cord from UGREEN
For a screen with no ARC and a bar with no HDMI input, the no-ARC hookup routes cover the remaining options.
Can You Use Optical From an Xbox to a Soundbar?
Yes from a console with an S/PDIF port, and only from the TV on a Series X|S. Microsoft’s speaker settings page says optical audio out isn’t supported on Series X|S, so you connect the console to the TV with HDMI and the TV’s optical (S/PDIF) out to the soundbar.
A console with that port keeps a shortcut. Microsoft’s sound system steps leave the HDMI cable in the TV for video and run a digital audio (TOSLink) cable from the console’s S/PDIF port to the digital audio input; Microsoft writes receiver, and on a soundbar that’s the optical input.
Microsoft says you’ll need to buy that cable, and Amazon Basics’ Toslink optical cable is listed for sound bars and game consoles.
Amazon Basics’ Toslink optical cable
Either way, Roku’s guide limits an S/PDIF link to two channels of PCM or 5.1 compressed Dolby Digital or DTS. Microsoft adds that HDMI audio formats labeled HDMI only turn optical off.
Which Xbox Audio Settings Matter for a Soundbar?
Those cables only carry what the console sends. Microsoft’s path is Profile & system > Settings > General > Volume & audio output, where these entries matter for a bar.
| Setting | What Microsoft says it does |
|---|---|
| HDMI audio | Stays on Stereo uncompressed unless the HDMI device can process 5.1 or 7.1 uncompressed |
| Optical audio | Only matters with an optical cable in; pick what your sound system works with |
| Advanced > Additional options | Holds Audio passthrough and Mono output |
| Advanced > Audio testing & details | Shows which audio options your setup supports |
Audio passthrough sits under Additional options > Allow passthrough. Microsoft says it sends raw audio from media playback apps straight to your audio setup, doesn’t apply to games, and currently works only over HDMI.
Microsoft also says a DVI TV connection under Video output leaves sound on optical only, so check that setting if HDMI audio goes quiet.
Does the Xbox Send Dolby Atmos to a Soundbar?
Dolby says gaming in Dolby Atmos on Xbox Series X|S can play through your TV, soundbar or home theater setup. Xbox.com adds that Atmos media streaming runs on Xbox One, One S, One X and Series X|S.
The menu step is the gap. None of the Microsoft support pages saved for this guide names a speaker Atmos option, and they mention the Dolby Access app and DTS only for headset formats.
Audio testing & details is the documented way to see what your setup supports. The optical limit from earlier rules route 3 out for Atmos, and ARC carries it only compressed, per Roku.
Can an Xbox Connect to a Bluetooth Soundbar?
Microsoft’s Bluetooth page covers controllers and the Xbox Wireless Headset paired with Windows, Android and iOS devices, plus cloud gaming. None of the Microsoft pages saved for this guide gives steps for a Bluetooth speaker or soundbar on the console.
That gap stays a gap. HDMI and optical are the documented links; for a Bluetooth-only bar, check whether your TV’s manual lists a Bluetooth audio output.
Why Is the Soundbar Silent or Stuck in Stereo?
Silence usually traces back to a setting or port above. Microsoft’s no-sound checks run in this order:
- Make sure the TV isn’t muted and the speakers are connected and on.
- Set TV & display options > Video fidelity & overscan > Display to HDMI.
- Run the Audio setup test under Volume & audio output > Advanced.
- With a receiver between console and TV, switch the TV’s input away and back, then restart the receiver.
Stereo-only sound has a simpler cause. Microsoft’s default HDMI audio choice is Stereo uncompressed, and optical can’t carry more than 5.1 compressed, so pick a 5.1 or 7.1 format only if Audio testing & details shows your bar can take it.
What Brings Back 120 Hz and Fixes Lip-Sync?
The 120 Hz drop goes back to route 2. Microsoft wants Resolution at 4K UHD and Refresh rate at 120 Hz under TV & display options, and on a Series S, or a TV without HDMI 2.1, you can still turn on 120 Hz at a lower resolution.
If the bar sits in the chain, move the console to the TV or check the bar’s passthrough mode and cable, as the Sony example showed. That’s the same direct-connection advice from the first section.
Lip-sync delay gets its own fix. Microsoft says to check the TV, receiver or soundbar maker’s specs, install their firmware updates, then set the audio device to eARC passthrough mode if it has one.
Frequently Asked Questions
Is it better to connect Xbox to soundbar or TV?
The TV, for most setups. Microsoft’s video guide says a soundbar between the console and TV can affect video features, and an eARC TV still passes high quality formats on. Go through the bar only when the TV lacks eARC, after checking its passthrough list; the PS5 version of this question is in our PS5 soundbar walkthrough.
Can the Xbox controller change the soundbar volume?
Yes, through HDMI-CEC. Turn on HDMI-CEC and Console sends volume commands under TV & display options > TV & A/V power options, and Microsoft says the console can control a TV, AVR or soundbar’s volume from Audio & music in the guide.
Do I need a special HDMI cable for an Xbox and a soundbar?
Use the one in the box for the console. Microsoft ships a 2-meter Ultra High Speed cable with the Series X and asks for a certified Ultra High Speed cable for a longer run; the Series S comes with a High Speed cable. For the bar itself, see gaming soundbar picks with low input lag.
