Which LG Soundbar Mount Fits Your Bar and Your TV?
For an LG soundbar mount, start with the box rather than a store: most LG bars already come with LG’s own wall bracket and a paper guide, and only a few hang from an LG TV.
Buy a universal bracket first and you may end up with two sets of hardware and still no wall screws, because LG leaves those out.
Match the bar to the right mount and it goes up once, centered under the screen with the gap LG asks for.
This guide sorts LG’s bars by how their manuals mount them: the wall bracket in the box, the synergy and WOW brackets that fix to listed OLED and QNED sets, and what to buy when there’s no LG bracket at all.
The table of bars comes first, then the screws, the gap under the TV, the TV brackets and the universal options.
Which LG Soundbars Come With a Wall Bracket?
That box check settles most cases. Every LG manual read for this guide with a wall chapter lists a wall bracket, the screws that fix the bar to it and a wall bracket installation guide, the paper template you mark the holes through.
| LG bar | How LG mounts it | Extra in the box | Gap below the TV |
|---|---|---|---|
| S95TR, S95QR, DS95QR | LG wall bracket | Wall brackets and screws for the wireless rear speakers | 10 cm (top speakers) |
| S80TR, S80QR, S77TY, S70TY, S70TR, US70TR, S75QR, S75Q | LG wall bracket | None | 10 cm (top speakers) |
| Sound Suite H7 | LG wall bracket | None | 10 cm (top speakers) |
| S60T, S60TR, S60Q, S40Q | LG wall bracket | None | No figure given |
| SC9S | TV synergy brackets for the OLED C2, C3 and C4 | Spacers for 55- and 65-inch or 77-inch sets | Fixed by the bracket |
| SQ70TY, SQ75TR | WOW Bracket for listed QNED sets on an LG wall mount | Holder, two screw sizes, cable holder | Fixed by the bracket |
| S30A | No mounting chapter in its manual | None | Not covered |
Two bars stand out in that list. The S95TR, S95QR and DS95QR boxes add a second set of wall brackets for the wireless rear speakers, and the S30A’s online manual has no wall chapter at all, so that bar comes with no LG mounting method to follow.

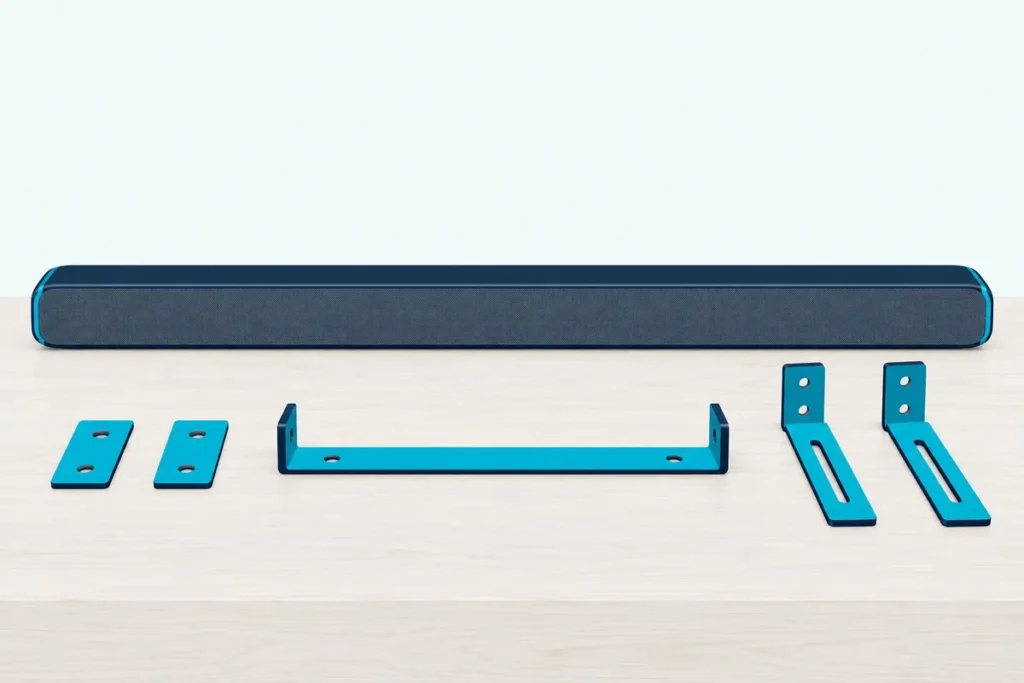

The table also shows why one search for an LG bracket can mean three different parts. Three of these bars hang from the TV on parts made for it, and the rest go on the wall with parts already in the box.

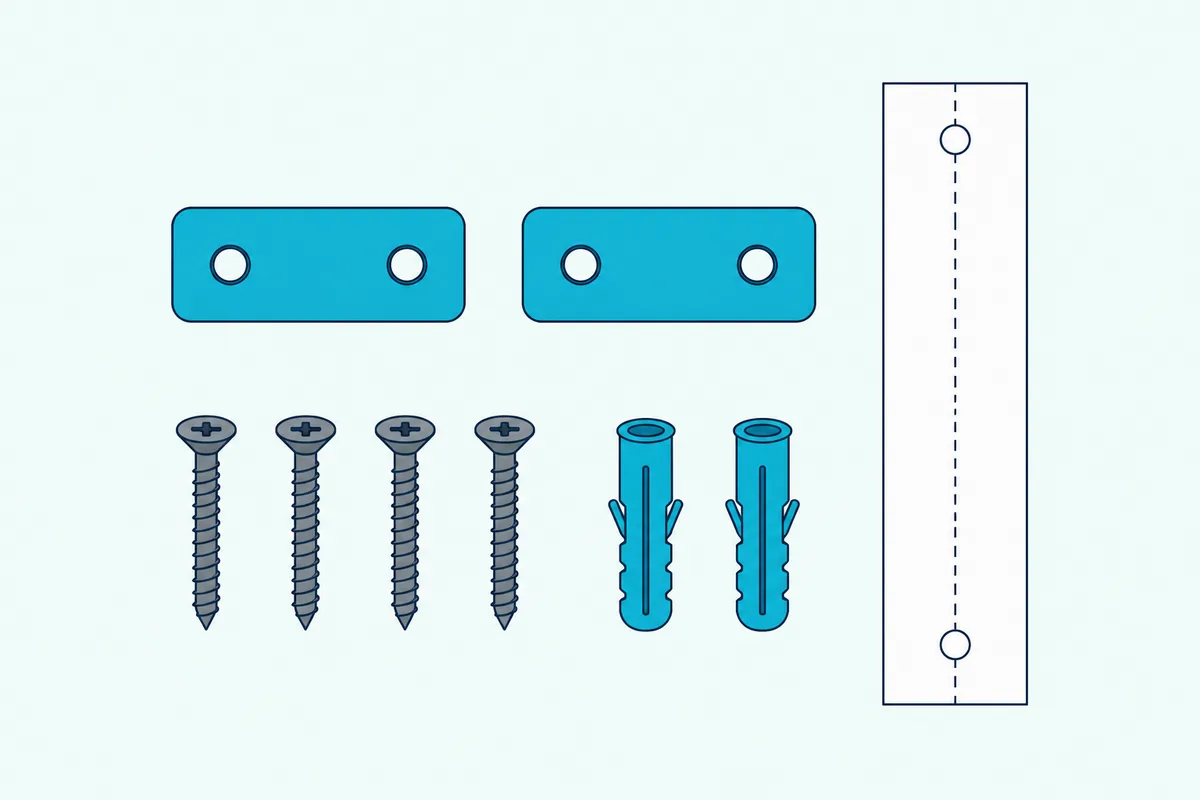

What Screws and Wall Plugs Does an LG Wall Bracket Need?
Those boxes share one gap: the hardware that holds the bracket to the wall. LG’s manuals list bracket screws and wall plugs as sold separately and recommend Hilti HUD-1 6 x 30 wall plugs (LG).
The Sound Suite H7’s manual is the only one read here that names a screw as well. It recommends M4 x 35 mm bracket screws with those Hilti plugs, and it asks for a wall that can take the bar’s weight and vibration, such as concrete, natural stone, structural brick or a wood stud (LG).
Think of the box as half a kit: LG supplies everything that touches the bar, and you supply everything that touches your wall. That split is why the plugs and screws belong on the shopping list before the drill comes out.
The newer manuals, from the S95TR down to the S60T and the Sound Suite H7, add two cautions. Leave a screw loose and the bar can tilt or tip over, while too much force can strip the screw joint.
LG names only that one plug, and walls differ. For stud fixings, toggle anchors and what each holds, see Burton Acoustix’s guide to mounting a soundbar on the wall into studs or drywall.
Get Studio Tips Weekly
Join 5,000+ creators getting acoustic treatment advice every week.
No spam. Unsubscribe anytime.How Far Below the TV Should an LG Soundbar Mount Go?
Once the hardware is sorted, height is the next decision. LG’s manuals for bars with speakers on top ask for 10 cm (3.9 inches) between the bottom of the TV and the bar.
That covers every bar in the first three rows of the table above, from the S95TR to the Sound Suite H7. The reason is in the same sentence of each manual: these bars also have speakers on top.

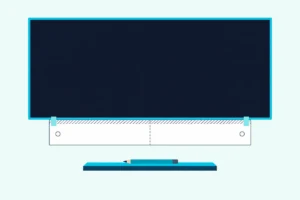

For the S60T, S60TR, S60Q and S40Q, the manuals give no gap figure. The paper guide still sets the spot, because its “TV Bottom Line” lines up with the bottom edge of a mounted TV and its “TV Center” mark with the middle of the screen.
A quick test helps before you drill. Tape the guide up, stand back at your seat and check that the bar’s position looks centered with the screen, since moving a mark later means a second set of holes.
Which LG Soundbars Mount Directly to an LG TV?
The guide and the 10 cm gap apply to wall brackets. The SC9S, SQ70TY and SQ75TR skip the wall bracket and fix to the TV itself, but only to the LG sets their manuals list.
| LG bar | LG bracket in the box | TVs listed in its manual | Stand or wall |
|---|---|---|---|
| SC9S | TV synergy bracket (front and rear) | OLED C2, C3 and C4 in 55, 65 and 77 inches | Either |
| SQ70TY, SQ75TR | WOW Bracket and holder | QNED80T, QNED82T, QNED85T, QNED88T, QNED80A and QNED85A in 55 to 75 inches; QNED90T in 65 and 75 inches; QNED80T, QNED85T, QNED80A and QNED85A in 86 inches | Wall only |
The SC9S list stops at the C4 (LG). A C5 or a G-series owner won’t find a synergy bracket for their set in this manual, and the same goes for any QNED model missing from the SQ lists.
LG’s US store also lists a QNED soundbar synergy bracket sold on its own, the BT5-2P. None of the soundbar manuals read for this guide names it, and LG’s own site couldn’t be checked here, so which bars and sets it fits stays unconfirmed.
If you own one of the C4 sets above and haven’t chosen a bar yet, Burton Acoustix’s LG C4 soundbar picks weigh the SC9S against other brands.

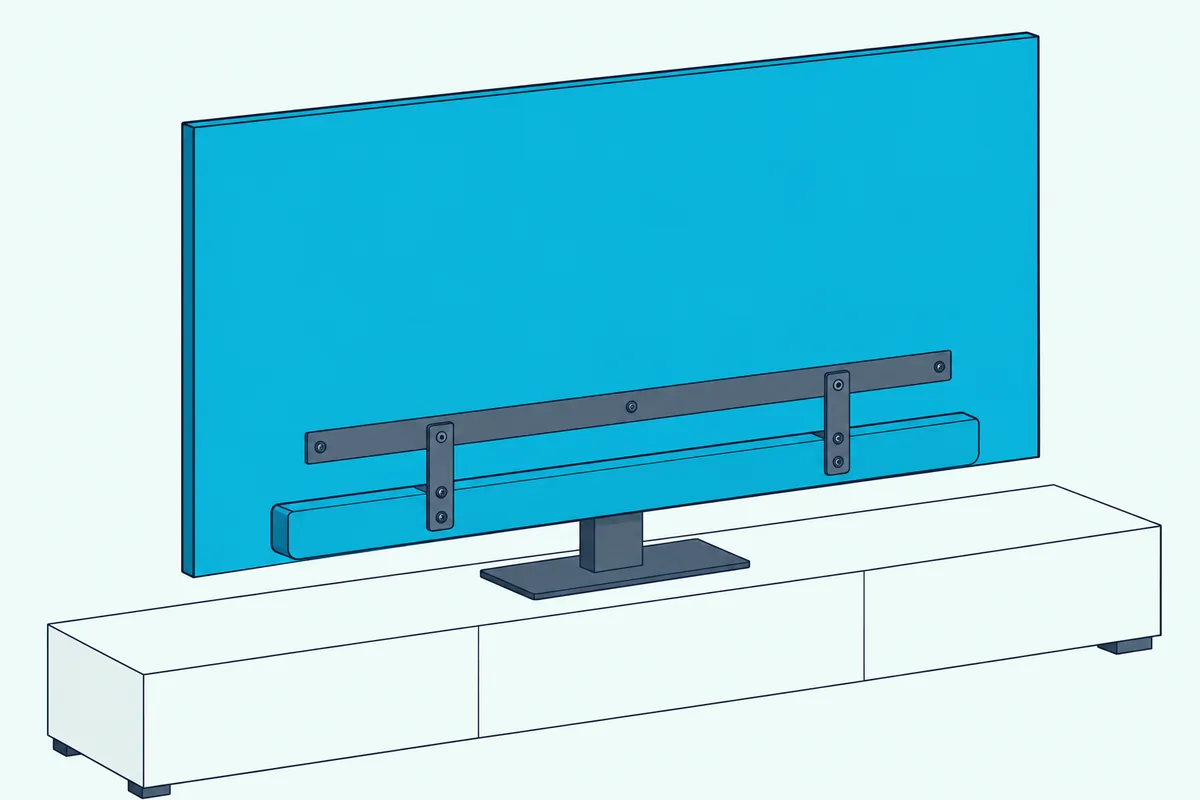

How Does the SC9S Synergy Bracket Attach to an LG OLED?
That C2 to C4 list matters because the bracket hooks into the TV’s own holes. LG’s steps fix a spacer sized to your screen to the front synergy bracket, feed the cables through the bracket’s hole, screw the bracket to the bottom of the bar, then hook it into the back of the TV and fix it with four screws.
The SC9S box carries two spacers, one for the 77-inch C-series and one for the 55- and 65-inch sets. Using the wrong one is the first mistake to rule out, so check the spacer against your screen size before any screw goes in.
LG says more than two people are needed for the job. It also asks you to take off the TV’s stand or wall bracket first, in the reverse order of assembly, following the TV’s manual.
The rear synergy bracket decides the rest. On a TV stand, it screws onto the front bracket and LG says it must be attached for safety, while on a wall you connect the bar’s cables and then hang the TV following the TV’s own manual.
Which LG Wall Mounts Work With the SQ70TY and SQ75TR?
The QNED bars take a different route from the SC9S. Their WOW Bracket works only on a wall-mounted QNED, and only one hung on LG’s WB24GC (55 to 75 inches), WB24GD (86 inches), WB21LM or WB21LG wall mount (LG).
So the shopping step for these two bars is the TV mount, not a soundbar bracket. Amazon searches for the WB24GC, WB21LG and WB21LM on 20 Oct 2026 found none of LG’s mounts listed with enough reviews to recommend, so look for them through LG or an LG dealer.
The bracket itself fixes to the back of the QNED with four M4 x 16 mm screws, and the bar sits on it with two M4 x 12 mm screws once TV and bar are centered. You pick the holder that matches your TV model and attach it to the bracket, and LG warns never to reuse the TV’s own screws and says more than four people are needed.

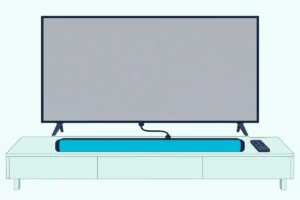

Plug the power cable into the bar before it goes on the bracket, then connect HDMI or optical. For the full cable and power order after any of these mounts, LG’s sequence is set out in our LG sound bar installation steps.
Which LG Soundbar Mount Fits When Your Bar Has No LG Bracket?
The TV brackets above cover only listed sets, and some bars have no LG bracket at all. A universal soundbar mount fills that gap, as long as its rated load covers your bar’s weight and its fixing method suits the bar’s underside.
LG’s wall steps fix the bar through screw holes in its bottom, which tells you what to look for. EchoGear’s EGAV-SSBWM1 manual is a good example of a universal mount that spells this out: it holds up to 20 lbs (9.0 kg), screws into bars with threaded holes underneath using its own M4, M5 or M6 screws, and works as a shelf for bars without them (EchoGear).
LG’s online manuals read here give each bar’s dimensions but not its weight. Check the weight on the box or LG’s spec sheet before you match it to a mount’s rating, and keep the 10 cm gap for bars with top speakers whatever bracket holds them.

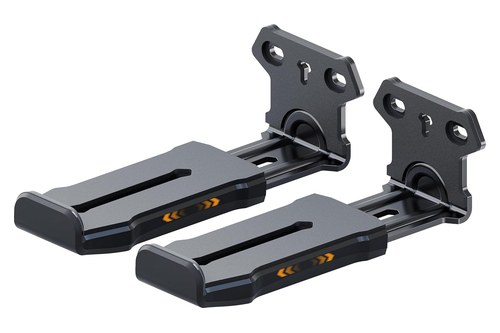

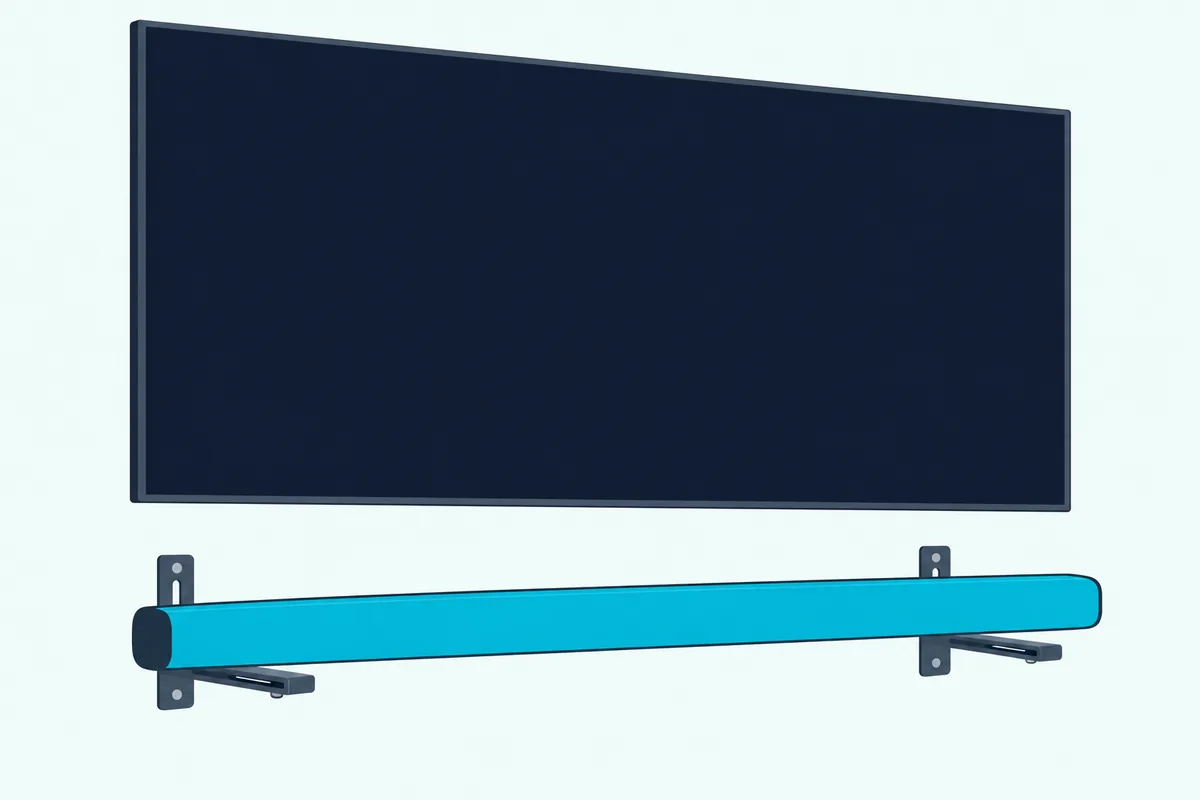

For a wall mount whose listing names LG bars, the Agandax soundbar wall mount is a shelf-style bracket the bar sits on. Its listing gives a load rating and a depth range, the two numbers to hold against your bar.
the Agandax soundbar wall mount
The same thinking applies to a bar that lost its LG bracket in a move. Third-party replacement brackets are sold by LG model number for older bars, but none of those models has a manual read here, so check that the listing names your exact model.
Can a Universal Mount Hang an LG Soundbar From the TV?
Some readers want the TV-hanging look without an SC9S or SQ bar. A universal TV-mounted bracket does that by fixing to the TV’s VESA screw pattern and holding the bar above or below the screen.

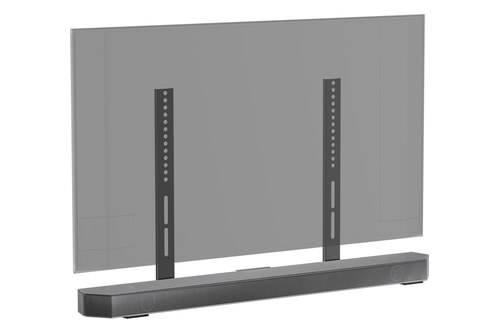

Two numbers decide whether one fits: the TV’s VESA pattern and the bar’s weight. The notiela soundbar TV mount covers 200 to 600 mm patterns and up to 15 lbs, per its listing.
The notiela soundbar TV mount
If your LG bar is heavier than that, universal soundbar brackets rated up to 20 lbs compares TV-attach models by hole range and load, and the 10 cm gap still applies.
Treat LG’s own rules as the floor here too. The 10 cm gap under the TV still applies to bars with top speakers, and LG’s manuals for the TV-bracket bars say those brackets fit only the sets they list.
For TV-mount versus wall-mount trade-offs with any brand, see our guide on how to mount a soundbar to the TV itself.
Where Do LG’s Rear Speakers Mount?
Bars with wireless rear speakers bring one more mounting job. The S95TR, S95QR and DS95QR boxes include wall brackets and screws for the rear speakers, and like the bar’s bracket they need wall plugs and screws you buy separately.
LG’s rear-speaker steps are short: check the spot, fix the brackets to the wall, set each speaker on its bracket with the screw holes lined up, then screw it in. The plugs and screws for them sit on the same sold-separately list as the bar’s.
The S77TY, S70TY and SQ70TY manuals list the SPT8-S rear speakers as sold separately. Their mounting chapters cover only the bar, so check the rear kit’s own guide before planning to hang it.
The Bottom Line
Open the box before you shop: every LG bar read here with a wall chapter comes with LG’s bracket and guide, and the only things to buy are wall plugs and screws, with Hilti HUD-1 6 x 30 plugs as LG’s pick.
The SC9S hangs from the OLED C2, C3 and C4, and the SQ70TY and SQ75TR from listed QNED sets on LG wall mounts. A bar with no LG bracket, from the S30A to one that lost its bracket in a move, takes a universal mount rated for its weight, with 10 cm left under the screen for bars with top speakers.
Frequently Asked Questions
Can you mount an LG soundbar to an LG C4?
Yes, with the SC9S. Its manual lists the OLED C4 in 55, 65 and 77 inches, along with the C2 and C3, for its TV synergy bracket, which hooks into the back of the TV and works with the set on its stand or on the wall.
Other LG bars in the manuals read here don’t list a C4 bracket, so they go on the wall with LG’s own bracket or on a universal mount.
What size screws does an LG soundbar wall bracket need?
LG’s manuals don’t supply the wall screws and recommend Hilti HUD-1 6 x 30 wall plugs. The Sound Suite H7’s manual adds M4 x 35 mm bracket screws, the only screw size named in the wall chapters read for this guide.
The small screws that fix the bar to LG’s bracket come in the box.
Do LG’s TV brackets fit other brands’ TVs?
No. The SC9S manual lists only LG’s OLED C2, C3 and C4, and the SQ70TY and SQ75TR manuals list only certain LG QNED models on LG’s own wall mounts.
On another brand’s TV, use the LG bar’s wall bracket under the screen or a universal TV-mounted bracket that suits the TV’s VESA pattern.
Can an LG soundbar go above the TV?
LG’s manuals read here don’t describe it. Their wall guides line up with the bottom edge of the TV, and the 10 cm gap for bars with top speakers is measured from the TV’s bottom, so every LG layout shown puts the bar below the screen.
Is LG’s soundbar wall bracket sold separately?
LG’s online manuals list the bracket as part of the box, not as an accessory, and give no part number for a replacement. LG’s parts store lists soundbar wall brackets by part number and third-party sellers list replacements by LG model, so match the listing to your bar’s exact model name before you order.
