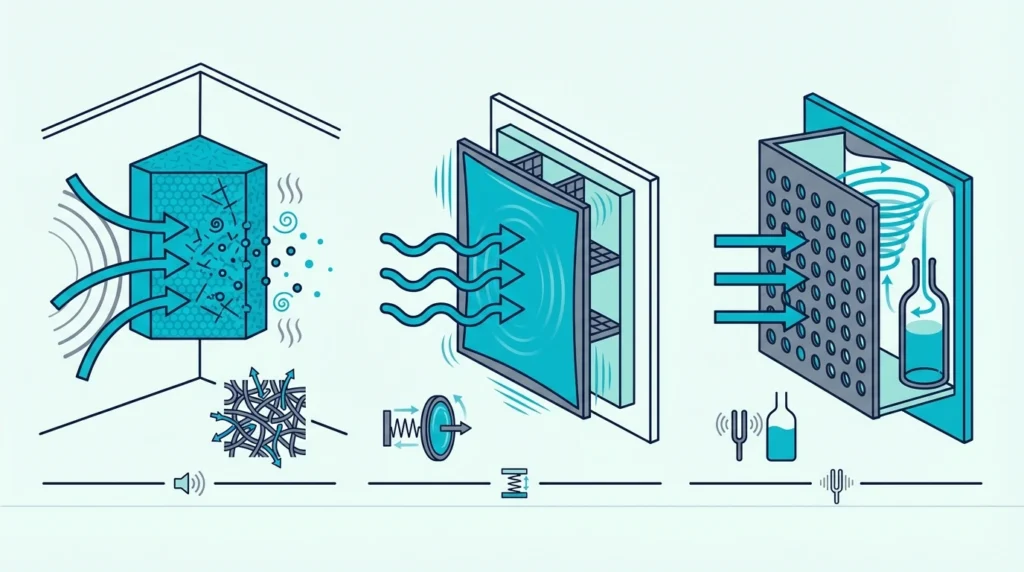

There are three main types of bass traps: porous absorbers (broadband), resonant absorbers (tuned to specific frequencies), and active bass traps (electronic cancellation).
How many types of bass traps are there? Three main categories, and the type has to match the room problem it is bought for.

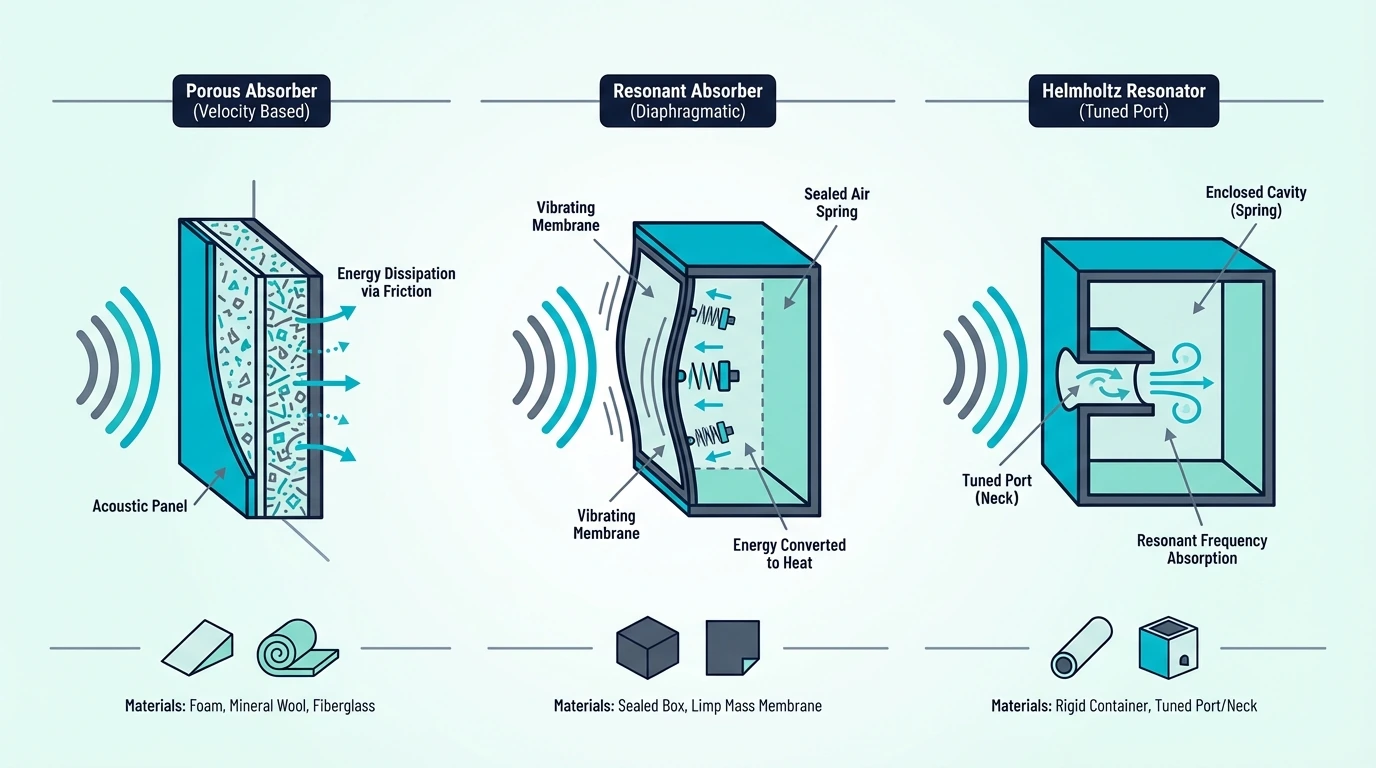

The three types are porous absorbers, resonant absorbers, and active bass traps. Each handles low-frequency energy through a completely different mechanism, targets different frequency ranges, and works best in different situations.
Porous absorbers are the familiar kind: fiberglass panels, mineral wool chunks and foam wedges set into corners. Resonant absorbers are tuned to specific problem frequencies, while active traps use electronics to cancel bass.
The sections below cover how each type works, what frequencies it covers, and how to choose one for your room and its bass problems.
For most home studios and listening rooms, porous absorbers in rigid fiberglass or mineral wool are the starting point: Owens Corning lists its 4-inch unfaced 703 board at 0.56 at 125 Hz. Resonant absorbers are tuned to one stubborn room mode at a time.
How Many Types Of Bass Traps Are There, And Why Does It Matter?
Understanding the different types of bass traps matters because each one solves a different aspect of the low-frequency problem.
Bass traps fall into three categories based on how they convert sound energy into heat or cancel it out. The type determines which frequencies get absorbed, how much space the trap requires, and whether it treats your room’s problems broadly or targets one specific frequency.
Porous absorbers come first because they work across the widest frequency range. Resonant absorbers come into play when measurement data shows a stubborn mode that porous treatment alone can’t flatten, and active traps are a tool for professional facilities.
What Are Porous Absorber Bass Traps?

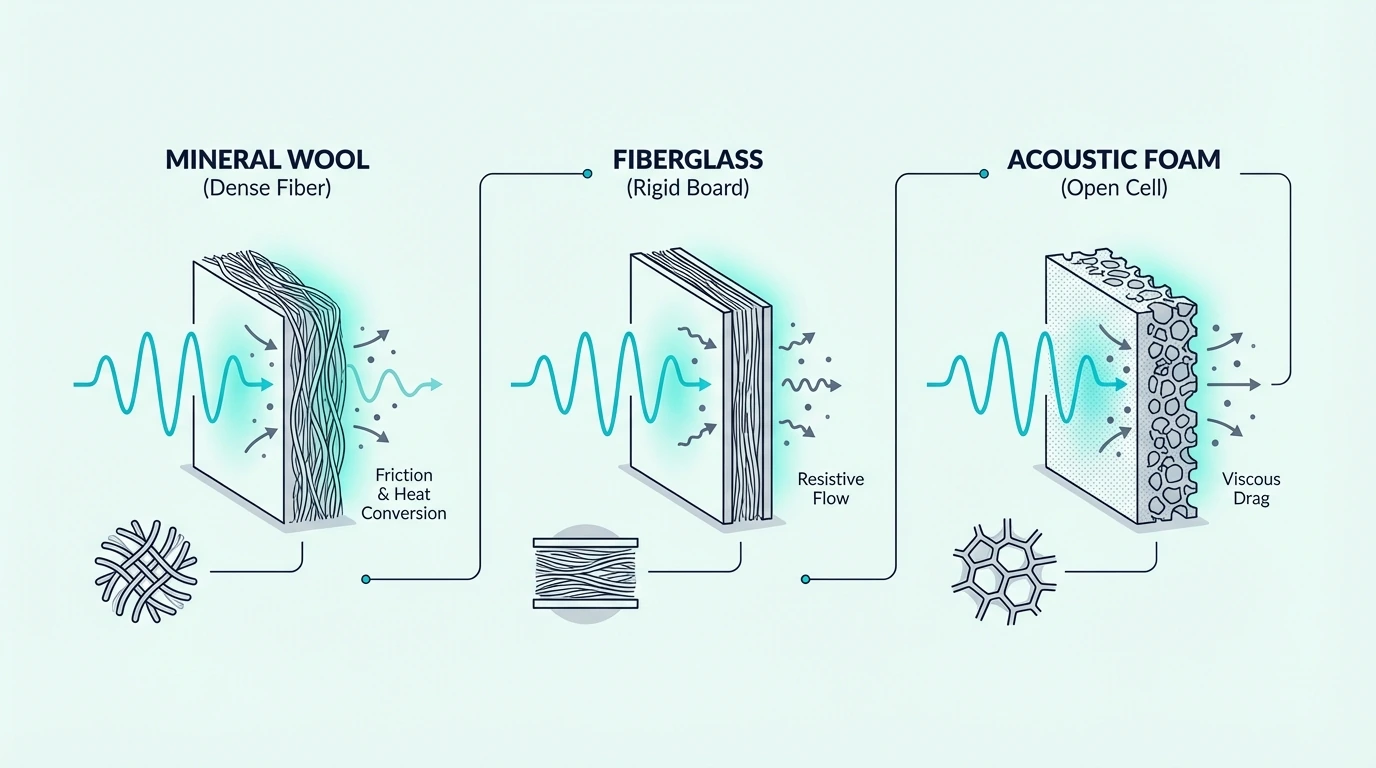

Porous absorbers are the type to start with. They work through velocity-based absorption — sound waves pass through the material’s tiny pores, and friction between the moving air and the pore walls converts acoustic energy into heat.
The key advantage of porous absorbers is broadband coverage: Owens Corning lists its 4-inch unfaced 703 board at 0.56 at 125 Hz and above 1.0 at every band from 250 Hz up. One type of treatment handles bass problems, first reflection points and general room liveliness at once.
Panel-Style Porous Traps
Panel-style porous traps are flat rectangular panels made from rigid fiberglass (Owens Corning 703/705) or mineral wool (Rockwool). They mount on walls or straddle corners at a 45-degree angle, creating an air gap behind the panel that extends their low-frequency reach.
A 4-inch panel spanning a corner leaves an air gap behind it. Commercial versions come pre-wrapped in fabric and ready to hang, and DIY builders work from the same boards.
Superchunk Corner Traps
Superchunk traps fill an entire corner from floor to ceiling with stacked triangular wedges of rigid insulation. The name comes from the chunk of material: triangles cut from rigid boards and stacked to fill the corner. ROCKWOOL lists its Comfortboard 80 in thicknesses from 1 to 5 inches and in 24 x 48-inch and larger sheets.
The depth of material is the point: Owens Corning’s unfaced 703 goes from 0.15 at 125 Hz at 2 inches to 0.34 at 3 inches and 0.56 at 4 inches, and a filled corner is deeper still. Superchunks consume significant room volume and only fit rooms where losing corner space is acceptable.
If you’re building them yourself, rigid stock like the Rockwool ComfortBoard 80 Rigid Stone Wool Insulation Board gives you the kind of dense mineral wool superchunks are built from once you cut and stack it into full-corner wedges.
For small rooms where superchunks would dominate the space, panel-style traps with air gaps offer a practical compromise between bass absorption depth and room footprint.

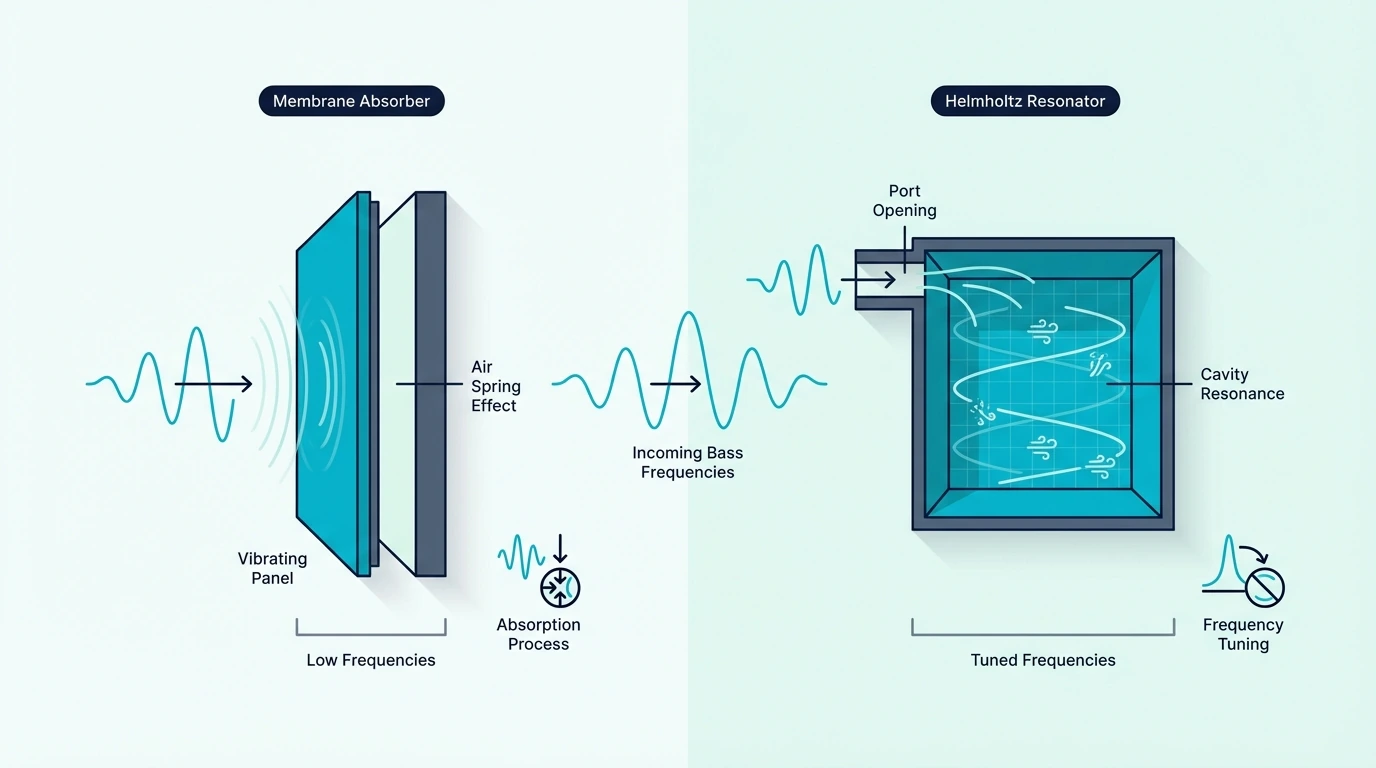

What Are Resonant Absorber Bass Traps?
Resonant absorbers work through pressure-based absorption rather than velocity. Instead of letting sound pass through a porous material, they use a resonating element — a tuned cavity or a vibrating membrane — that oscillates at a specific frequency and dissipates that energy as heat.
The defining characteristic of resonant absorbers is narrow-band targeting. Where a porous absorber treats everything above its cutoff frequency, a resonant absorber focuses its absorption on a narrow band around its tuning frequency.
Helmholtz Resonator Traps
Helmholtz resonators use a sealed cavity with a small port or neck opening. When sound at the resonant frequency hits the port, the air in the neck oscillates back and forth, and internal friction dissipates the energy.
The tuning frequency depends on the cavity volume, port diameter, and neck length. A Helmholtz resonator absorbs at the frequency it is tuned to.
The tradeoff is specificity — a Helmholtz trap tuned to one frequency does little at the frequencies around it. You need to know exactly which frequency is your problem, which requires room measurement with software like REW (Room EQ Wizard).
A measurement mic like the miniDSP UMIK-1 USB Measurement Calibrated Microphone is what lets you find that exact problem frequency before you build or buy a tuned absorber.
miniDSP UMIK-1 USB Measurement Calibrated Microphone
Membrane (Diaphragmatic) Traps
Membrane traps — also called diaphragmatic absorbers — use a thin, flexible front panel (typically MDF or plywood) mounted over a sealed air cavity filled with absorption material. When bass energy hits the panel, it vibrates at its resonant frequency, and the internal absorption converts that mechanical energy to heat.
Where a membrane trap works depends on panel mass, cavity depth, and internal damping. It is tuned, like a Helmholtz resonator, where a porous absorber is broadband.
Professional studios sometimes use tuned membrane traps to address specific room modes that broadband porous treatment can’t fully control. For most home studios, they come after measurement data reveals a severe mode that thicker porous treatment can’t flatten.
How Do Active Bass Traps Work?

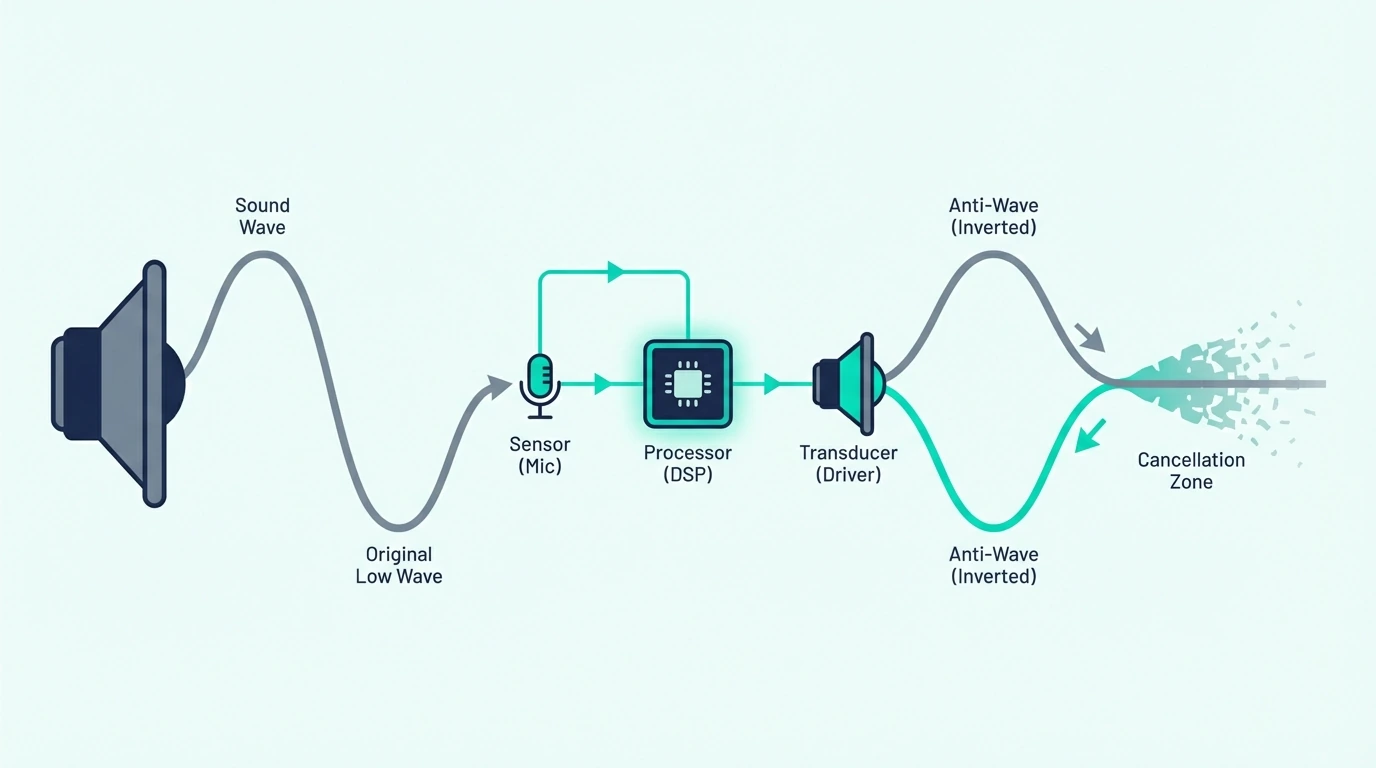

Active bass traps use electronics — microphones, processors, and speakers — to cancel low-frequency energy in real time. A microphone detects the bass buildup in a corner, a DSP processor calculates the inverse waveform, and a speaker outputs the cancellation signal.
The concept is identical to noise-cancelling headphones, scaled up to room acoustics. Active traps cancel the bass at the spot their microphone measures.
The downsides are complexity (they require calibration and power) and the fact that they only cancel bass at a specific zone rather than treating the entire room.
For bass traps in a home studio, passive porous absorbers come first. Active traps are a finishing tool, not a starting point.

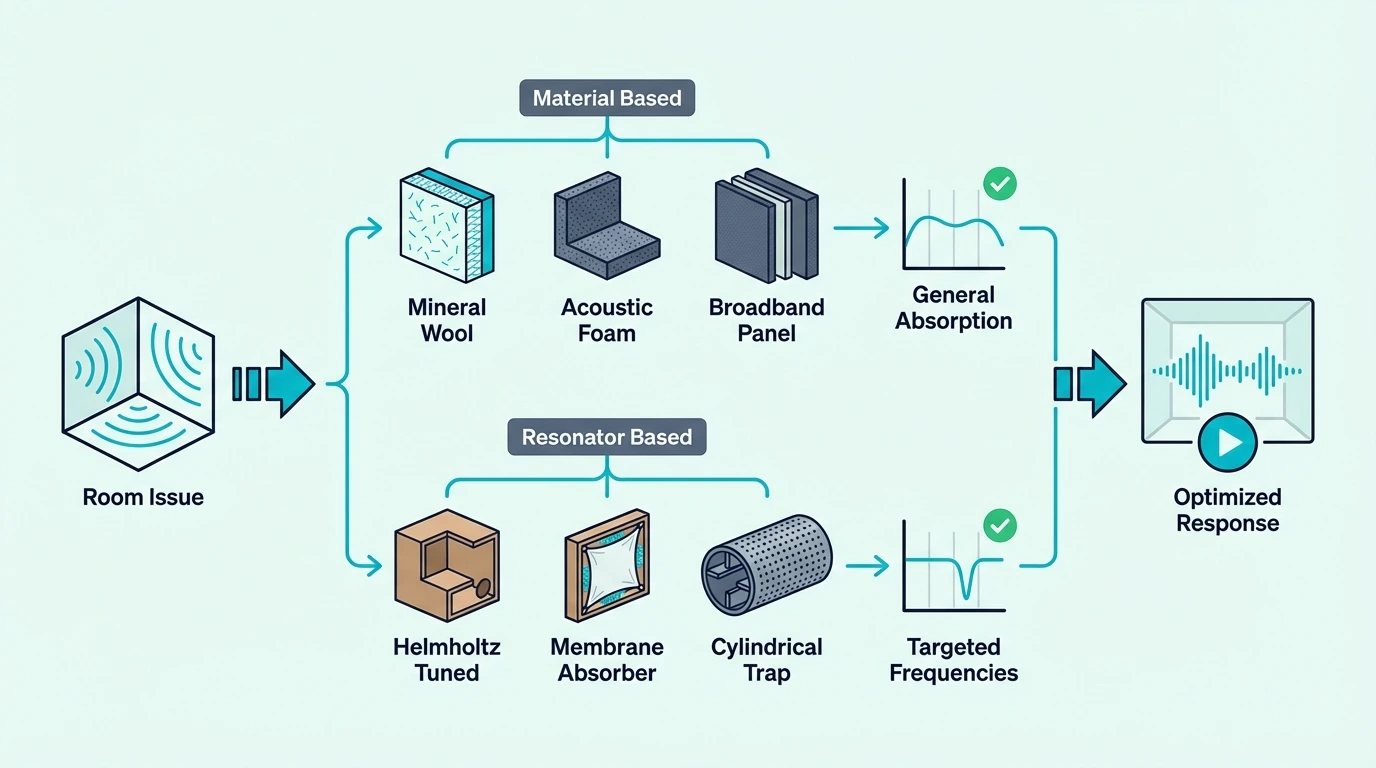

Which Type Of Bass Trap Should You Choose?
The right type depends on two factors: your room’s specific problems and how much space you can dedicate to treatment.
Start with porous absorbers if you haven’t treated your room yet. Prebuilt corner panels and DIY mineral-wool builds use the same boards, and 4-inch fiberglass or mineral wool boards carry their makers’ low-frequency figures: Owens Corning lists 4-inch unfaced 703 at 0.56 at 125 Hz, while for foam Auralex says only that thicker acoustic foam is better at absorbing low frequency sounds.
Add resonant absorbers only after measuring your room with porous treatment installed. If a specific frequency still shows a severe peak in the measurement, a Helmholtz resonator or membrane trap tuned to that frequency targets it.
Consider active traps only if you’re building a professional mastering or broadcast room. They are a tool for those rooms, not for home studios, project studios and home theaters.
Porous absorbers in your room’s corners come first: Auralex’s home-studio guide makes bass traps in all of the corners the first step for any small room. Proper placement comes before trap type.
The Bottom Line
Three types of bass traps exist, porous absorbers, resonant absorbers and active traps, and each serves a distinct role in acoustic treatment. Porous absorbers handle broadband bass problems, resonant absorbers target specific stubborn frequencies, and active traps cancel bass electronically.
For most rooms where bass traps are necessary, start with 4-inch porous absorbers in the corners. Measure after installation, and only add resonant or active treatment if your own measurements show specific problems that broadband absorption can’t solve.
Frequently Asked Questions
What are the different types of bass traps?
The three main types are porous absorbers (fiberglass, mineral wool, foam — broadband absorption), resonant absorbers (Helmholtz resonators and membrane traps — tuned to specific frequencies), and active bass traps (electronic systems that cancel bass using inverse waveforms).
What is the best shape for a bass trap?
Triangular wedges that fit into corners put the material where Auralex’s home-studio guide says low frequencies build up, especially in corners of the room. Superchunk configurations stack triangles to fill the entire corner from floor to ceiling.
How much of a difference do bass traps make?
Bass traps work on the low-frequency buildup that Auralex’s home-studio guide calls one of the most common problems in small rooms. How much they change your room shows in a before-and-after REW measurement at the listening position.
How thick should bass traps be?
For porous absorbers, the makers’ sheets give the figures by thickness: Owens Corning lists its unfaced 703 board at 0.15 at 125 Hz at 2 inches, 0.34 at 3 inches and 0.56 at 4 inches, and ROCKWOOL its Comfortboard 80 at 0.37 at 2 inches and 0.84 at 3 inches. A superchunk fills the whole corner. How thick bass traps should be goes through the options.
