For most wall panels, aim for about 3-6 lb/ft³ density with the right thickness.
Best density for acoustic panels depends on panel thickness and the problem you’re hearing.
Pick the wrong density and you’ll either under-treat the low-mids (boxy, muddy rooms) or buy boards that feel “pro” but don’t absorb better.
Pick the right density and your panels soak up reflections efficiently without wasting space or effort.
The rest of this guide covers what density means in practice, which ranges work for wall panels versus bass traps, and when extra density stops helping. You’ll know exactly which lb/ft³ number to target for your room.
Step toward 6-8 lb/ft³ when you’re building bass traps or you need more low-frequency control in corners.
The descriptions come from the makers’ manuals and spec pages.
What Is Acoustic Panel Density?
Acoustic panel density measures how much material is packed into a given volume—expressed as pounds per cubic foot (lb/ft³ or pcf). A 3 lb/ft³ panel contains three pounds of material in every cubic foot of volume.
This measurement tells you more about acoustic performance than almost any other specification. Density determines how sound waves interact with the material, which frequencies get absorbed, and how well the panel converts sound energy into heat.
If you’re also weighing panel thickness, the 1-inch vs 2-inch acoustic panels guide shows how thickness and density work together.
Think of it like a coffee filter: a loose, thin filter lets liquid (and sound) pass through quickly with minimal absorption.
A dense, packed filter slows everything down and traps more particles. Acoustic materials work similarly—denser materials slow sound waves down and absorb more energy.
Why Does Density Matter for Sound Absorption?
Density controls which frequencies your panels absorb — and by how much. Three factors shape the recommendation: how friction converts sound to heat, why bass needs more density than treble, and where diminishing returns set in.

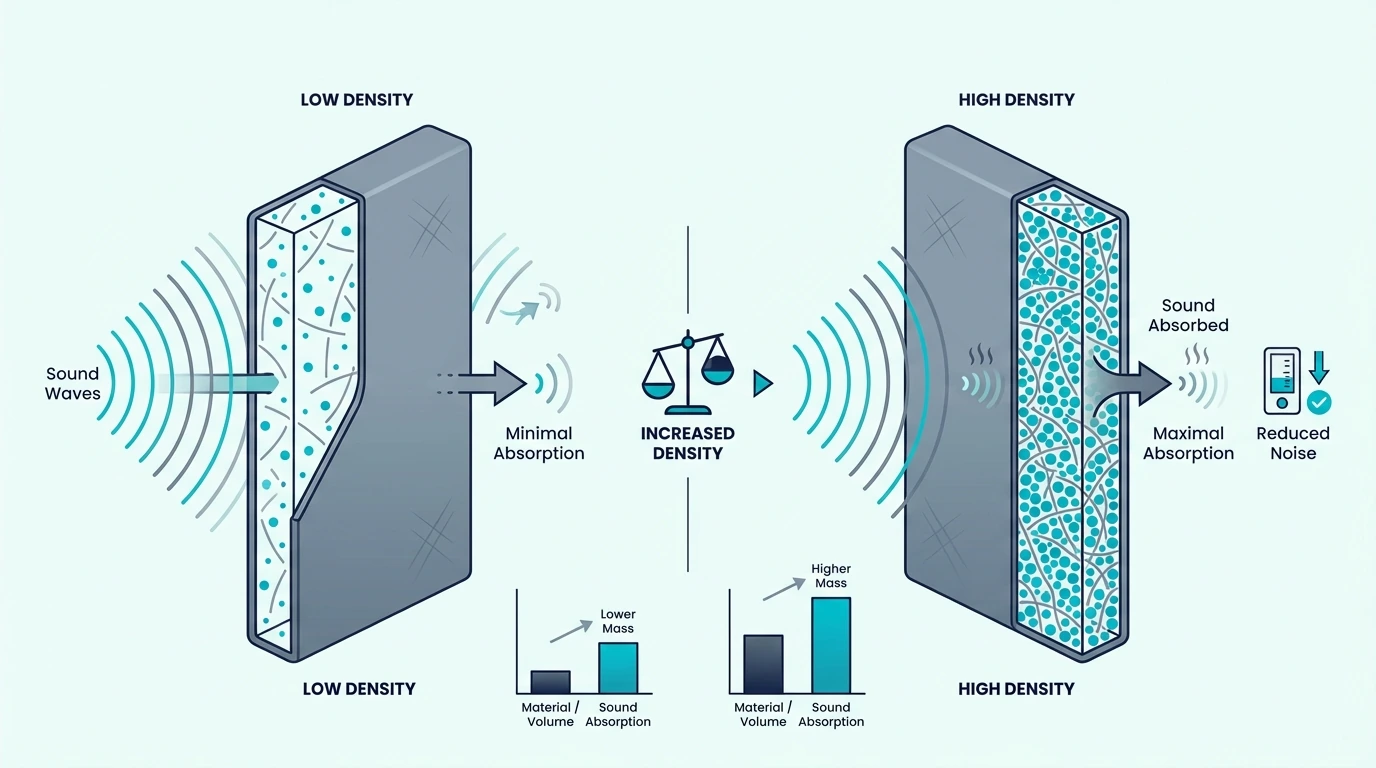

How Density Affects Absorption
Sound absorption happens when air movement through fibrous material creates friction. Denser materials have more fibers per volume, creating more friction opportunities as sound waves pass through.
A practical way to understand this: blow air through a thin t-shirt versus a thick winter coat.
The coat provides more resistance because it has more material packed into each inch. Sound behaves the same way—more density equals more resistance equals more absorption.
Lower frequencies require more material interaction to absorb effectively. Bass waves have more energy and longer wavelengths, so they need denser materials (or thicker panels) to lose enough energy before passing through.
The Frequency Connection
Low frequencies are where density matters most. Bass waves need higher density to lose energy before passing through.
In ROCKWOOL’s 2-inch figures, 250 Hz absorption is 0.69 at 2.5 and 4 lb/ft³, 0.75 at 6 lb/ft³ and 0.82 at 8 lb/ft³, while all four reach 0.99 or more at 2000 Hz.
High frequencies absorb easily regardless of density—even lightweight materials catch them. The density question primarily concerns mid and low frequency performance.
The air gap guide explains another way to improve low-frequency absorption without changing density.
Air gaps help lower density materials perform better at bass frequencies by positioning them optimally. But starting with 3–6 lb/ft³ material makes the whole system more predictable.

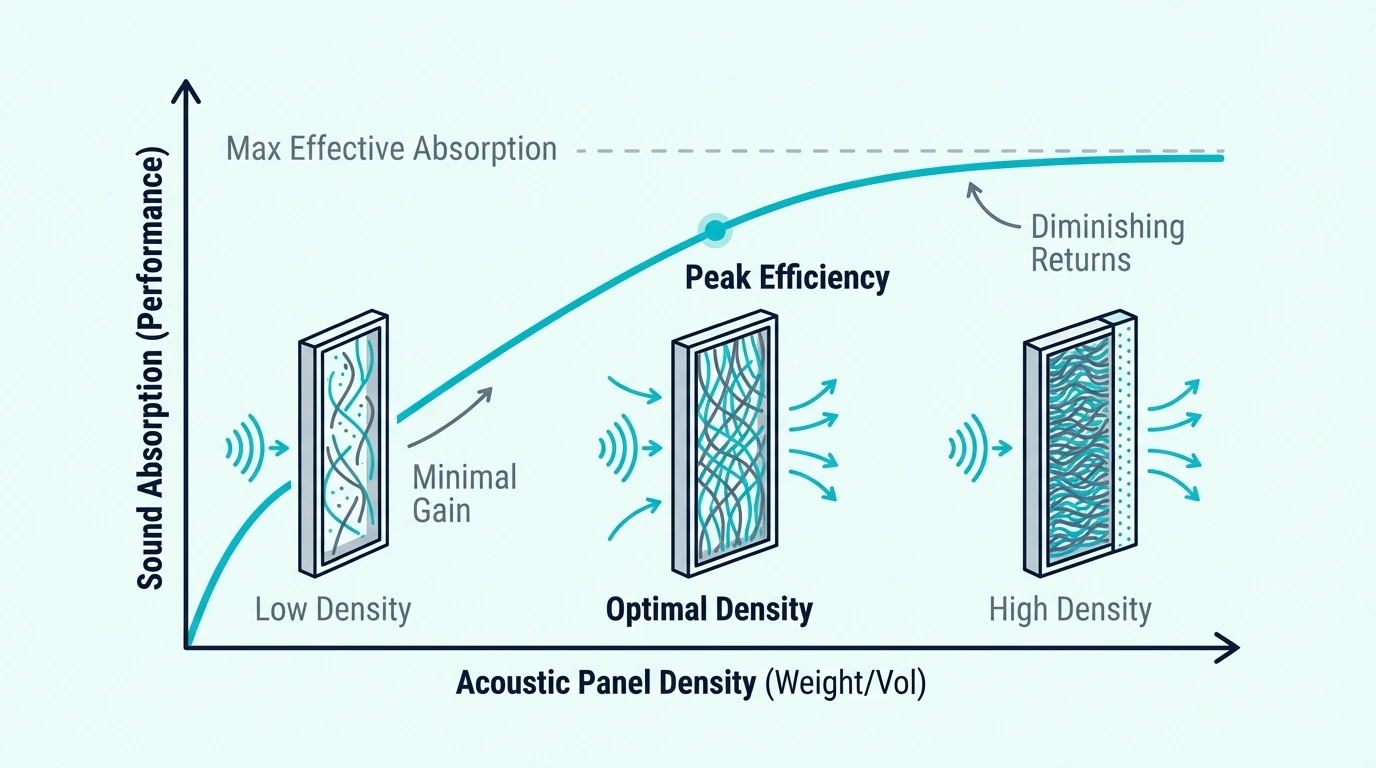

Diminishing Returns
One important caveat: density improvements aren’t linear.
At 125 Hz, ROCKWOOL’s 2-inch batt and boards climb only from 0.22 at 2.5 lb/ft³ to 0.37 at 8 lb/ft³, while doubling its Rockboard 40 from 2 to 4 inches lifts it from 0.25 to 0.93, and the same 2-inch figures set against fiberglass boards put Knauf’s 3 lb/ft³ board at 0.33, ahead of Rockboard 40 and 60.
ATS, a panel maker, says higher densities absorb sound only slightly better.

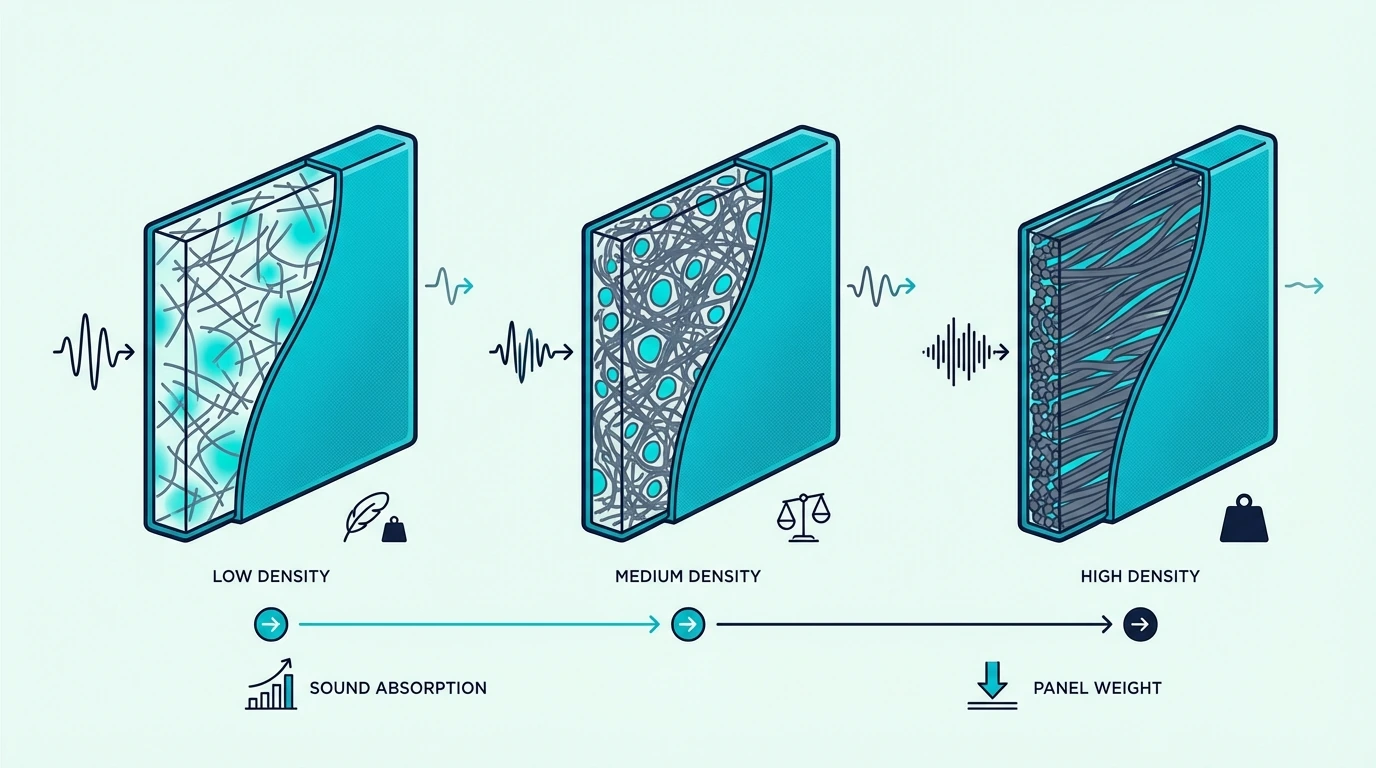

What Density for Fiberglass Panels?
Fiberglass is the most common acoustic panel core material. Two products cover nearly every application.
Owens Corning 703 (3 lb/ft³)
OC 703 is Owens Corning’s 3 lb/ft³ board. Its data sheet rates the unfaced 2-inch board at 0.71 at 250 Hz and 1.14 at 500 Hz, and the 1-inch board at 0.26 and 0.63.
For most home studios, vocal booths, and general room treatment, 703 delivers the performance you need. Owens Corning’s data sheet rates an unfaced 2-inch 703 board at NRC 1.00.
The acoustic panel NRC rating guide explains what that number tells you and what it leaves out.
If you’re buying pre-made panels and the seller doesn’t list density, that’s normal. Use thickness, core type (fiberglass/mineral wool/PET), and rigidity as your proxy instead of chasing an exact lb/ft³ number.
Owens Corning 705 (6 lb/ft³)
OC 705 doubles the density of 703, providing superior bass absorption. It’s the go-to material for bass traps, corner treatment, and studios where low-end accuracy matters.
Owens Corning’s sheet rates an unfaced 2-inch 705 board at 0.18 at 125 Hz and 0.86 at 250 Hz, against 0.15 and 0.71 for 703 at the same thickness. The trade-off is weight: at twice the density, a 705 board weighs twice as much as a 703 board of the same size.
Which Fiberglass Density to Choose?
For wall panels at first reflection points: 703 (3 lb/ft³) works perfectly. You’re targeting mid and high frequencies where flutter echo and voice reflections occur.
For bass traps and corner treatment: 705 (6 lb/ft³) is the denser step. Bass problems require denser materials to control.
For ceiling clouds: 703 handles the job. Ceiling reflections are primarily mid-high frequency.
For a room kit that covers wall panels and first reflections in one order, the Acoustic Panels Room Kit (Large 4-Pack) bundles 703-equivalent fiberglass panels.
Acoustic Panels Room Kit (Large 4-Pack)

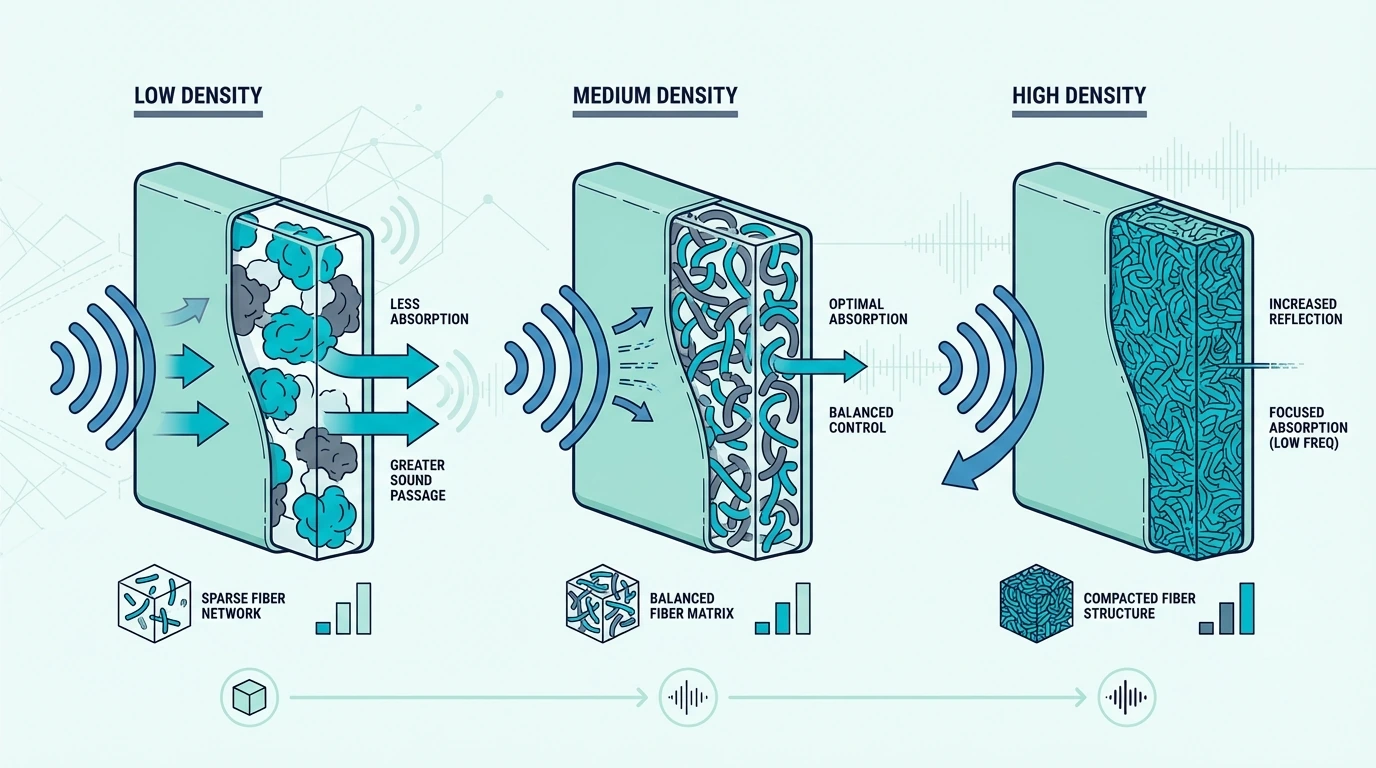

What Density for Rockwool Panels?
Rockwool offers different density options and is increasingly popular for DIY acoustic panel builds. Three products cover the range: Safe’n’Sound from home improvement stores, ComfortBoard for bass traps, and a direct comparison to fiberglass at equivalent densities.
Rockwool Safe’n’Sound
ROCKWOOL gives Safe’n’Sound a nominal density of 2.5 lb/ft³, close to OC 703’s 3 lb/ft³. It’s marketed for soundproofing (blocking sound between walls) but works acceptably for absorption panels too.
Its advantage is widespread availability at home improvement stores.
Rockwool ComfortBoard
ComfortBoard 80 runs 8 lb/ft³—denser than OC 705. At 2 inches, ROCKWOOL rates it 0.37 at 125 Hz and 0.82 at 250 Hz.
For DIY bass traps, ComfortBoard offers a convenient option that doesn’t require specialized sourcing. The DIY panel materials guide covers working with these materials.
Rockwool vs Fiberglass Density
At equivalent densities, rockwool and fiberglass perform similarly. The choice usually depends on availability and personal preference for working with the material.
At 2 inches, ROCKWOOL rates its Rockboard 60 at an NRC of 1.00, as Owens Corning rates its 703.

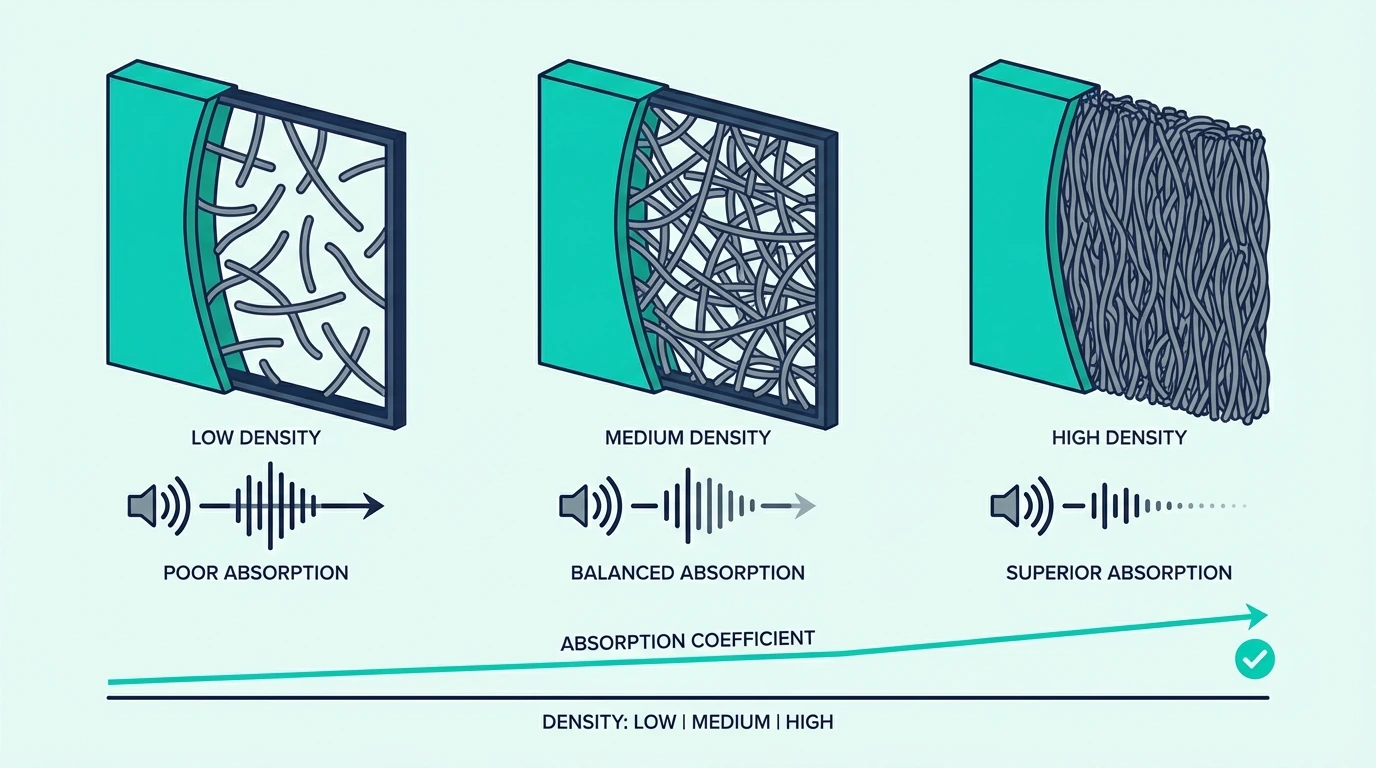

How Does Density Affect Panel Performance?
Density translates directly to absorption numbers. Four subsections below cover bass absorption, mid-high performance, the trade-off list, and why thickness sometimes matters more than density.
Low-Frequency Absorption
At 125Hz (low bass), ROCKWOOL’s data sheets give these absorption coefficients for its 2-inch batt and boards:
- AFB, 2.5 lb/ft³ (nominal): 0.22
- Rockboard 40, 4 lb/ft³: 0.25
- Rockboard 60, 6 lb/ft³: 0.28
- Comfortboard 80, 8 lb/ft³: 0.37
All four stay below 0.40 at 125 Hz, while ROCKWOOL rates its 4-inch Rockboard 40 at 0.93. At this frequency, thickness moves the number far more than density does.
Mid and High Frequency Performance
At 1000Hz (mid frequency), density matters less, as the same data sheets show:
- AFB, 2.5 lb/ft³ (nominal): 1.05
- Rockboard 40, 4 lb/ft³: 1.12
- Rockboard 60, 6 lb/ft³: 1.08
Even lightweight materials catch mid-high frequencies effectively. If your problem is speech clarity or flutter echo rather than boomy bass, density optimization provides marginal benefit.
The Trade-Offs
Higher density means:
- Better bass absorption
- Heavier panels (harder to mount)
- Stiffer, harder to cut
The right density balances these factors against the frequencies you need to control.
Density vs Thickness: Which Matters More?
If you’re stuck choosing between a denser 2-inch panel and a thicker 4-inch panel, thickness usually wins for low-frequency absorption, and the same tables settle how thick a bass trap should be.
Density helps, but it can’t replace depth. A thicker absorber gives the wave more material (and more distance) to lose energy.
That’s why a 4-inch panel at 3-4 lb/ft³ can outperform a 2-inch panel at 6 lb/ft³ in the low-mids where rooms sound boxy.
If you’re deciding between sizes, the 2-inch vs 4-inch acoustic panels guide covers the practical trade-offs.
Is Higher Density Always Better?
The intuitive answer — “more is better” — isn’t accurate. Two scenarios separate when extra density helps from when it doesn’t.
When Higher Density Helps
Bass-heavy music production benefits from 6+ lb/ft³ panels. Kick drums, bass guitars, and synthesizers create problematic low frequencies that need dense treatment.
Home theaters with subwoofers need denser corner treatment.
When Standard Density Suffices
For podcasting and voice work, ROCKWOOL’s 1000 Hz figures barely move with density.
General echo reduction and reverb control target mid-high frequencies. Standard 3–4 lb/ft³ materials handle these problems without high-density boards.
Where to Use the Denser Boards
Prioritize density where it matters — corner bass traps — and use standard density elsewhere. Even there, a thicker board does more than a denser one, as ROCKWOOL’s 125 Hz figures show.
What About Foam Density?
Acoustic foam operates on a different density scale than fiberglass or rockwool. Three aspects set it apart: why the material itself limits performance, where those limits show up, and the one use case where foam density is enough.
For real-world panel performance data, the best fiberglass acoustic panels guide reviews options with verified NRC ratings.
Why Foam Is Different
Acoustic foam typically runs 1-2 lb/ft³ — far lighter than even 3 lb/ft³ fiberglass like OC 703. The open-cell structure provides some absorption, but the low density limits effectiveness to high frequencies only.

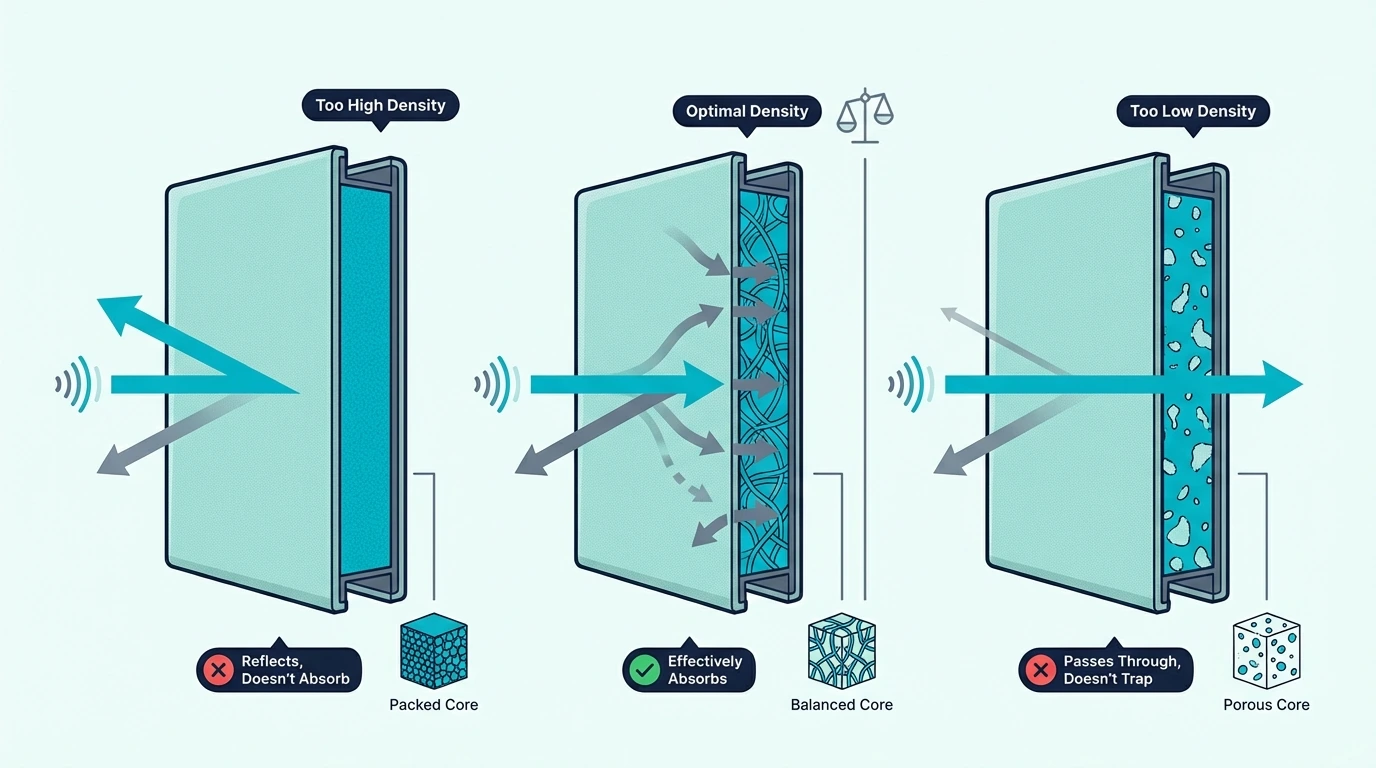

Foam Limitations
Even “high-density” foam at 2 lb/ft³ can’t match 3 lb/ft³ fiberglass for mid-frequency absorption. The material properties simply don’t allow equivalent performance regardless of density.
When Foam Works
For voice recording behind a microphone, foam’s high-frequency absorption reduces sibilance and air reflections acceptably. It’s a solution for targeted, limited treatment.
For full room treatment or any bass-related goals, foam — at any density — underperforms fiberglass or rockwool panels.

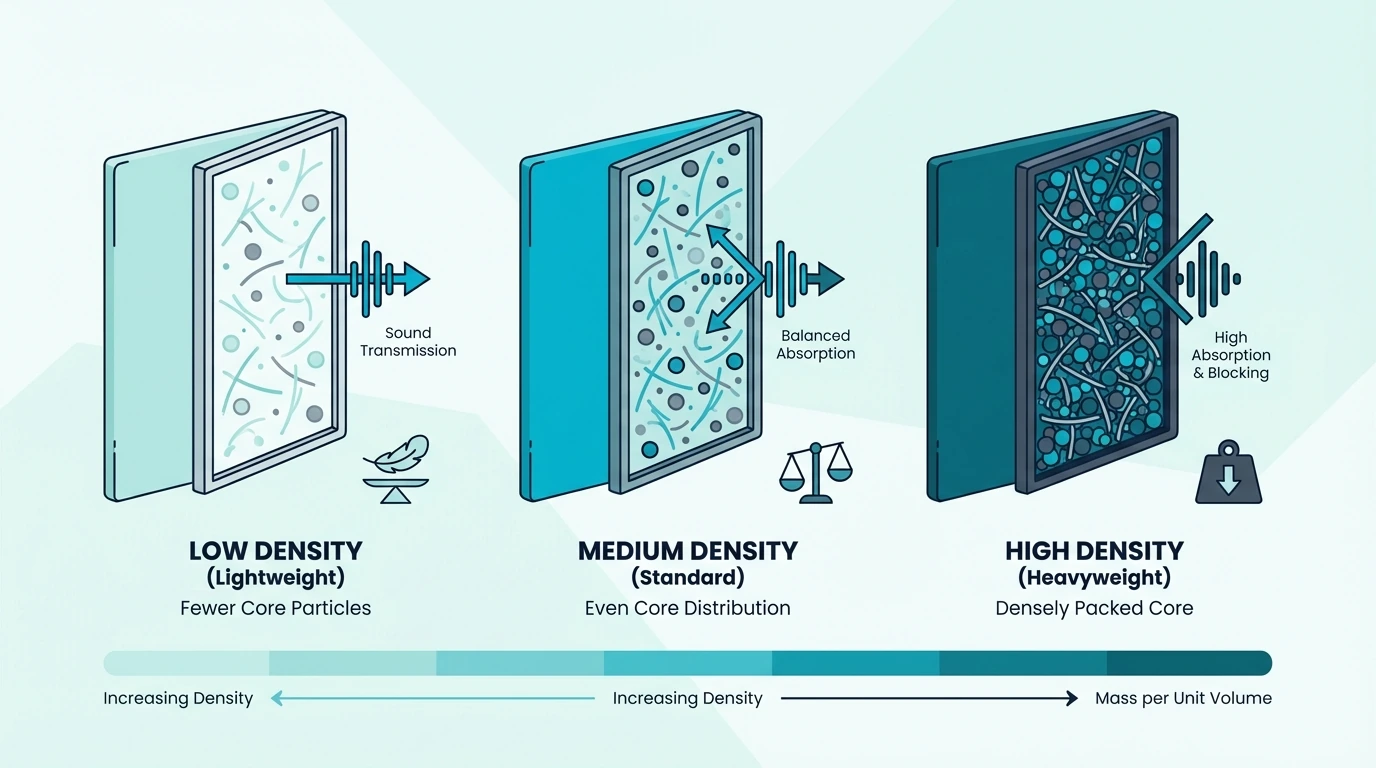

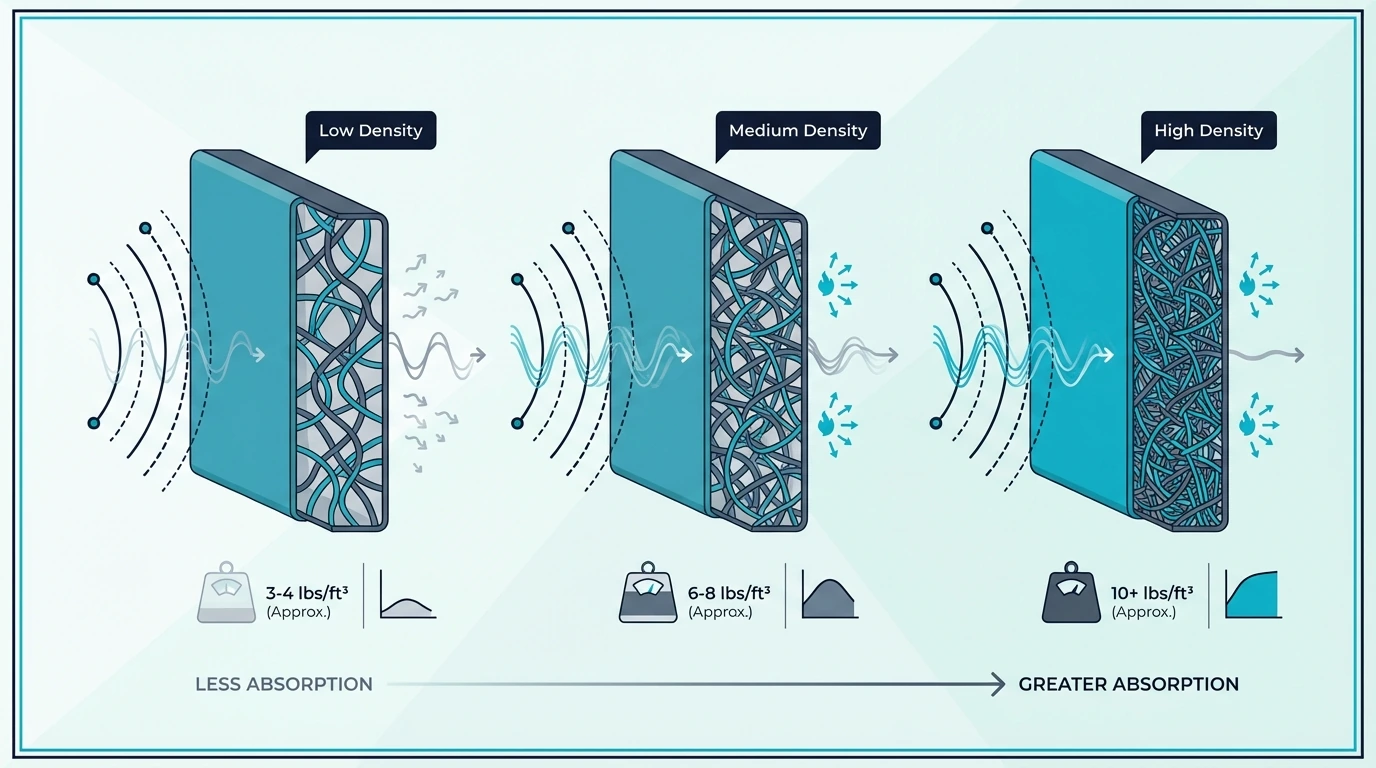

How Do Different Materials Compare on Density?
| Material | Density (lb/ft³) | NRC Rating | Bass Absorption | Best For |
|---|---|---|---|---|
| OC 703 Fiberglass | 3.0 | 1.00 (2-inch) | Moderate | General panels |
| OC 705 Fiberglass | 6.0 | 1.05 (2-inch) | Good | Bass traps |
| Rockwool Safe’n’Sound | 2.5 (nominal) | 1.10 (3-inch) | Moderate | DIY panels |
| Rockwool ComfortBoard 80 | 8.0 | 0.95 (2-inch) | Excellent | Bass traps |
| Acoustic Foam | 1-2 | 0.30-0.60 | Poor | Voice only |
| Polyester Fiber | 2-4 | 0.70-0.85 | Fair | Office and bedroom walls |
The biggest jump in the table sits between acoustic foam (1–2 lb/ft³) and OC 703 fiberglass (3 lb/ft³). That single step nearly doubles the NRC rating and opens up mid-frequency absorption that foam can’t reach at any thickness.
Above 6 lb/ft³, density still adds a little: ROCKWOOL rates its 2-inch Comfortboard 80 at 0.37 at 125 Hz, against 0.28 for its 6 lb/ft³ Rockboard 60.
Polyester fiber lands in between: lighter than fiberglass but weaker on bass. It’s a reasonable choice for wall panels in offices or bedrooms where low-frequency control isn’t the priority.
Conclusion
Most rooms need exactly two density tiers — and nothing else. Use 3–4 lb/ft³ fiberglass or rockwool for wall panels and ceiling clouds, then step up to 6–8 lb/ft³ for corner bass traps.
ROCKWOOL’s figures support the lighter tier for walls, since density barely moves the number at 1000 Hz, and at 125 Hz they favor a thicker corner board over a denser one.
The one exception: if your only goal is taming voice reflections or flutter echo above 200 Hz, a single tier of 3–4 lb/ft³ handles it. You can skip dense corner treatment entirely.
Once you’ve locked in a density target, the panel placement guide covers positioning for maximum effect, and the panel count guide helps calculate total coverage before ordering. The best acoustic panels guide lists pre-made options with their makers’ published lab figures, and the hanging guide matches hardware to your wall type.
Frequently Asked Questions
What Density Is Optimal for Acoustic Panels?
The best-performing density range is 3–6 lb/ft³ for most applications. Use 3-4 lb/ft³ for general wall and ceiling treatment; use 6-8 lb/ft³ for bass traps and corner treatment.
There’s no single “correct” density—the right choice depends on which frequencies you’re targeting.
Voice frequencies absorb well at 3 lb/ft³.
Bass frequencies benefit from 6+ lb/ft³.
Is Higher Density Always Better for Absorption?
No—higher density provides diminishing returns beyond 6-8 lb/ft³ for most applications. The improvement from 3 to 6 lb/ft³ is meaningful; the improvement from 8 to 12 lb/ft³ is marginal.
Higher density also means heavier panels and more difficult installation. Match density to your acoustic goals rather than assuming more is always better.
How Does Foam Density Compare to Fiberglass?
Foam density doesn’t compare directly—the materials work differently. High-density foam at 2 lb/ft³ performs worse than 3 lb/ft³ fiberglass for mid and low frequencies.
Auralex says its 1-inch Studiofoam Wedges work most effectively on mid to high frequencies, and it rates its 2-inch Wedges at an NRC of 0.75. For full-range absorption, fiberglass or rockwool at 3+ lb/ft³ outperforms foam regardless of foam density specifications.
Where Can I Find Materials at Specific Densities?
Acoustic specialty suppliers stock OC 703, 705, and equivalent products with exact density specifications. Industrial insulation distributors often carry these materials too.
Home improvement stores carry Rockwool products, though density consistency may vary. For DIY projects, the DIY panel materials guide covers sourcing options and what specifications to request.
